DTC P0340-886: Camshaft Position Sensor "A" Circuit: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
4. Check if DTCs are output.

   Result

   Result	Proceed to
   DTC P0340-886 only is output.	A
   DTC P0343-747 is also output.	B

5. Turn the power switch off.

B → See step   7

A: Go to next step

1. Check the connector connections and contact pressure of the relevant terminals for the ECM connectors.

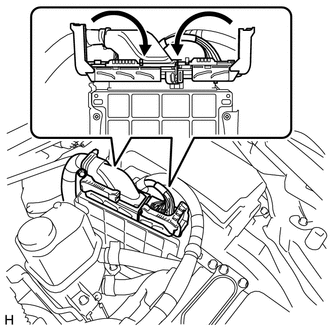

   Fig 1: Checking Connector Connection Condition (ECM Connector)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   The connectors are connected securely and there are no contact pressure problems.

NG → CONNECT SECURELY

OK: Go to next step

1. Check the connector connections and contact pressure of the relevant terminals for the power management control ECU connectors.
   Fig 2: Checking Connector Connection Condition (Power Management Control ECU)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   The connectors are connected securely and there are no contact pressure problems.

NG → CONNECT SECURELY

OK: Go to next step

1. Connect an oscilloscope between the power management control ECU terminals specified in the table below.
2. Turn the power switch on (READY).
3. Measure the waveform.
   Fig 3: Checking Power Management Control ECU With Waveform Reference

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Item	Content
   Terminal	A21-16 (GI) - L5-6 (E1)
   Equipment Setting	5 V/DIV., 20 ms./DIV.
   Condition	Power switch on (READY) with engine running

   TEXT IN ILLUSTRATION



   *a	Component with harness connected (Power Management Control ECU)

   Result

   Result	Proceed to
   Normal	A
   Waveform is flat, and is stuck on the +B side.	B
   Waveform is flat, and is stuck on the GND side.	C

B → See step   6

C → See step   7

A: Go to next step

Refer to CHECK FOR INTERMITTENT PROBLEMS

NG → REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

OK → See step   11

1. Check that the service plug grip is not installed.
   NOTE:

   After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair information because this may cause a malfunction.

2. Disconnect connector D28 from the ECM.
3. Disconnect connector A59 from the inverter with converter assembly.
4. Connect the cable to the negative (-) auxiliary battery terminal.
5. Turn the power switch on (IG).
6. Measure the voltage according to the value(s) in the table below.
   Fig 4: Checking Harness And Connector (Power Management Control ECU)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   D28-48 (G2O) - Body ground	Power switch on (IG)	11 to 14 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to ECM)

   NOTE:

   Turning the power switch on (IG) with the ECM connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

7. Turn the power switch off.
8. Disconnect the cable from the negative (-) auxiliary battery terminal.
9. Connect the inverter with converter assembly connector.
10. Connect the ECM connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   10

1. Check that the service plug grip is not installed.
   NOTE:

   After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair information because this may cause a malfunction.

2. Disconnect connector D28 from the ECM.
3. Disconnect connector A21 from the power management control ECU.
4. Disconnect connector A59 from the inverter with converter assembly.
5. Connect the cable to the negative (-) auxiliary battery terminal.
6. Turn the power switch on (IG).
7. Measure the voltage according to the value(s) in the table below.
   Fig 5: Check Harness And Connector (ECM - Power Management Control ECU, Inverter With Converter)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   D28-48 (G2O) or A21-16 (GI) - Body ground	Power switch on (IG)	Below 1 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to ECM)
   *b	Rear view of wire harness connector (to Power Management Control ECU)

   NOTE:

   Turning the power switch on (IG) with the inverter with converter assembly connector, power management control ECU connector and ECM connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

8. Turn the power switch off.
9. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   D28-48 (G2O) or A21-16 (GI)- Body ground	Power switch off	10 kΩ or higher

10. Disconnect the cable from the negative (-) auxiliary battery terminal.
11. Connect the ECM connector.
12. Connect the power management control ECU connector.
13. Connect the inverter with converter assembly connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect all the connectors from the power management control ECU.
2. Measure the resistance according to the value(s) in the table below.
   Fig 6: Checking Resistance Of Power Management Control ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   A21-16 (GI) - L5-6 (E1)	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Power Management Control ECU)

3. Connect the power management control ECU connectors.

NG → See step   11

OK: Go to next step

1. Check that the service plug grip is not installed.
   NOTE:

   After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair information because this may cause a malfunction.

2. Disconnect connector A59 from the inverter with converter assembly.
3. Measure the resistance according to the value(s) in the table below.
   Fig 7: Measuring Resistance Of Inverter With Converter Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   A59-29 (GI) - A59-28 (GND1)	Power switch off	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Inverter with Converter Assembly)

4. Connect the inverter with converter assembly connector.

NG → See step   12

OK → See step   10
