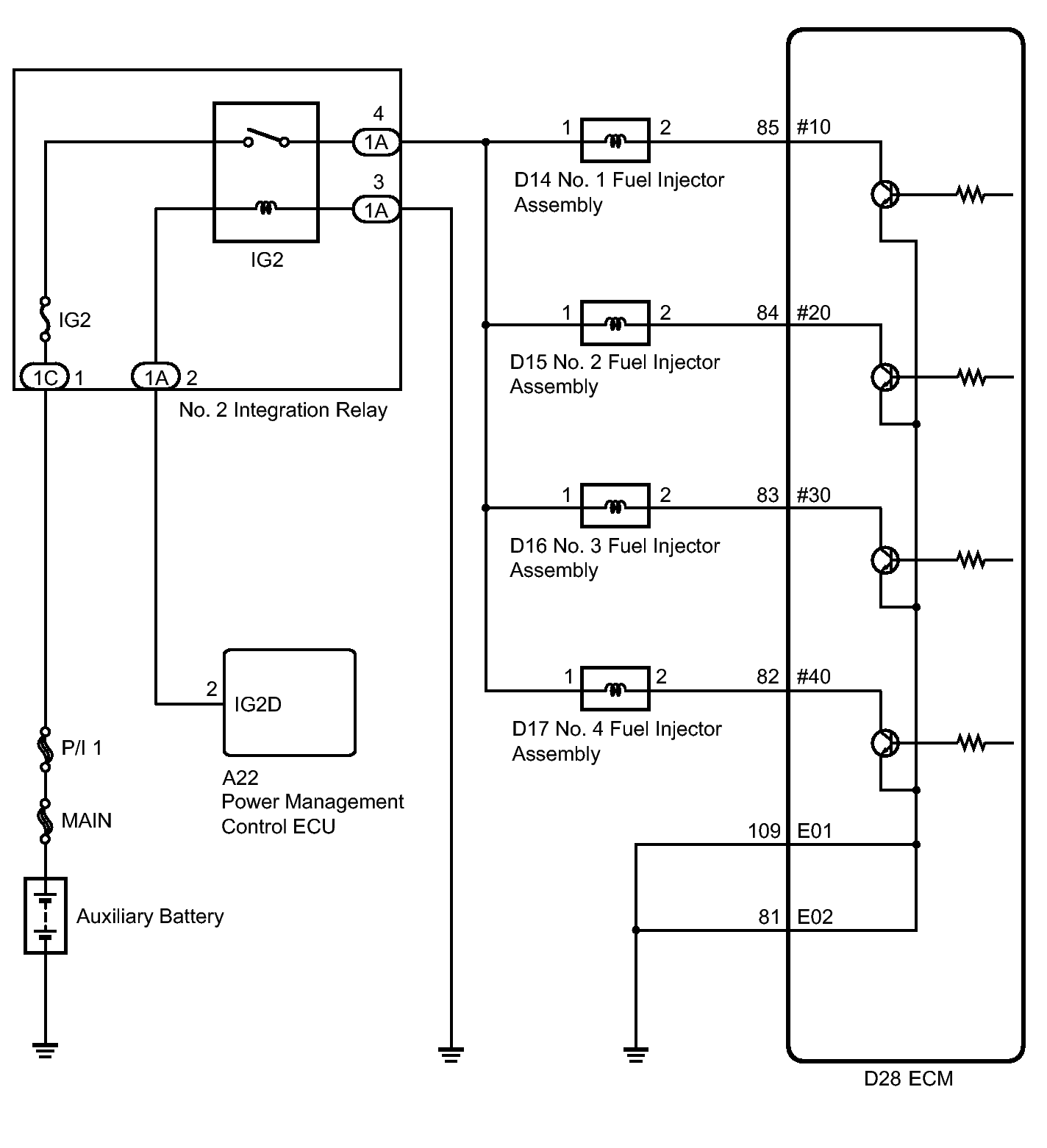

Home >> Toyota >> 2012 >> Prius V >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> Engine Control System [Diagnostic Codes & Circuit Tests] >> SFI System >> Circuit Tests >> Fuel Injector Circuit >> Wiring Diagram
