DTC P0351: Ignition Coil "A" Primary / Secondary Circuit; DTC P0352: Ignition Coil "B" Primary / Secondary Circuit; DTC P0353: Ignition Coil "C" Primary / Secondary Circuit; DTC P0354: Ignition Coil "D" Primary / Secondary Circuit: Wiring Diagram

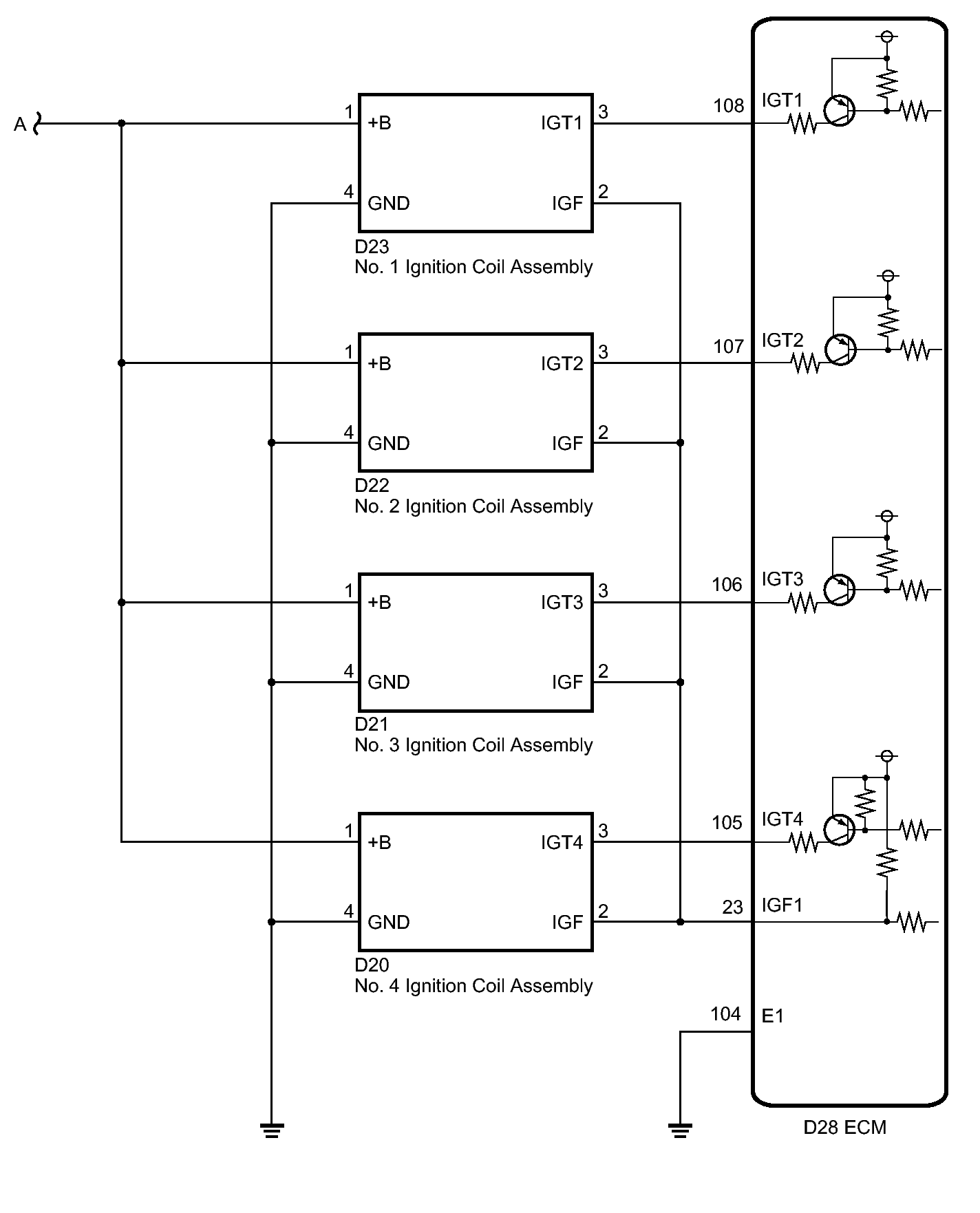

Fig 1: Ignition Coil Assembly Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Ignition Coil Assembly Circuit Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
