Repair and Diagnosis
>>
Body & Frame
>>
Exterior/Interior Trim
>>
Roof Sunshade System (Diagnostic Codes & Symptom Tests)
>>
Roof Sunshade System
>>
DTC B2341: Sensor (Motor) Failure; DTC B2344: Position Failure
>>
Wiring Diagram
DTC B2341: Sensor (Motor) Failure; DTC B2344: Position Failure: Wiring Diagram

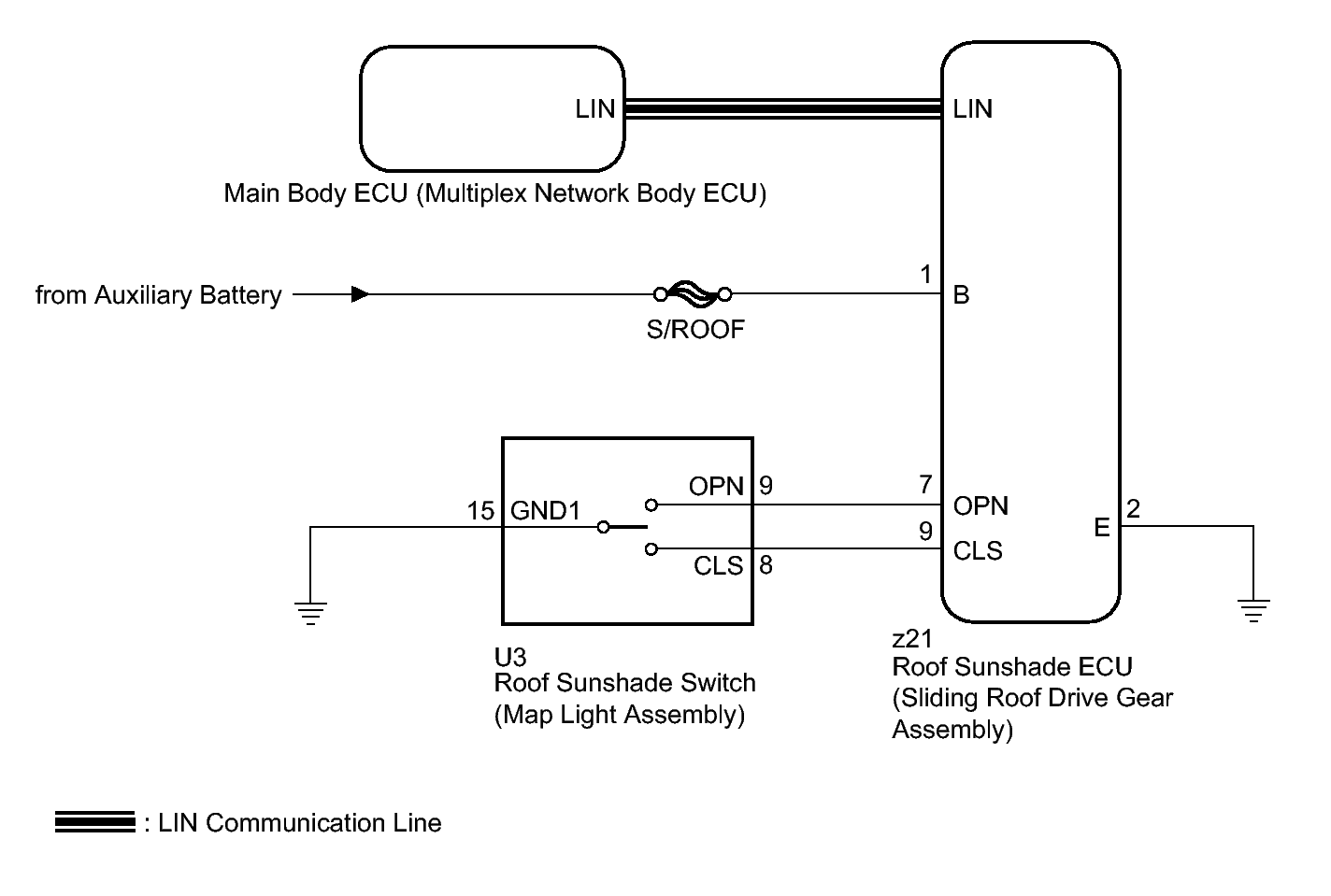

Fig 1: Roof Sunshade ECU Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
