Parts Location: Illustration

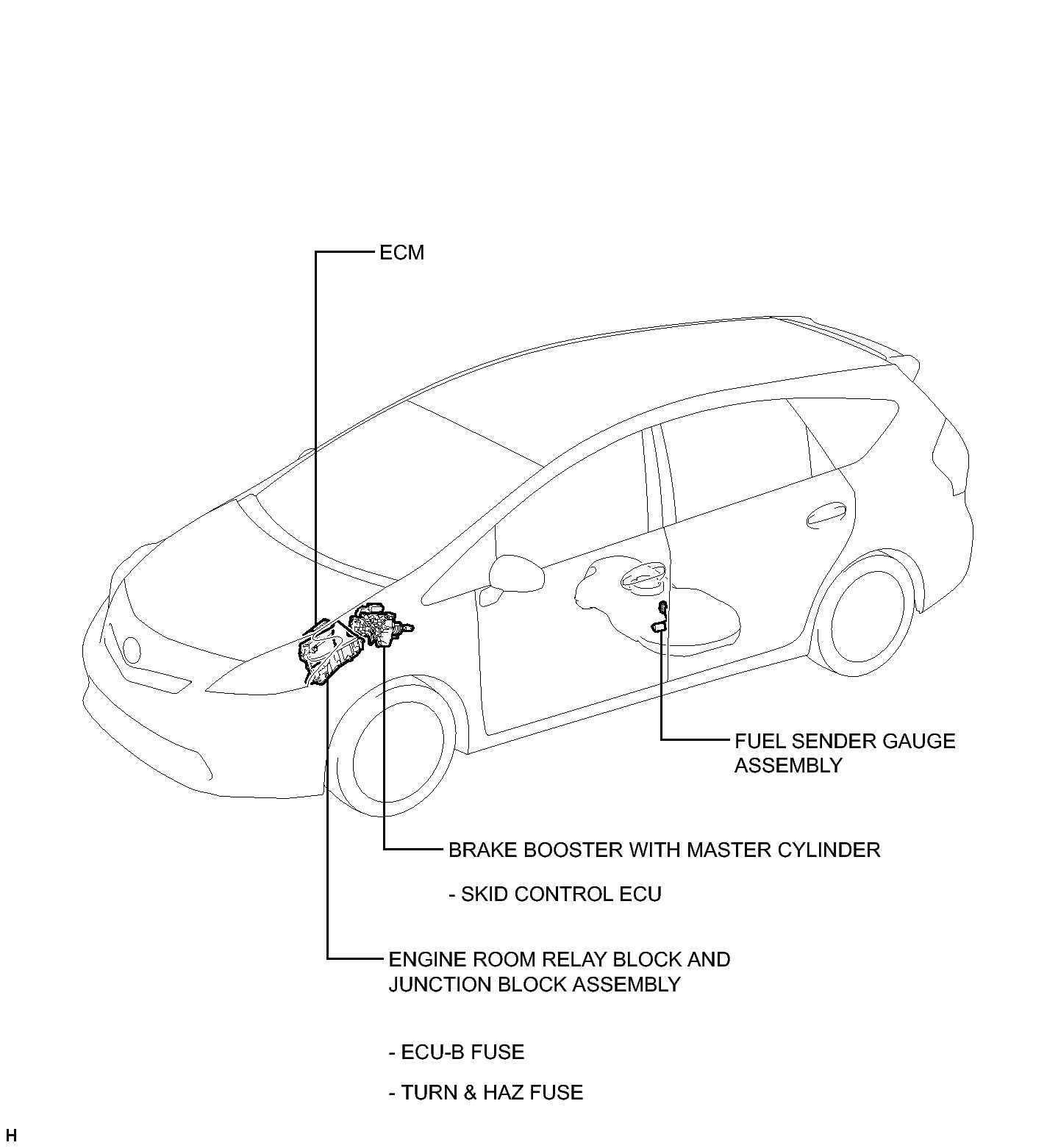

Fig 1: Meter / Gauge System Components Location (1 Of 4)
GTY340906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

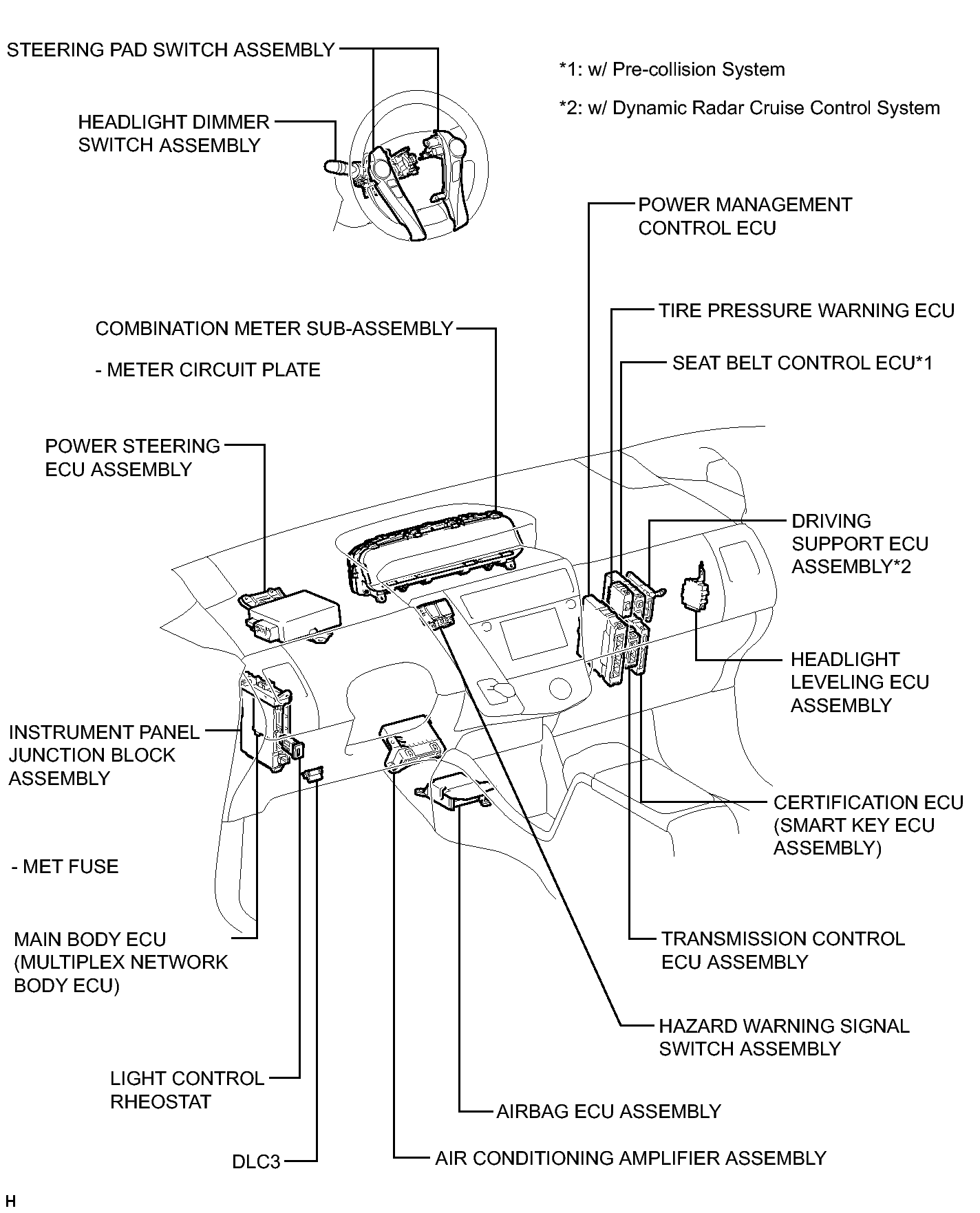

Fig 1: Meter / Gauge System Components Location (2 Of 4)
GTY335983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

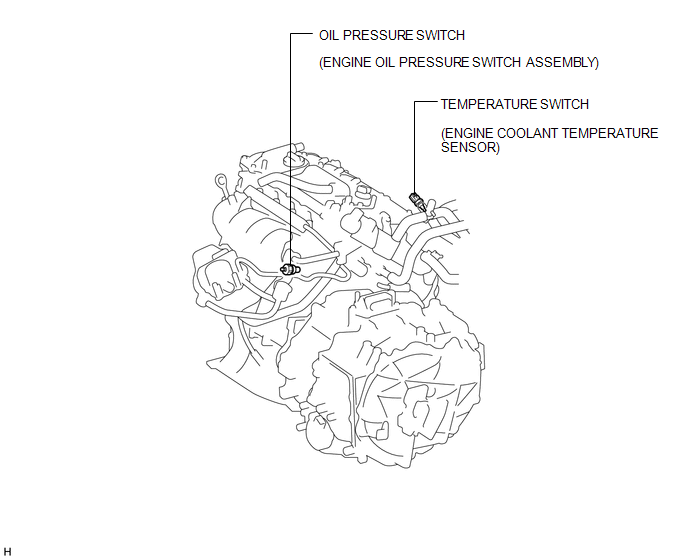

Fig 1: Meter / Gauge System Components Location (3 Of 4)
GTY336310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

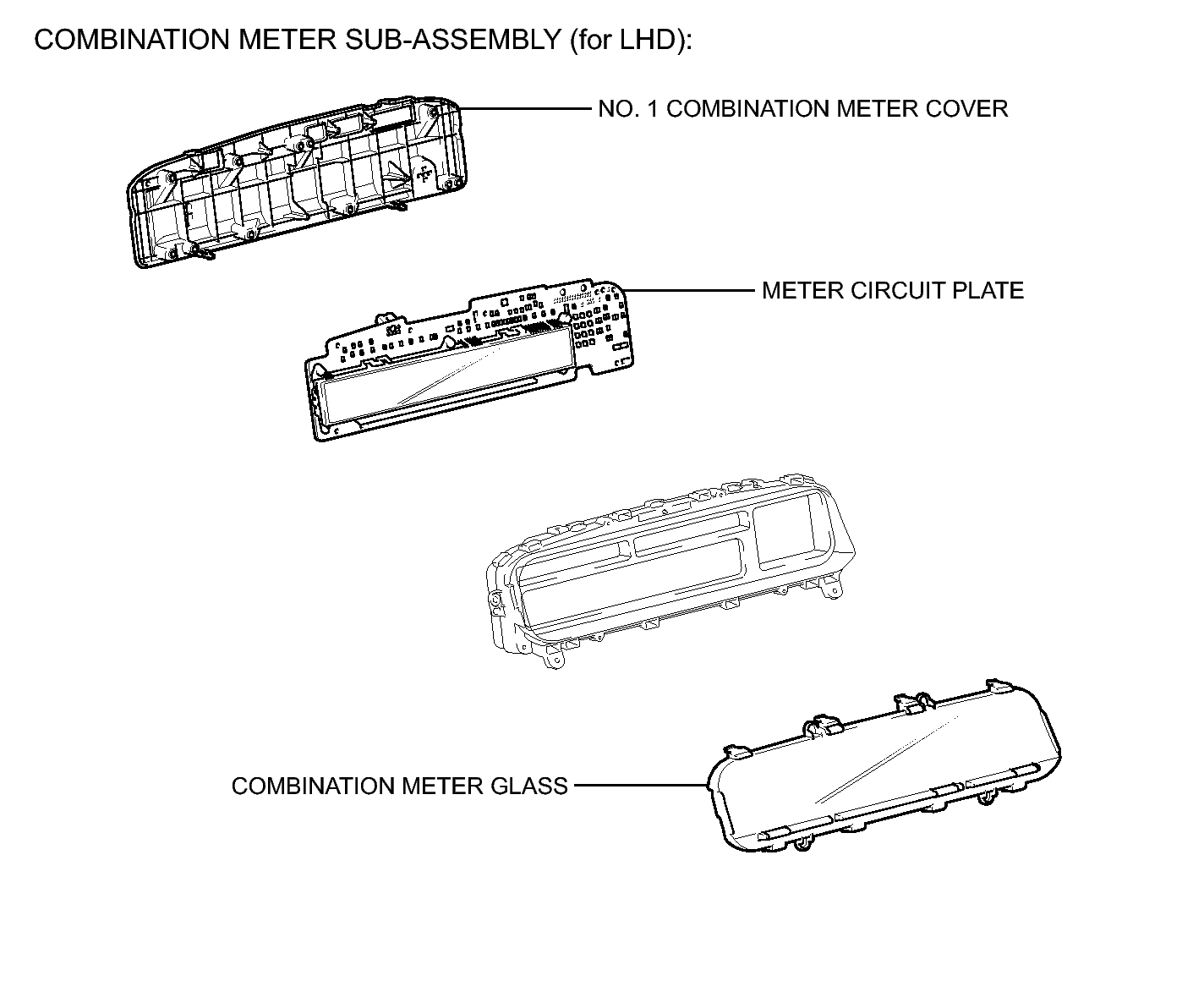

Fig 1: Meter / Gauge System Components Location (4 Of 4)
GTY324020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
