DTC B1503: Exhaust Heat Management Warning Detected: Wiring Diagram

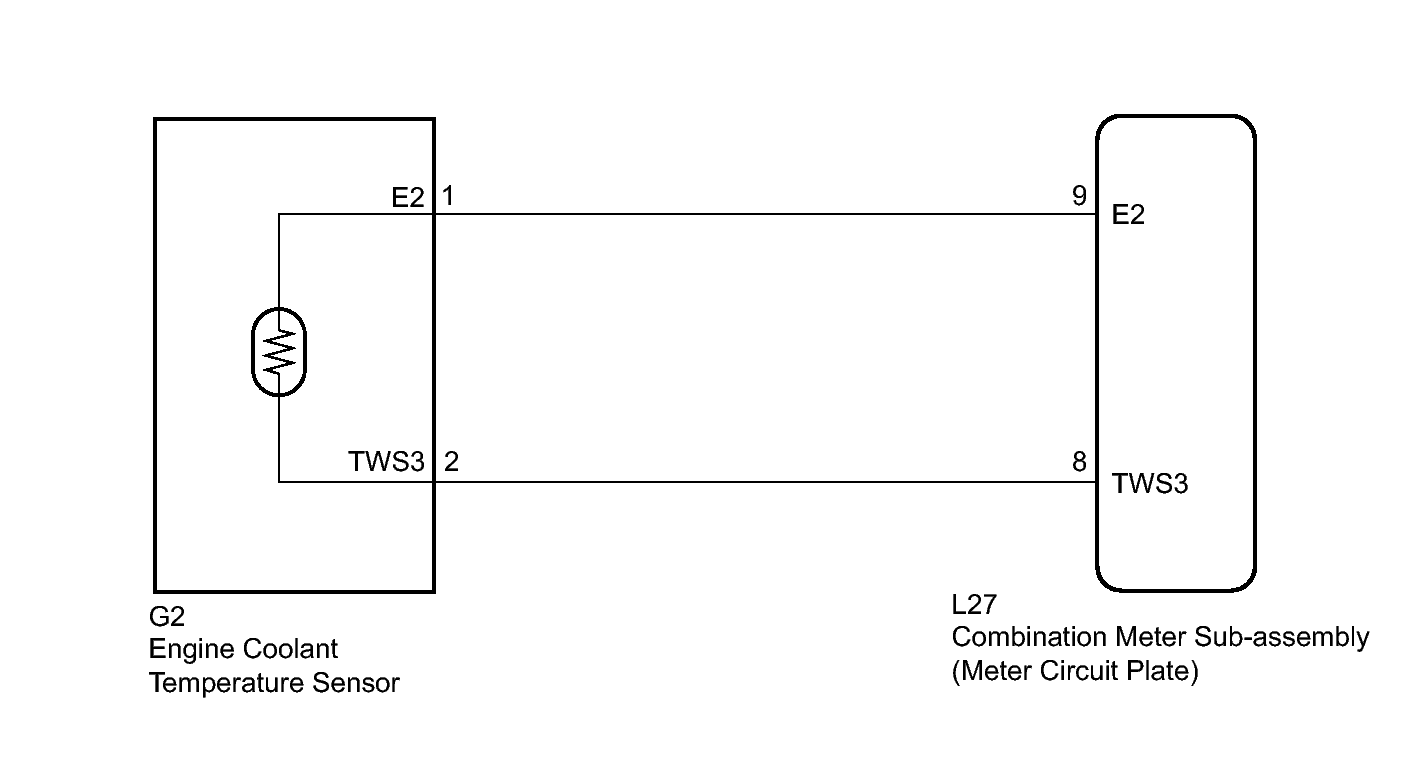

Fig 1: Engine Coolant Temperature Sensor (ECT) Circuit Wiring Diagram

GTY340687

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
