DTC B2430: LED Headlight LH Circuit Malfunction; DTC B2431: LED Headlight RH Circuit Malfunction: Wiring Diagram

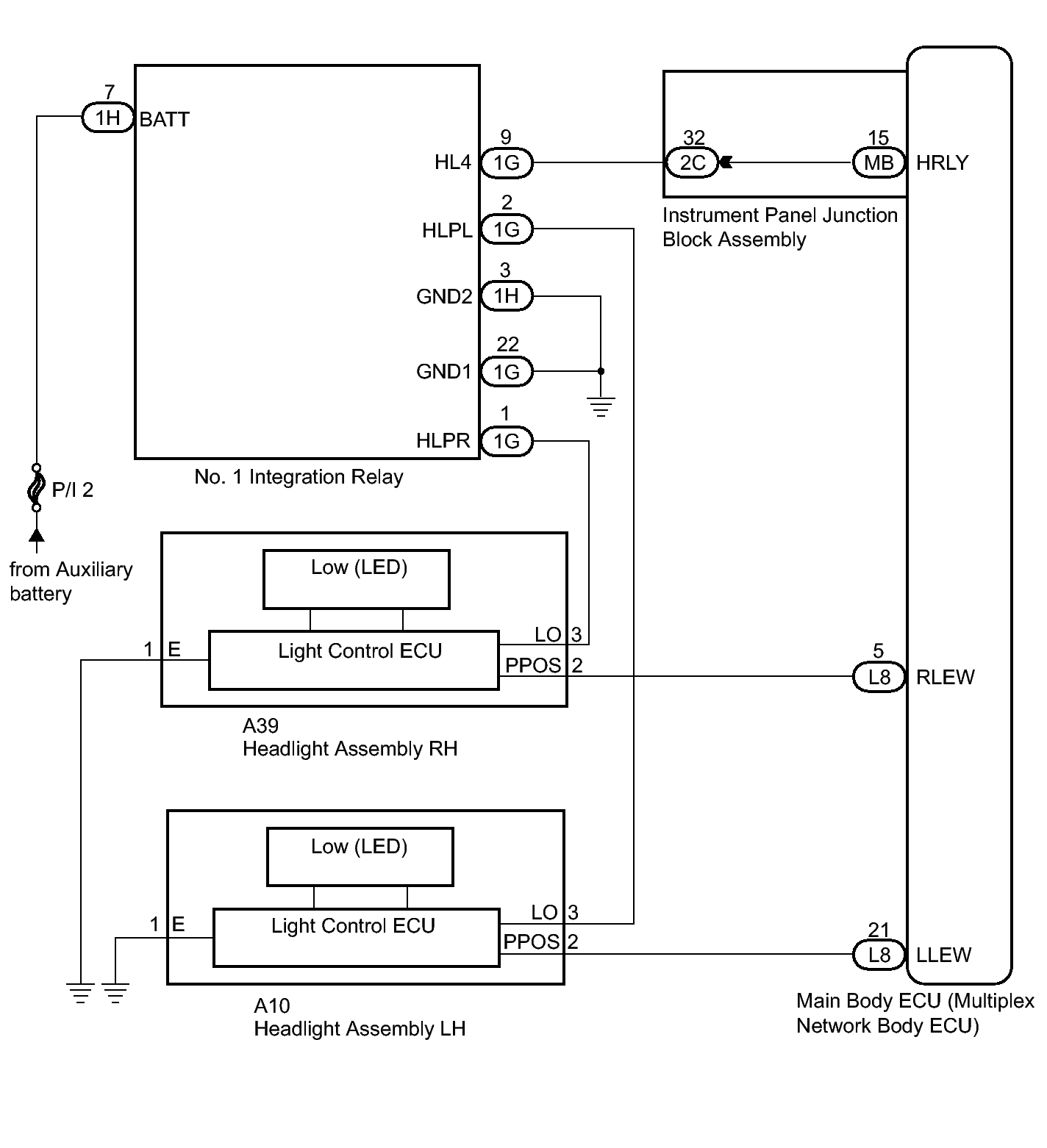

Fig 1: Light Control ECU Circuit Wiring Diagram
GTY325772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
