DTC B241A: Rear Height Control Sensor: Wiring Diagram

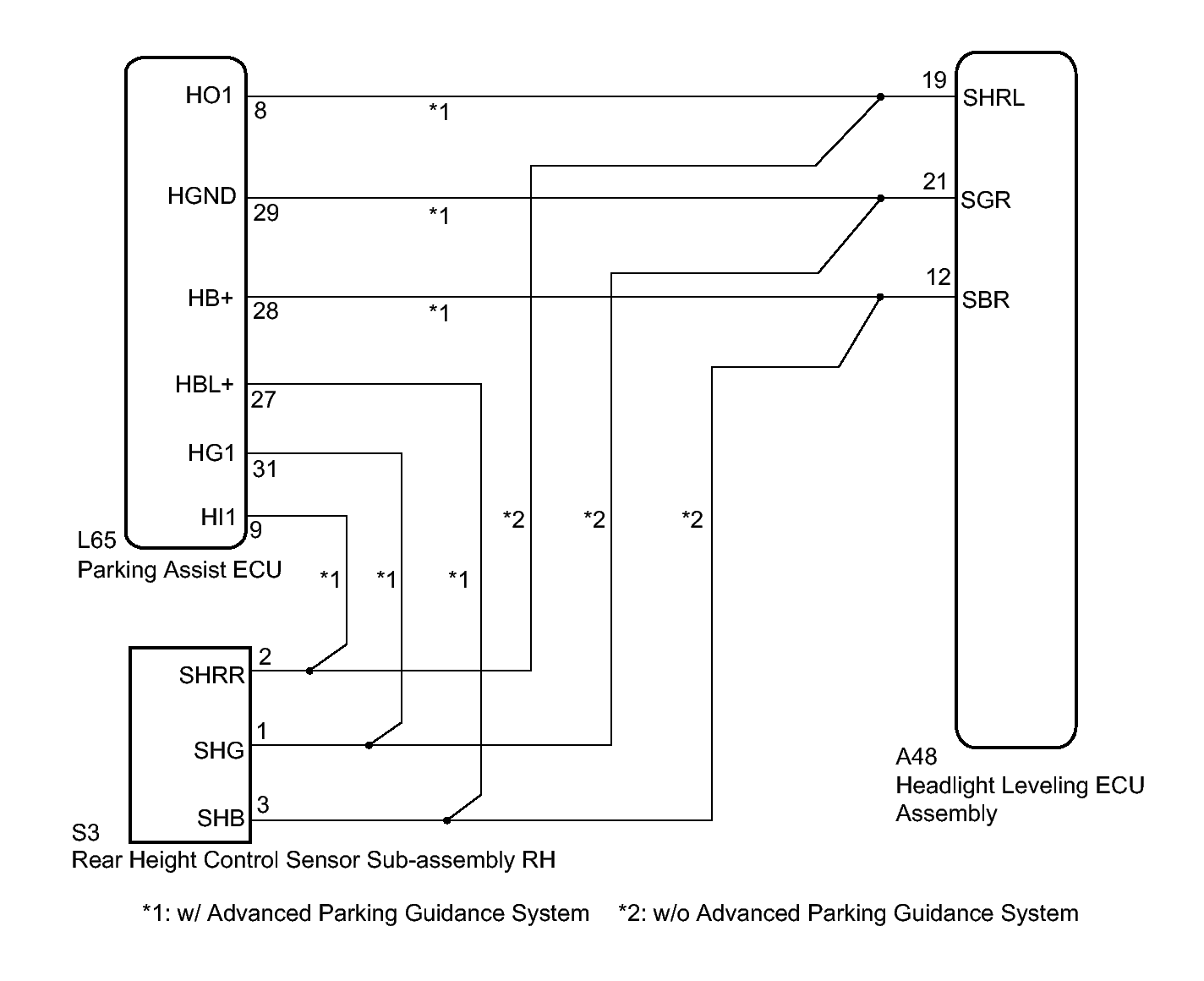

Fig 1: Headlight Leveling ECU Assembly Circuit Wiring Diagram

GTY324687

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
