Taillight Relay Circuit: Wiring Diagram

  1. for Halogen Headlight
    Fig 1: Taillight Relay Circuit Wiring Diagram (Halogen)
    GTY325087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for LED Headlight

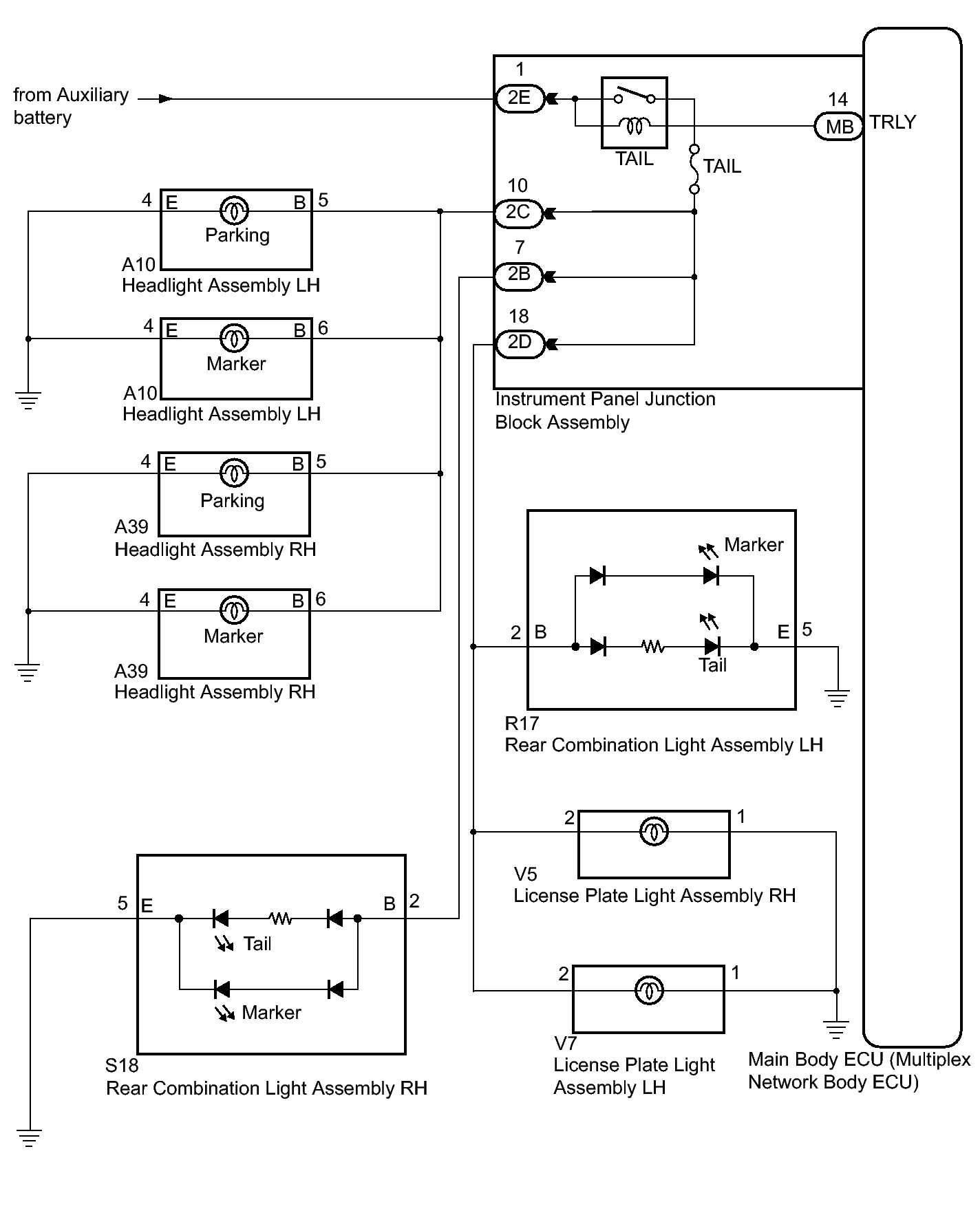

    Fig 2: Taillight Relay Circuit Wiring Diagram (LED)
    GTY338408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
