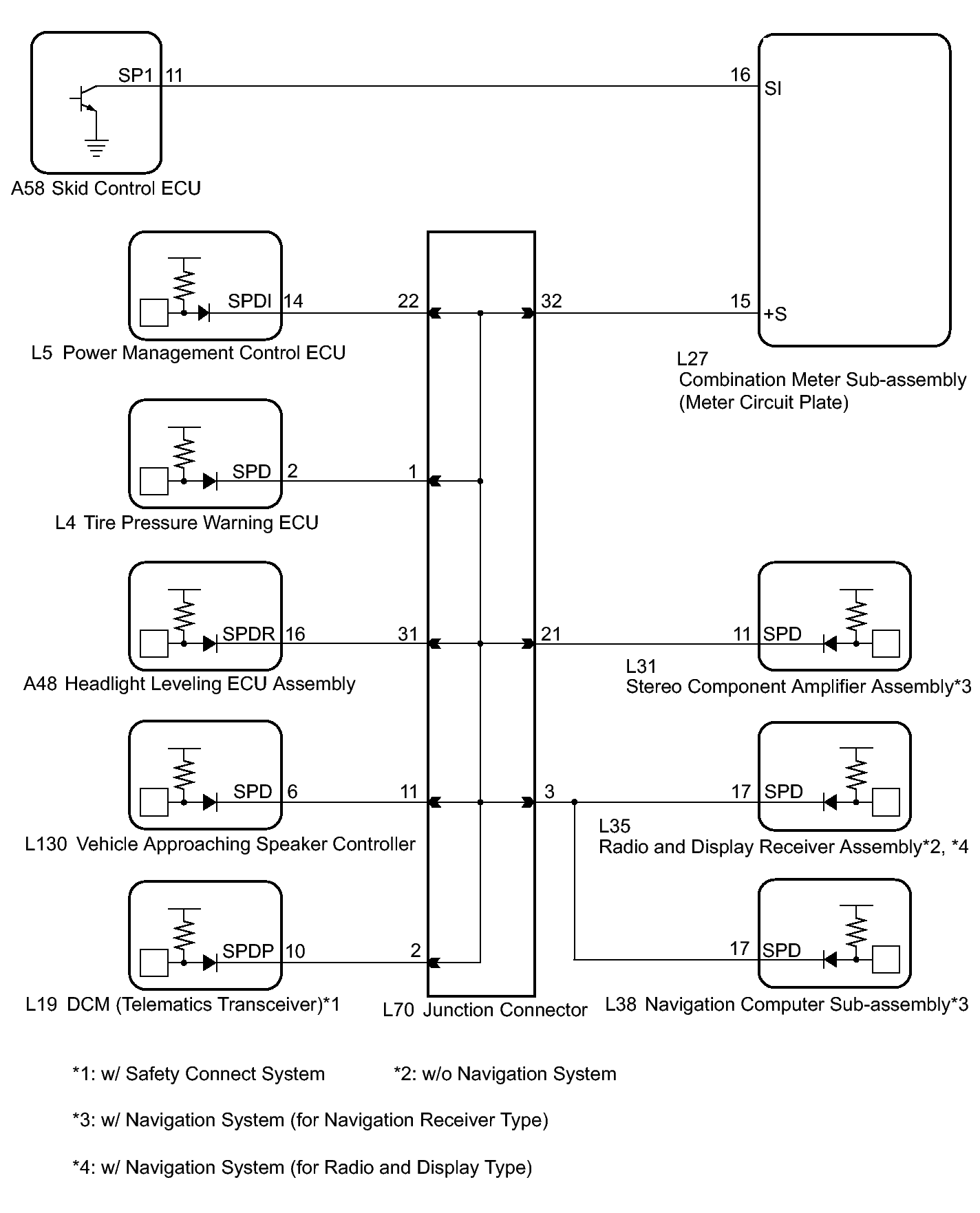

Home >> Toyota >> 2012 >> Prius V >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Lighting System (Exterior) (Diagnostic Codes & Circuit Tests) >> Lighting System >> Circuit Tests >> Speed Signal Circuit >> Wiring Diagram
