Low Beam Headlight Circuit: Wiring Diagram

  1. for Halogen Headlight

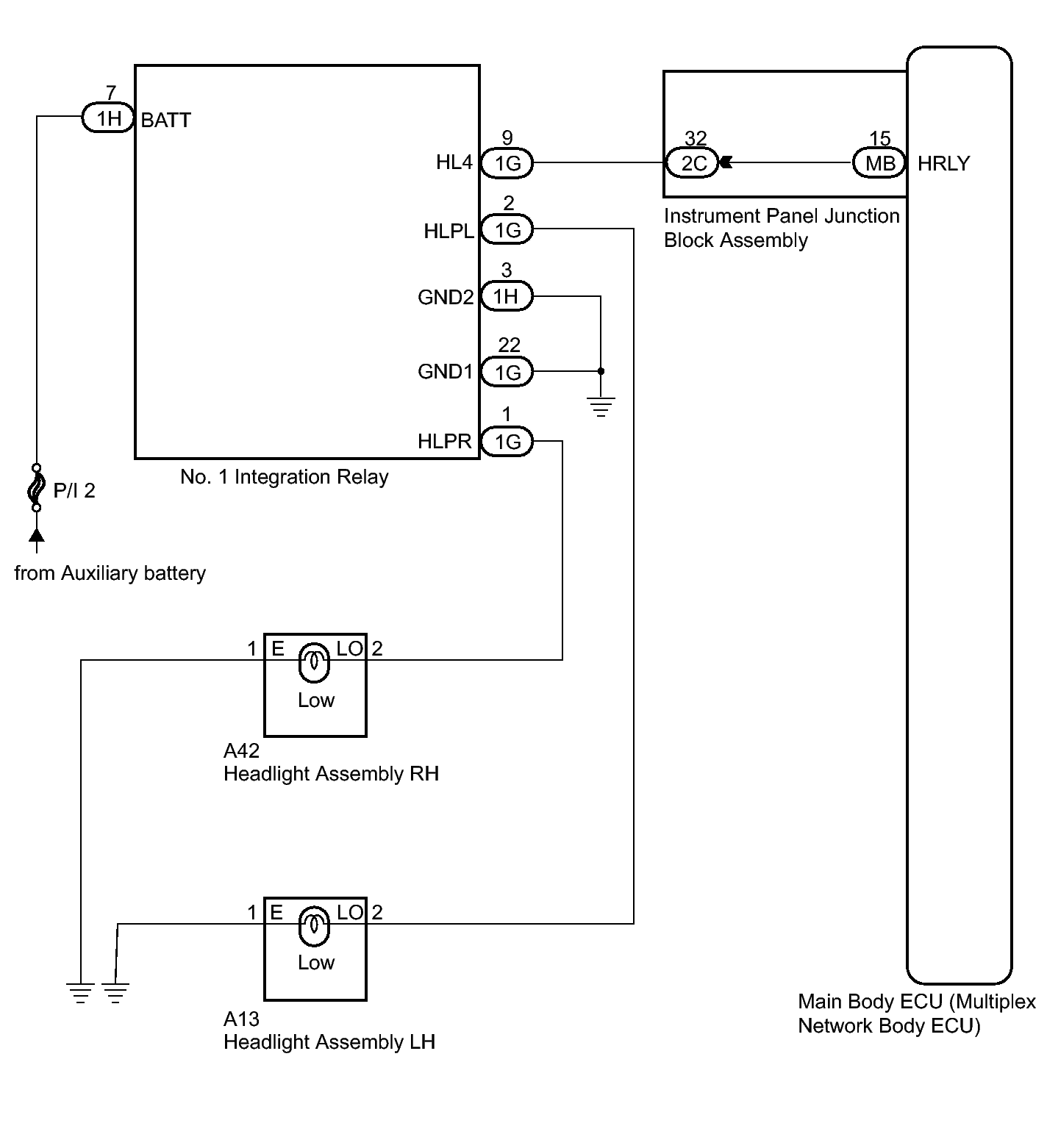

    Fig 1: Low Beam Headlight Circuit Wiring Diagram (Halogen)
    GTY340123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for LED Headlight

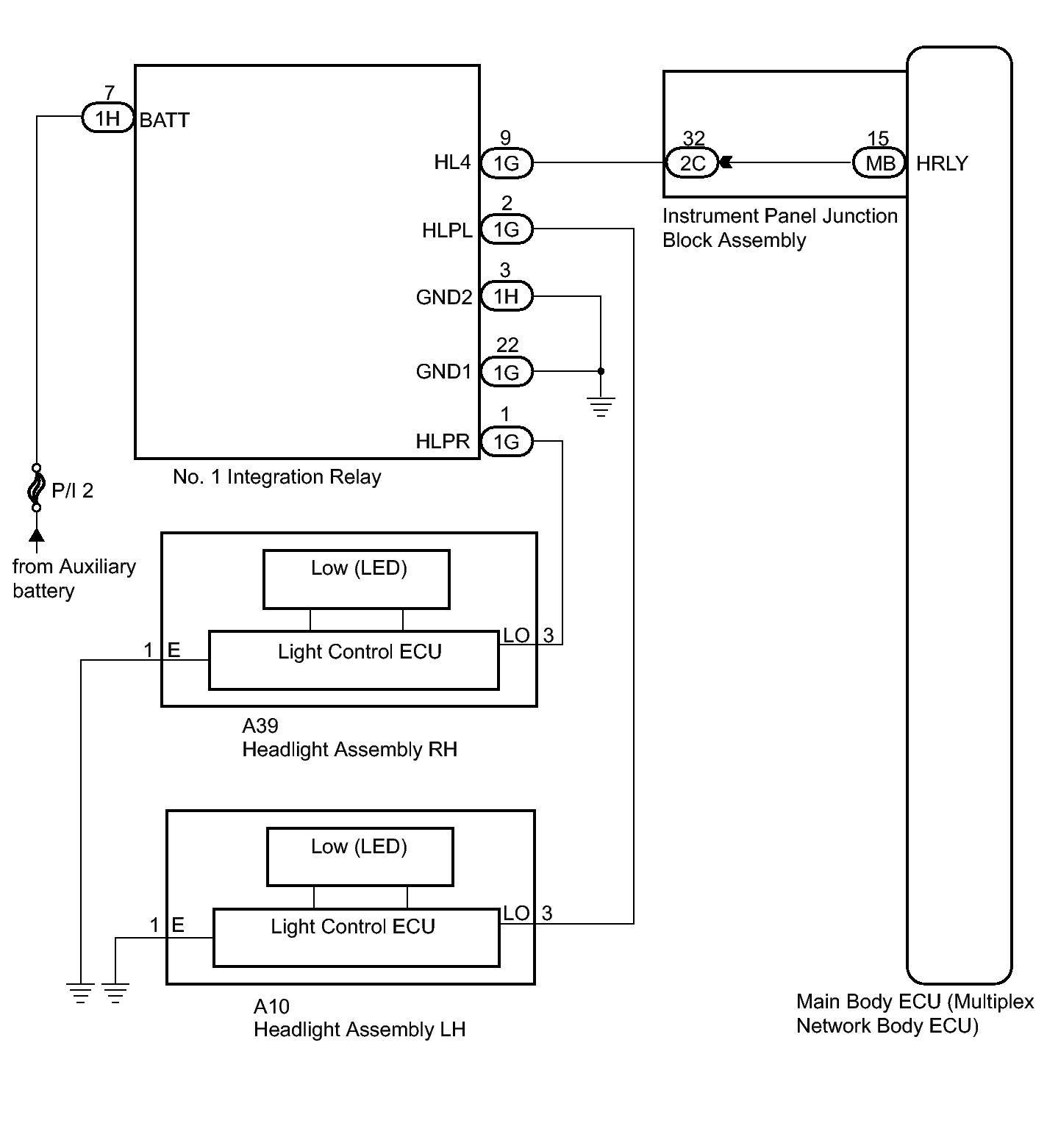

    Fig 2: Low Beam Headlight Circuit Wiring Diagram (LED)
    GTY338822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
