High Beam Headlight Circuit: Wiring Diagram

  1. w/ Daytime Running Light Control

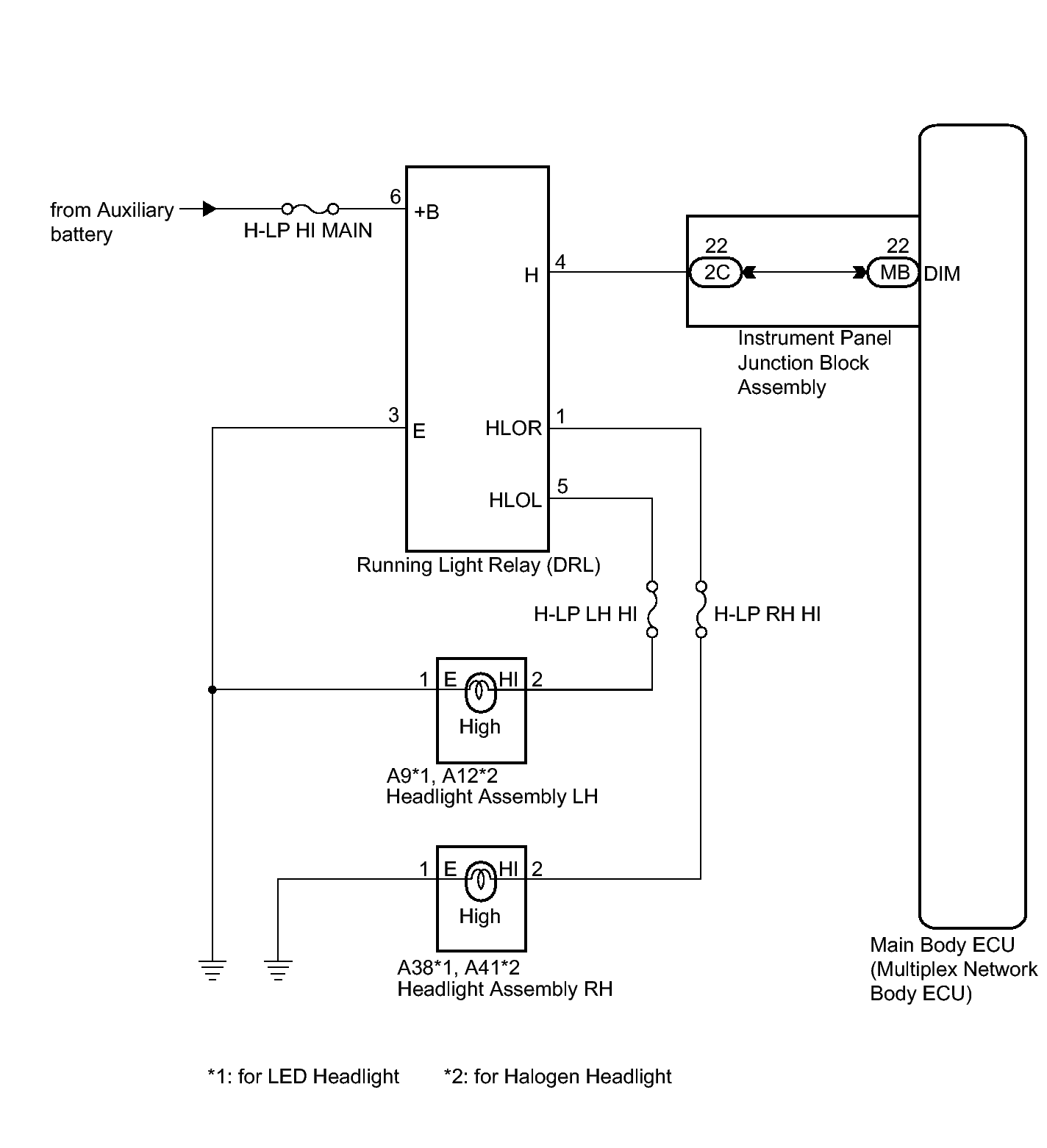

    Fig 1: High Beam Headlight Circuit Wiring Diagram (w/ DRL)
    GTY329696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/o Daytime Running Light Control

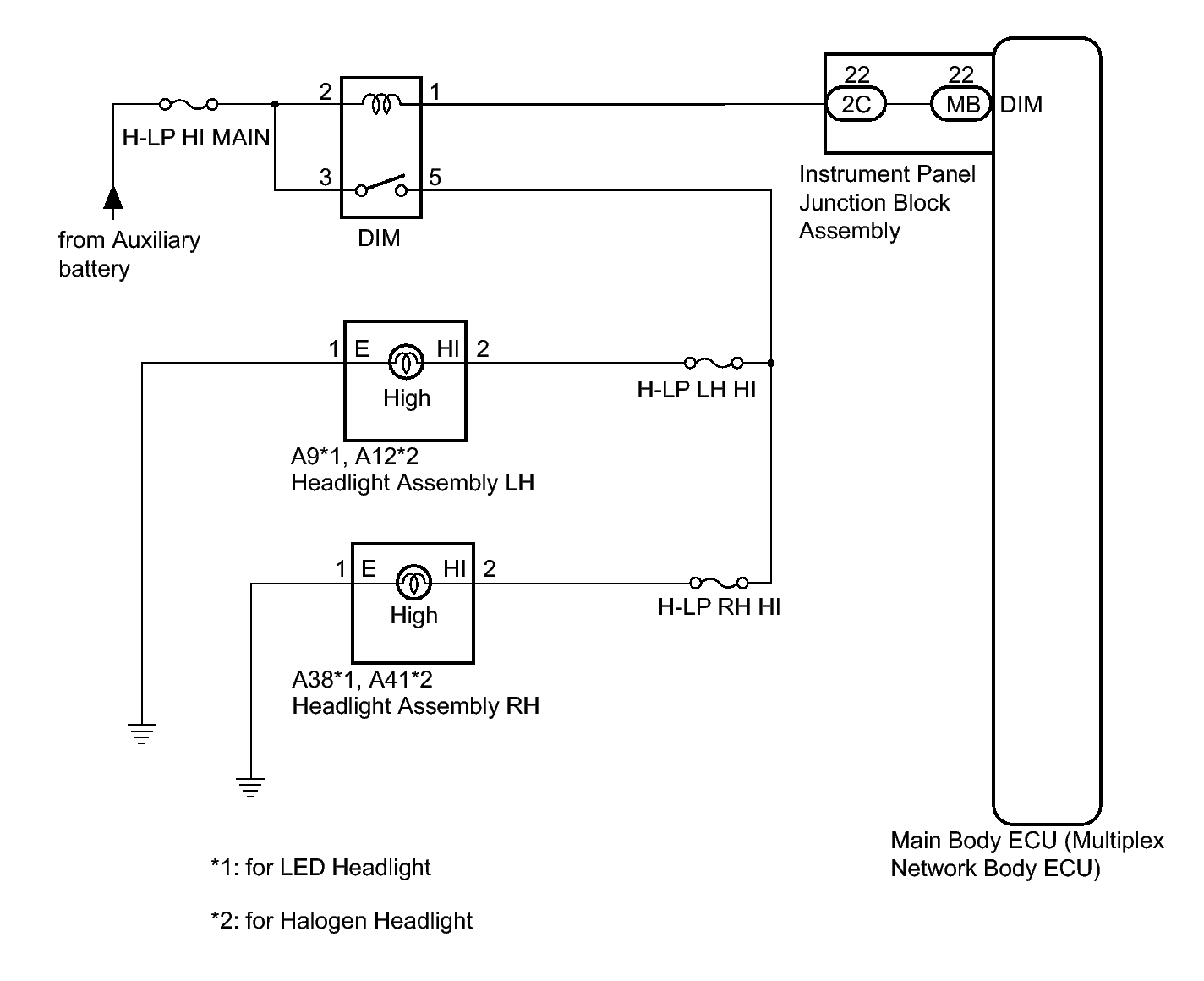

    Fig 2: High Beam Headlight Circuit Wiring Diagram (w/o DRL)
    GTY328365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
