Headlight Dimmer Switch Circuit: Wiring Diagram

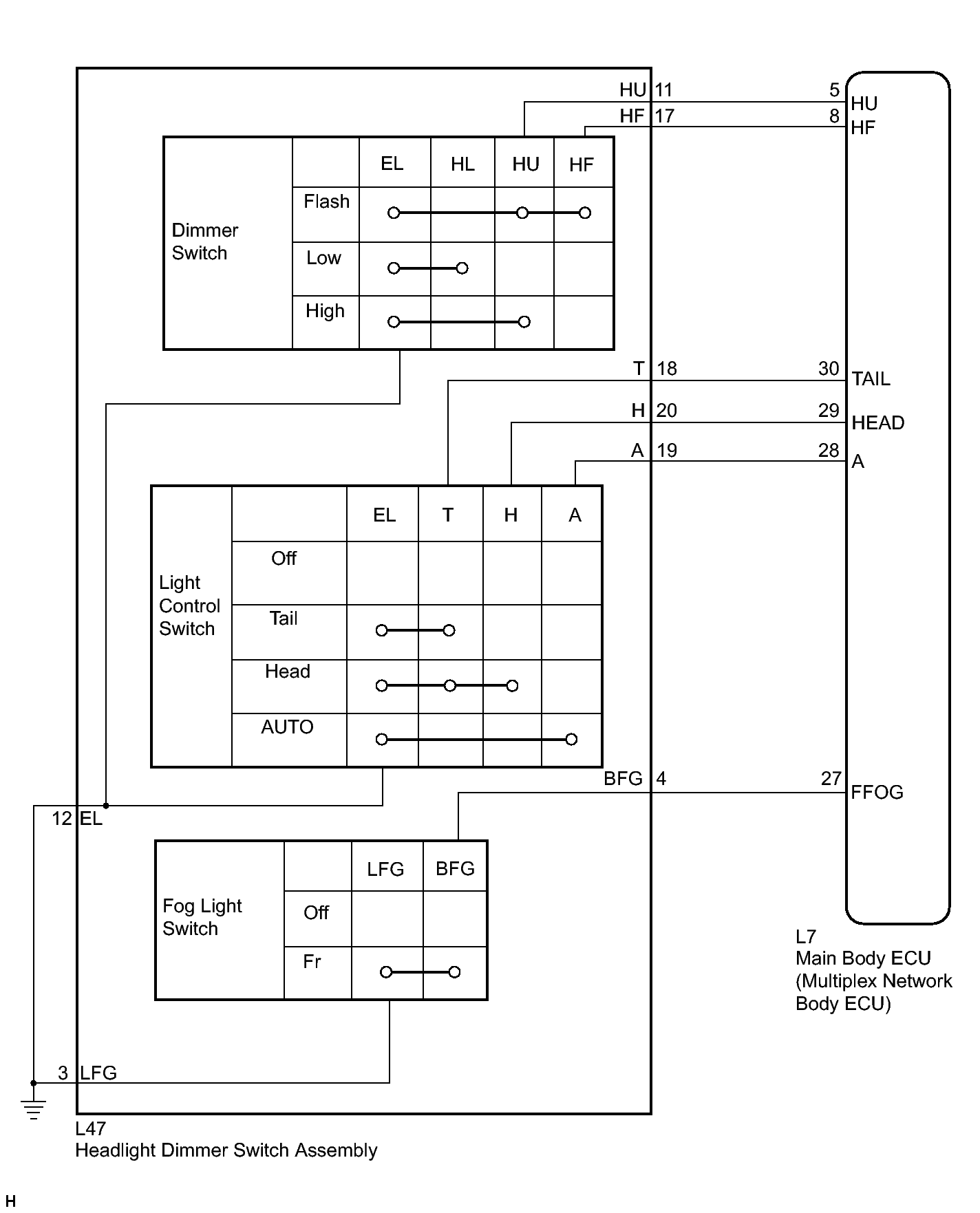

Fig 1: Headlight Dimmer Switch Circuit Wiring Diagram

GTY337863

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
