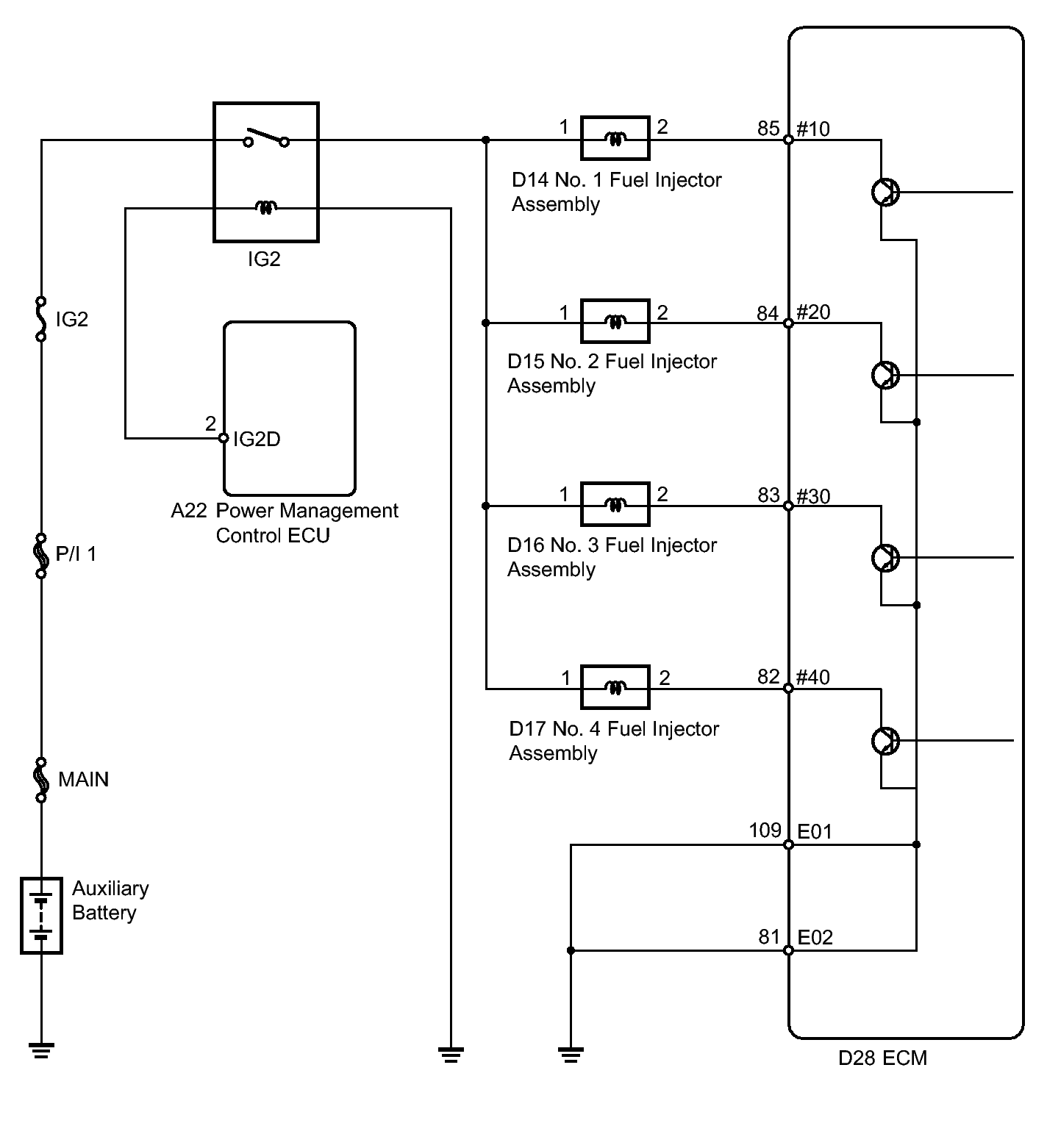

Home >> Toyota >> 2012 >> Prius Two >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> Engine Control System (Except Plug-In) (Diagnostic Codes (P0441-U0293) & Circuit Tests) >> SFI System >> Circuit Tests >> Fuel Injector Circuit >> Wiring Diagram
