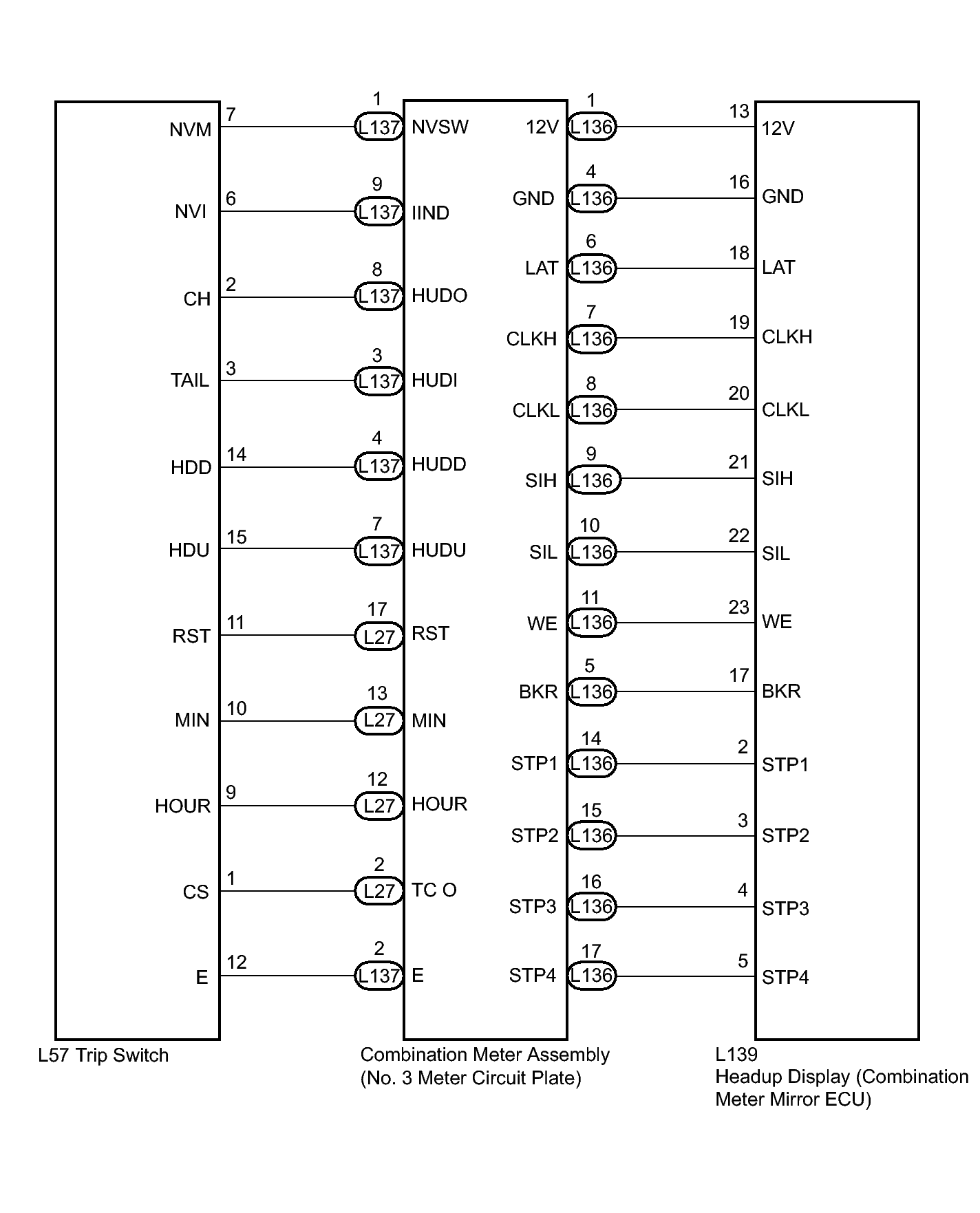

Home >> Toyota >> 2012 >> Prius Two >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge System (Except Plug-In) (Diagnostic Codes & Symptom Tests) >> Meter / Gauge System >> Symptom Tests >> Headup Display Malfunction >> Wiring Diagram
