Entire Combination Meter does not Operate: Wiring Diagram

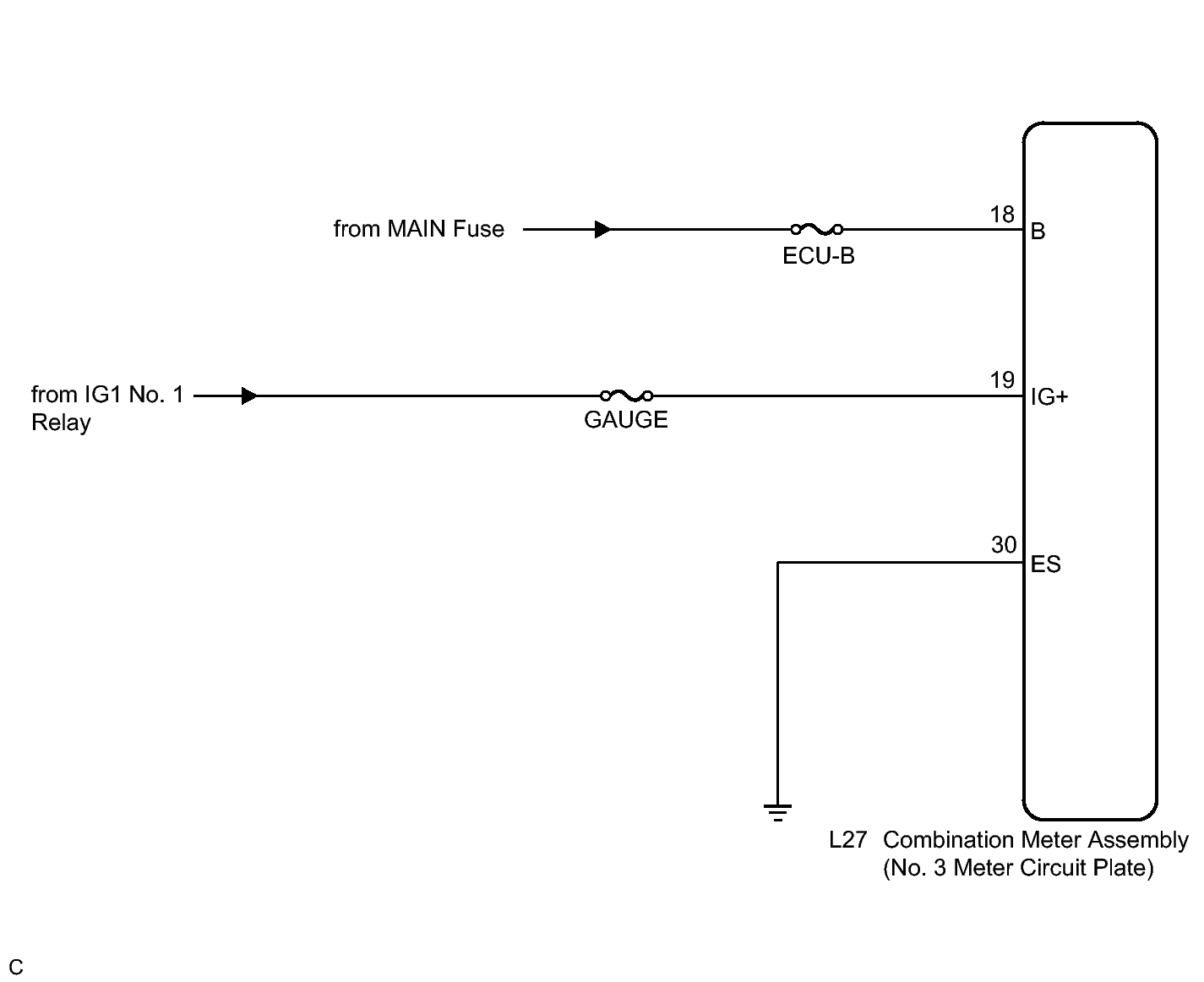

Fig 1: Combination Meter (No. 3 Circuit Plate) Wiring Diagram

GTY228984

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
