DTC B1504: Lost Communication with Steering SW: Wiring Diagram

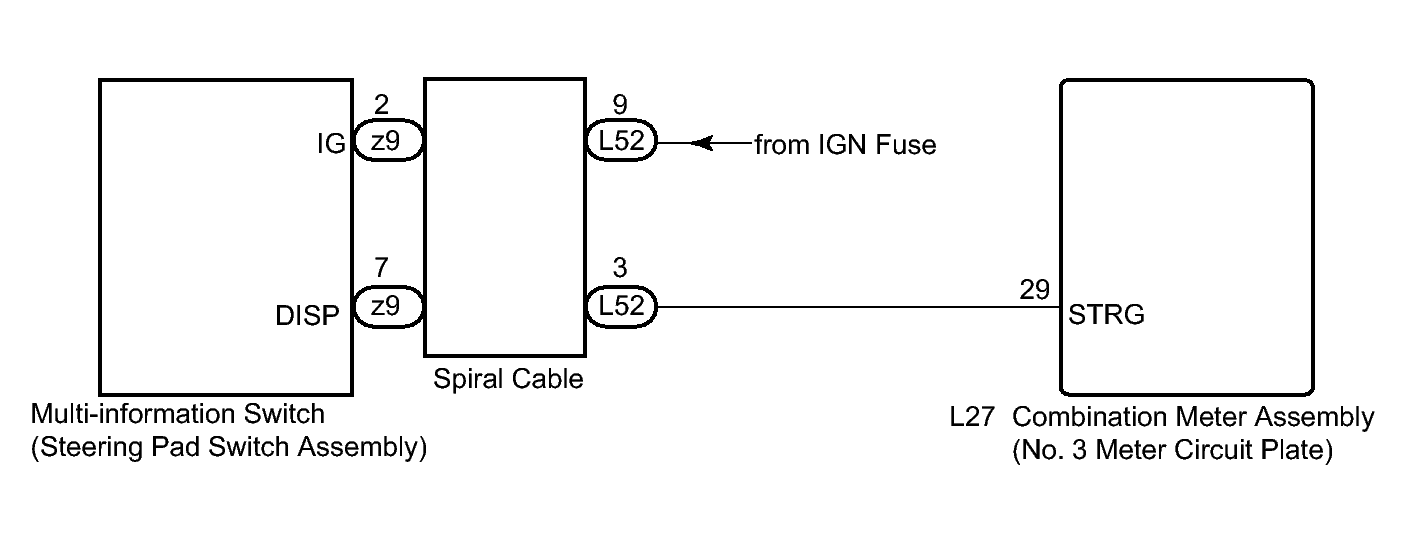

Fig 1: Identifying Multi-information Switch Wiring Diagram

GTY234632

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
