DTC B1503: Exhaust Heat Management Warning Detected: Procedure

  1. READ VALUE USING TECHSTREAM
    1. Set the vehicle in the maintenance mode using the Techstream. Refer to INSPECTION MODE PROCEDURE .
    2. Connect the Techstream to the DLC3.
    3. Turn the power switch on (IG).
    4. Turn the Techstream on.
    5. Enter the following menus: Body Electrical / Combination Meter / Data List.
    6. Check the values by referring to the table below.
      COMBINATION METER

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Coolant Temperature Engine coolant temperature/-40 to 127.5°C (-40 to 261.5°F) After warming up: 80 to 100°C (176 to 212°F) -

      HINT:

      • The coolant temperature value in this inspection is the data sent from the engine coolant temperature sensor for the SFI system.
      • When the Data List values do not match, a signal output error of the ECM is suspected.

      OK

      Engine coolant temperature displayed on the Techstream is 80 to 100°C (176 to 212°F) after warming up.

    NG → See step   4

    OK: Go to next step

  2. CHECK HARNESS AND CONNECTOR (NO. 3 METER CIRCUIT PLATE - WATER TEMPERATURE SENSOR)
    1. Disconnect the G2 connector.
    2. Disconnect the L27 connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G2-2 (TWS3) - L27-16 (TWS3) Always Below 1 Ω
      G2-1 (E2) - L27-9 (E2) Always Below 1 Ω
      G2-2 (TWS3) or L27-16 (TWS3) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  3. WATER TEMPERATURE SENSOR
    1. Remove the water temperature sensor. Refer to REMOVAL .

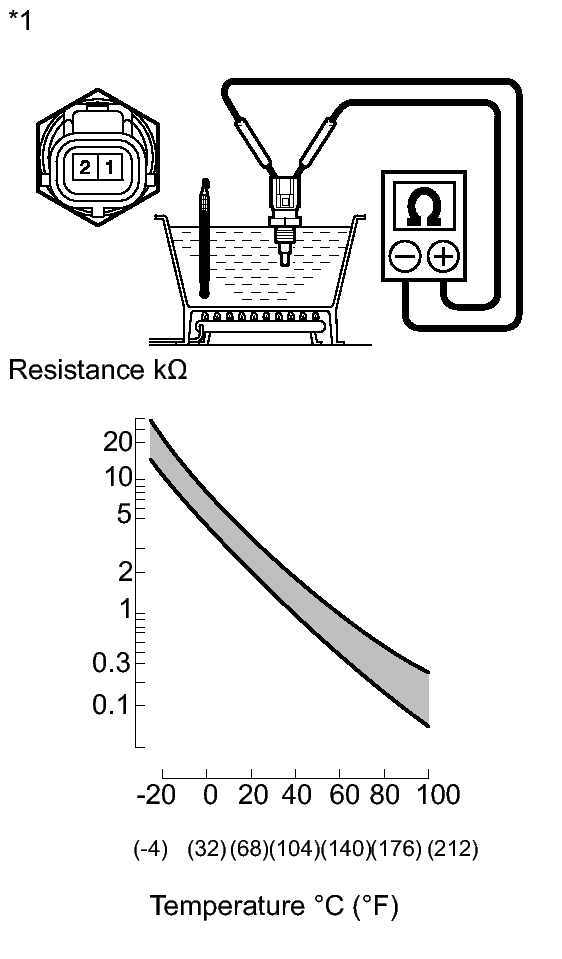

      Fig 1: Inspecting Water Temperature Sensor & Resistance / Temperature Graph
      GTY212326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 (E2) - 2 (TWS3) Temperature is 20°C (68°F) 2.32 to 2.59 kΩ
      1 (E2) - 2 (TWS3) Temperature is 80°C (176°F) 0.310 to 0.326 kΩ
      TEXT IN ILLUSTRATION

      *1 Component without harness connected
      (Water Temperature Sensor)

    NG → See step   6

    OK → See step   5

  4. GO TO EXHAUST HEAT RECIRCULATION SYSTEM. Refer to  PROBLEM SYMPTOMS TABLE
  5. REPLACE COMBINATION METER ASSEMBLY (NO. 3 METER CIRCUIT PLATE). Refer to  DISASSEMBLY
  6. REPLACE WATER TEMPERATURE SENSOR. Refer to  REMOVAL
