Meter / Gauge System (Except Plug-In) (Diagnostic Codes & Symptom Tests)
>>
Meter / Gauge System
>>
Circuit Test
>>
Speed Signal Circuit
>>
Wiring Diagram
Speed Signal Circuit: Wiring Diagram

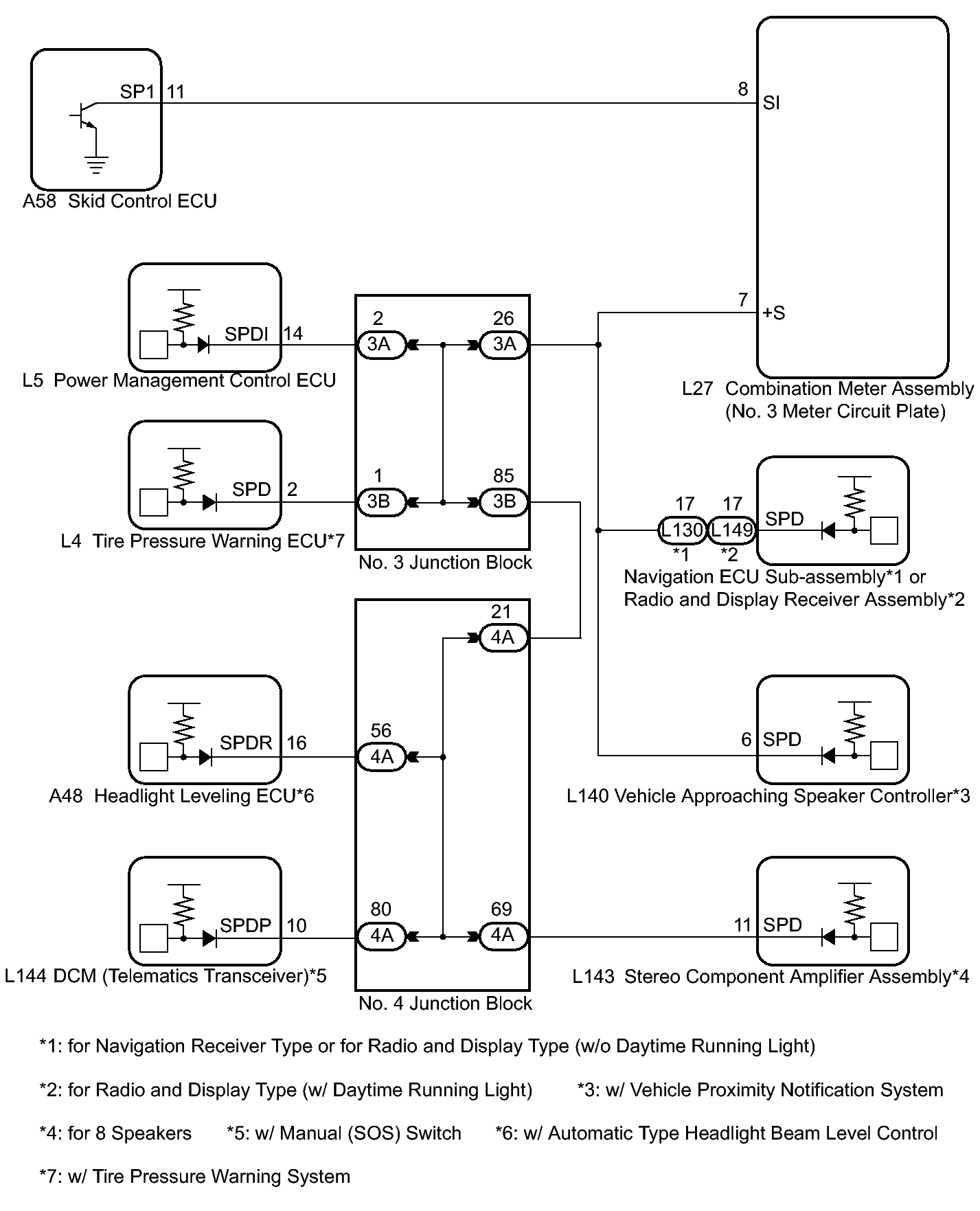

Fig 1: Identifying Combination Meter Assembly (No. 3 Circuit Plate) Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
