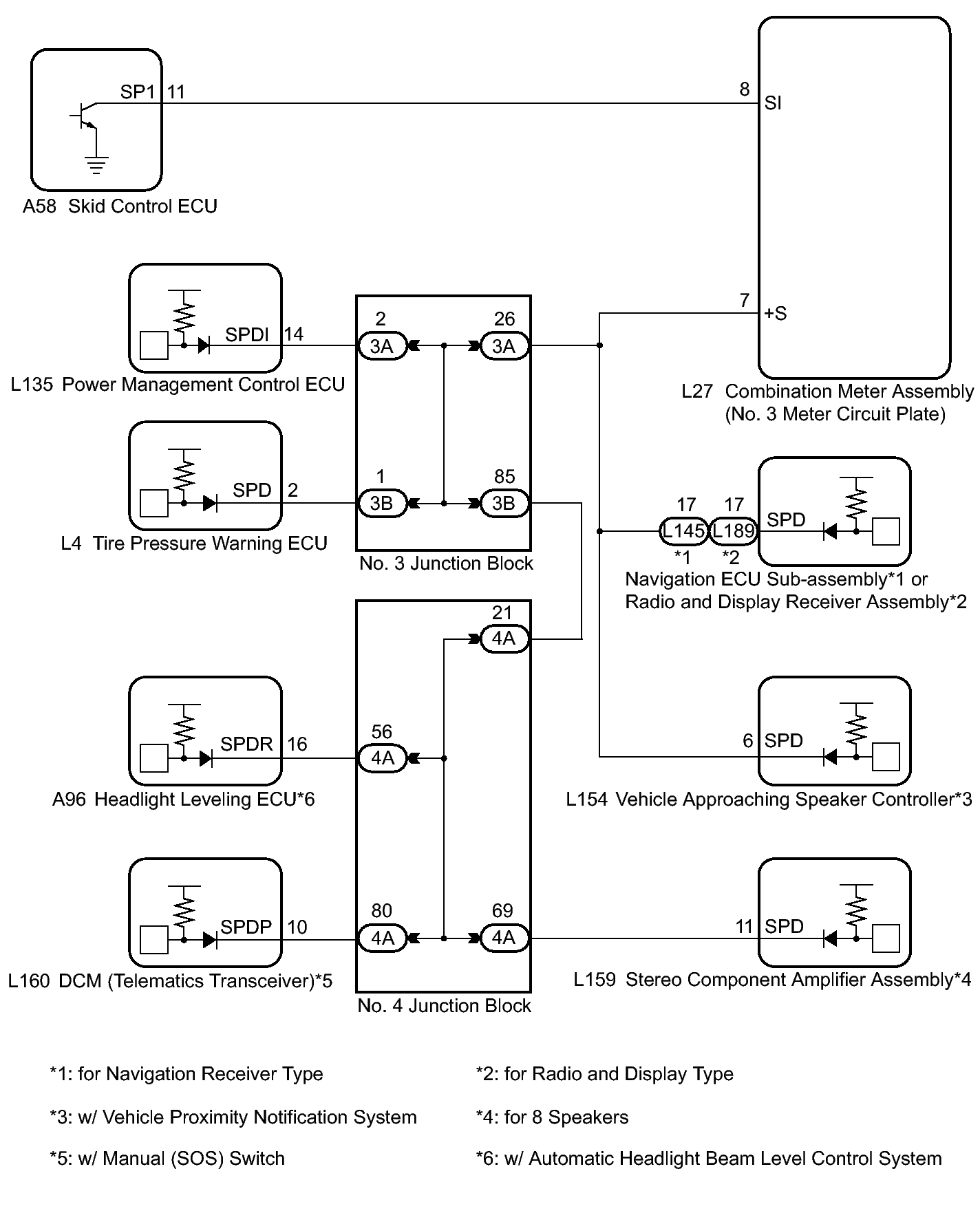

Home >> Toyota >> 2012 >> Prius Plug-in >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge System (Plug-In) (Diagnostic Codes & Symptom Tests) >> Meter / Gauge System >> Circuit Tests >> Speed Signal Circuit >> Wiring Diagram
