Speed Signal Circuit: Procedure

  1. INSPECT ECU TERMINAL VOLTAGE (INPUT VOLTAGE)
    1. Disconnect the L27 connector.
      Fig 1: Inspecting L27 Connector Terminals
      GTY334296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      L27-7 (+S) - Body ground Power switch on (IG) 4.5 to 14 V
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Combination Meter Assembly (No. 3 Meter Circuit Plate))

      HINT:

      If any of the ECUs specified in the wiring diagram supplies power to the combination meter assembly, the combination meter assembly will output a waveform.

    NG → See step   5

    OK: Go to next step

  2. INSPECT COMBINATION METER ASSEMBLY (NO. 3 METER CIRCUIT PLATE) (OUTPUT VOLTAGE)
    1. Reconnect the L27 connector.
    2. Disconnect the A58 connector.
      Fig 2: Inspecting A58 Connector Terminals
      GTY335256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A58-11 (SP1) - Body ground Power switch on (IG) 11 to 14 V
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Skid Control ECU)

    NG → See step   4

    OK: Go to next step

  3. INSPECT SKID CONTROL ECU (INPUT WAVEFORM)
    1. Check the input waveform.
      Fig 3: Inspecting L27 Connector Terminals & Waveform
      GTY334239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Reconnect the A58 connector.
      2. Remove the combination meter assembly with the connector(s) still connected.
      3. Connect an oscilloscope to terminal L27-8 (SI) and body ground.
      4. Turn the power switch on (IG).
      5. Turn the wheel slowly.
      6. Check the signal waveform according to the condition(s) in the table below.
        Item Condition
        Tool setting 5 V/DIV., 20 ms./DIV.
        Vehicle condition Driving at approx. 20 km/h (12 mph)
        TEXT IN ILLUSTRATION

        *a Component with harness connected
        (Combination Meter Assembly)

        OK

        The waveform is displayed as shown in the illustration.

        HINT:

        When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

    NG → See step   19

    OK → See step   18

  4. CHECK HARNESS AND CONNECTOR (NO. 3 METER CIRCUIT PLATE - SKID CONTROL ECU)
    1. Disconnect the L27 and A58 connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A58-11 (SP1) - L27-8 (SI) Always Below 1 Ω
      A58-11 (SP1) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   18

  5. CHECK HARNESS AND CONNECTOR (NO. 3 METER CIRCUIT PLATE - RADIO AND DISPLAY RECEIVER ASSEMBLY, NAVIGATION ECU SUB-ASSEMBLY)
    1. Disconnect the L27 and L145*1 or L189*2 connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L145-17 (SPD)*1 - L27-7 (+S) Always Below 1 Ω
      L189-17 (SPD)*2 - L27-7 (+S) Always Below 1 Ω
      L27-7 (+S) - Body ground Always 10 kΩ or higher
      • *1: for Navigation Receiver Type
      • *2: for Radio and Display Type

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  6. INSPECT RADIO AND DISPLAY RECEIVER ASSEMBLY, NAVIGATION ECU SUB-ASSEMBLY (OUTPUT VOLTAGE)
    1. Reconnect the L145*1 or L189*2 connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      L145-17 (SPD)*1 - Body ground Power switch on (IG) 4 to 14 V
      L189-17 (SPD)*2 - Body ground Power switch on (IG) 4 to 14 V
      • *1: for Navigation Receiver Type
      • *2: for Radio and Display Type

      Result

      Result Proceed to
      OK A
      NG (for Radio and Display Type) B
      NG (for Navigation Receiver Type) C

    B → See step   20

    C → See step   21

    A: Go to next step

  7. INSPECT VEHICLE APPROACHING SPEAKER CONTROLLER ASSEMBLY (OUTPUT VOLTAGE)
    1. Reconnect the L154 connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      L154-6 (SPD) - Body ground Power switch on (IG) 4 to 14 V

    NG → See step   22

    OK: Go to next step

  8. CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - NO. 3 JUNCTION BLOCK)
    1. Disconnect the 3A connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L27-7 (+S) - 3A-26 Always Below 1 Ω
      L27-7 (+S) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  9. CHECK HARNESS AND CONNECTOR (NO. 3 JUNCTION BLOCK (INSTRUMENT PANEL WIRE))
    1. Inspect for a short in the circuit that is connected to the junction block connector shown in the wiring diagram.

      HINT:

      If voltage is not present, it is possible that an ECU or circuit has a malfunction. The malfunctioning ECU or circuit will be diagnosed in the following steps.

      1. Disconnect the 3B connector.

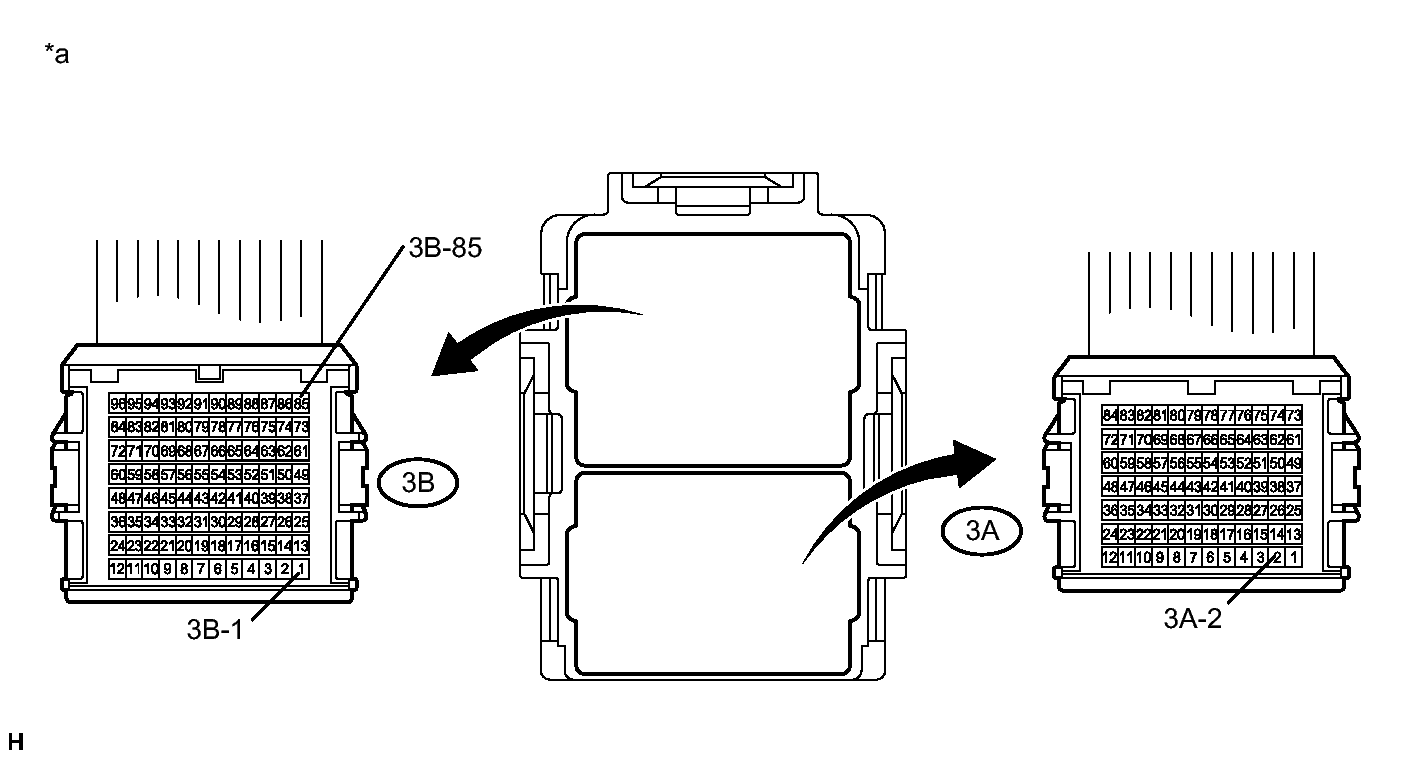

        Fig 4: Checking Harness & No. 3 Junction Block (Instrument Panel Wire) Connector Terminals
        GTY332322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Measure the voltage according to the value(s) in the table below.

        Standard Voltage

        Tester Connection Condition Specified Condition
        3A-2 - Body ground Power switch on (IG) 4.5 to 14 V
        3B-1 - Body ground Power switch on (IG) 4.5 to 14 V
        3B-85 - Body ground Power switch on (IG) 4.5 to 14 V
        TEXT IN ILLUSTRATION

        *a Front view of wire harness connector
        (to No. 3 Junction Block)

        Result

        Result Proceed to
        Voltage is not present in one circuit. A
        Voltage is present in all the circuits. B

    B → REPLACE NO. 3 JUNCTION BLOCK (INSTRUMENT PANEL WIRE)

    A: Go to next step

  10. CHECK HARNESS AND CONNECTOR (NO. 3 JUNCTION BLOCK - NO. 4 JUNCTION BLOCK)
    1. Disconnect the 4A connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      3B-85 - 4A-21 Always Below 1 Ω
      3B-85 - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  11. CHECK HARNESS AND CONNECTOR (NO. 4 JUNCTION BLOCK (INSTRUMENT PANEL WIRE))
    1. Inspect for a short in the circuit that is connected to the junction block connector shown in the wiring diagram.

      HINT:

      If voltage is not present, it is possible that an ECU or circuit has a malfunction. The malfunctioning ECU or circuit will be diagnosed in the following steps.

      1. Measure the voltage according to the value(s) in the table below.
        Fig 5: Checking Harness & No. 4 Junction Block (Instrument Panel Wire) Connector Terminals
        GTY338353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard Voltage

        Tester Connection Condition Specified Condition
        4A-56 - Body ground Power switch on (IG) 4.5 to 14 V
        4A-69 - Body ground Power switch on (IG) 4.5 to 14 V
        TEXT IN ILLUSTRATION

        *a Front view of wire harness connector
        (to No. 4 Junction Block)

        Result

        Result Proceed to
        Voltage is not present in one circuit. A
        Voltage is present in all the circuits. B

    B → REPLACE NO. 4 JUNCTION BLOCK (INSTRUMENT PANEL WIRE)

    A: Go to next step

  12. SYSTEM CHECK
    1. Select the circuit for which voltage was not present in step 9 or 11.

      Result

      Tester Connection System that Uses the Circuit Proceed to
      3A-2 - Body ground Smart Key System A
      4A-69 - Body ground Audio/Visual System B
      3B-1 - Body ground Tire Pressure Warning ECU C
      4A-56*1 - Body ground Lighting System D
      4A-80*2 - Body ground Safety Connect System E
      • *1: w/ Automatic Headlight Beam Level Control System
      • *2: w/ Manual (SOS) Switch

    B → See step   14

    C → See step   15

    D → See step   16

    E → See step   17

    A: Go to next step

  13. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU CIRCUIT)
    1. Disconnect the L135 connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L135-14 (SPDI) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   23

  14. CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER ASSEMBLY CIRCUIT)
    1. Disconnect the L159 connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L159-11 (SPD) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   24

  15. CHECK HARNESS AND CONNECTOR (TIRE PRESSURE WARNING ECU CIRCUIT)
    1. Disconnect the L4 connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L4-2 (SPD) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   25

  16. CHECK HARNESS AND CONNECTOR (HEADLIGHT LEVELING ECU CIRCUIT)
    1. Disconnect the A96 connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A96-16 (SPDR) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   26

  17. CHECK HARNESS AND CONNECTOR (DCM (TELEMATICS TRANSCEIVER) CIRCUIT)
    1. Disconnect the L160 connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L160-10 (SPDP) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   27

  18. REPLACE NO. 3 METER CIRCUIT PLATE. Refer to  DISASSEMBLY
  19. REPLACE SKID CONTROL ECU. Refer to  REMOVAL
  20. REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY. Refer to  REMOVAL
  21. REPLACE NAVIGATION ECU SUB-ASSEMBLY. Refer to  REMOVAL
  22. REPLACE VEHICLE APPROACHING SPEAKER CONTROLLER. Refer to  REMOVAL
  23. REPLACE POWER MANAGEMENT CONTROL ECU. Refer to  REMOVAL
  24. REPLACE STEREO COMPONENT AMPLIFIER ASSEMBLY. Refer to  REMOVAL
  25. REPLACE TIRE PRESSURE WARNING ECU. Refer to  REMOVAL
  26. REPLACE HEADLIGHT LEVELING ECU ASSEMBLY. Refer to  REMOVAL
  27. REPLACE DCM (TELEMATICS TRANSCEIVER). Refer to  REMOVAL
