Keep The Cooling System Free Of Debris And Corrosion To Prevent Premature Water Pump Failure (TT002-13)

Publication date: 2013-06-01
Reference number: TT002-13

KEEP THE COOLING SYSTEM FREE OF DEBRIS AND CORROSION TO PREVENT PREMATURE WATER PUMP FAILURE

KEEP THE COOLING SYSTEM FREE OF DEBRIS AND CORROSION TO PREVENT PREMATURE WATER PUMP FAILURE

GATES TECHNICAL SERVICE BULLETIN

Reference Number(s): TT002-13
MAKE: All
MODEL: All
YEAR: All
ENGINE: All

SERVICE INFORMATION

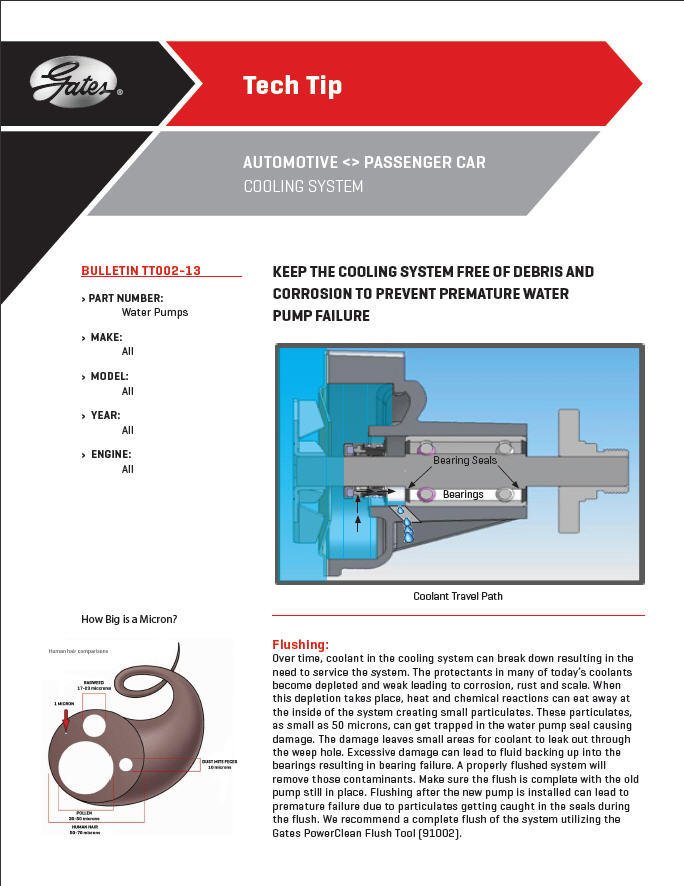

Fig 1: KEEP THE COOLING SYSTEM FREE OF DEBRIS AND CORROSION TO PREVENT PREMATURE WATER PUMP FAILURE Page 1
G00381113

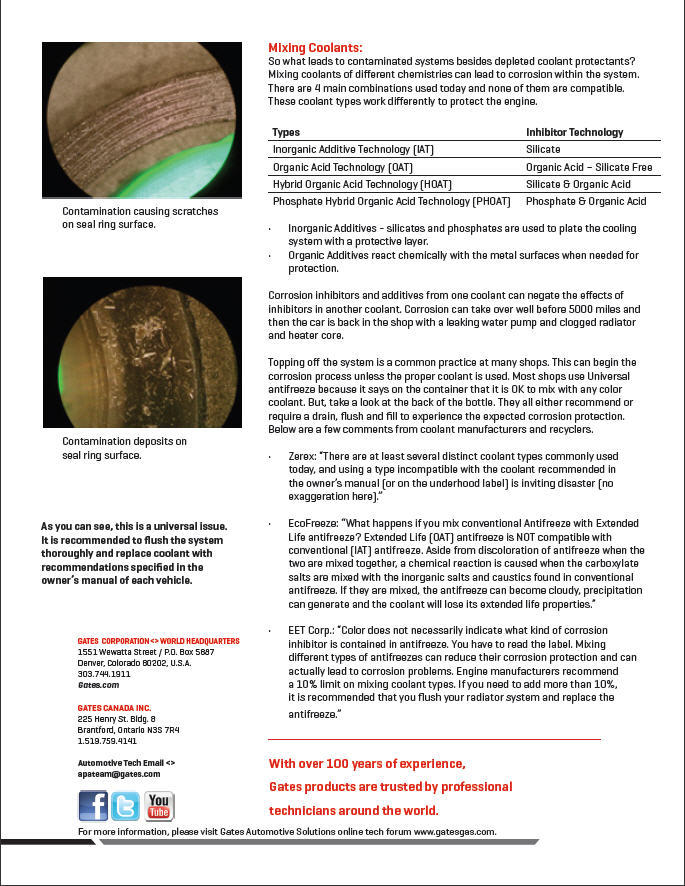

Fig 2: KEEP THE COOLING SYSTEM FREE OF DEBRIS AND CORROSION TO PREVENT PREMATURE WATER PUMP FAILURE Page 2
G00381114
