: Location of Connector Joining Wire Harness and Wire Harness; : Location of Ground Points: 2AZ-FE

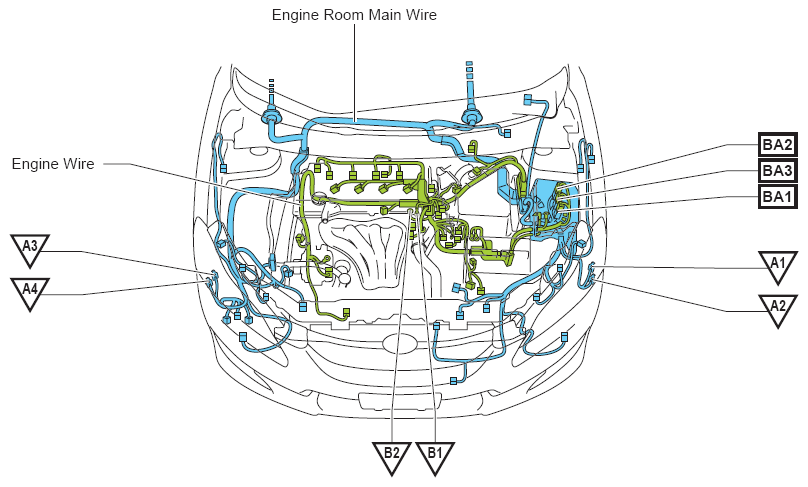

Fig 1: Locating Wiring Harness And Ground Points (2AZ-FE)
G08798852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
