OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Turn Signal And Hazard Warning Light
Turn Signal And Hazard Warning Light

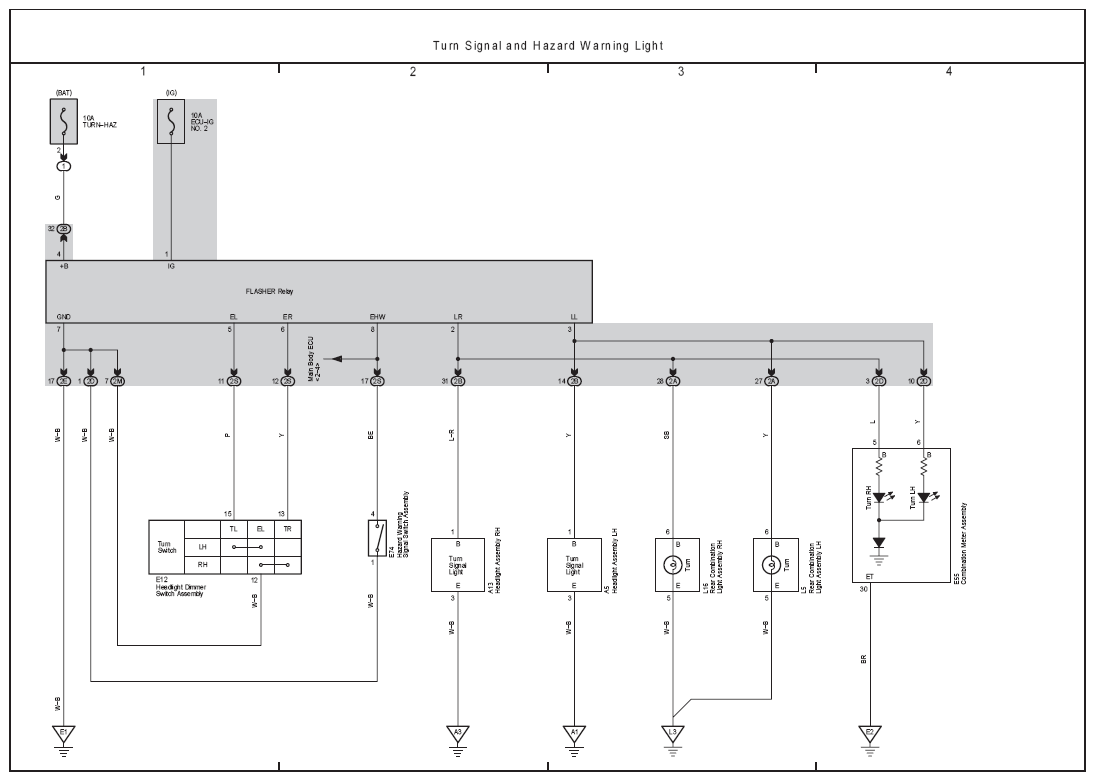

Fig 1: Turn Signal And Hazard Warning Light Electrical Wiring Diagram
