Overall Electrical Wiring Diagram: SRS

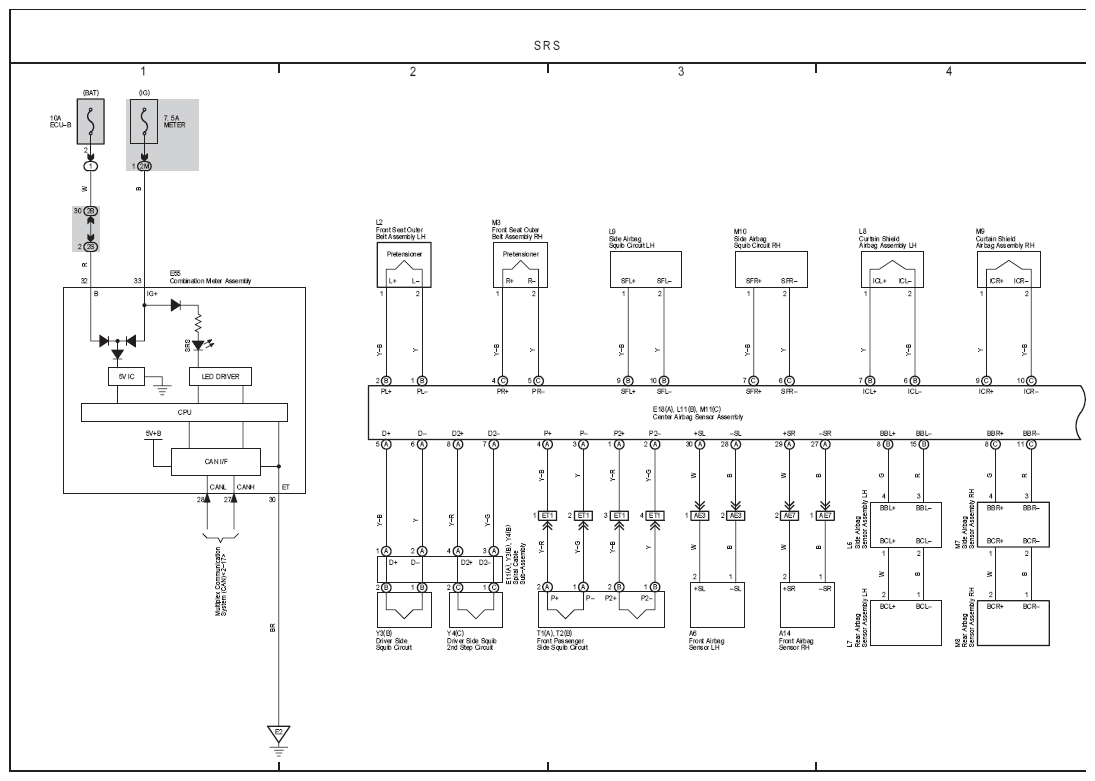

Fig 1: SRS Electrical Wiring Diagram (1 Of 2)
G08799309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

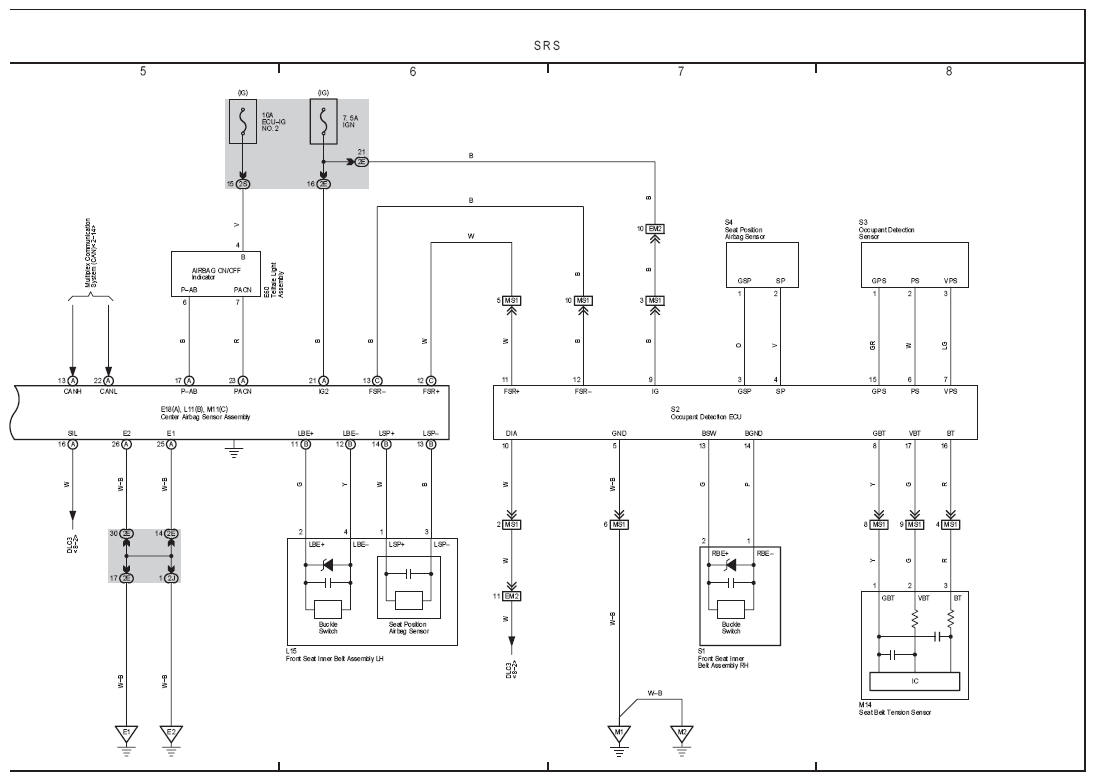

Fig 2: SRS Electrical Wiring Diagram (2 Of 2)
G08799310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
