OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Rear Wiper And Washer, Shift Lock
Rear Wiper And Washer, Shift Lock

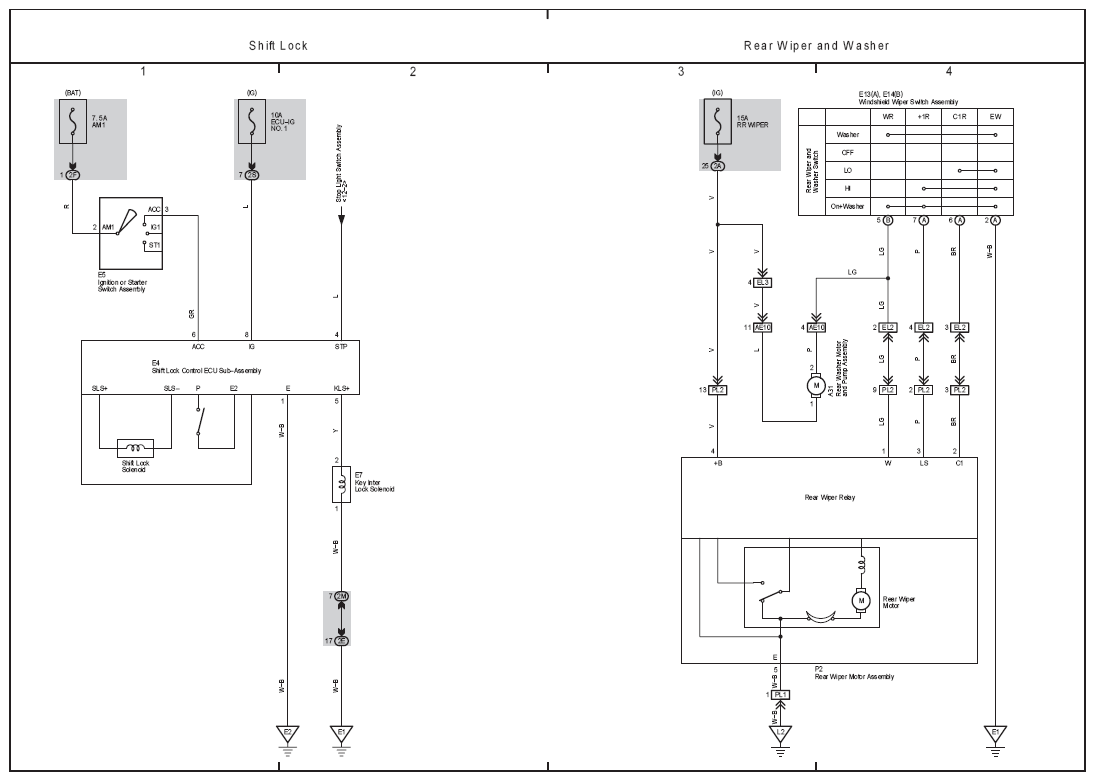

Fig 1: Shift Lock And Rear Wiper And Washer System Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
