Overall Electrical Wiring Diagram: Ignition

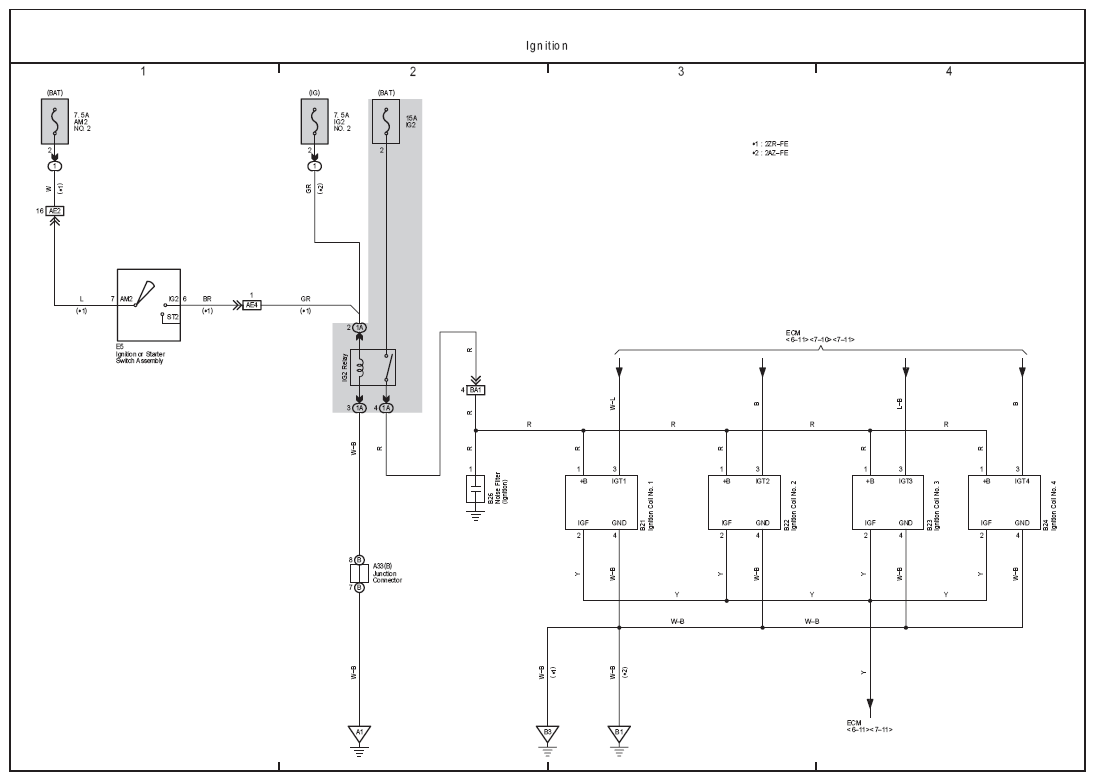

Fig 1: Ignition System Electrical Wiring Diagram

G08799287

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
