Automatic Glare-Resistant EC Mirror with Compass, Sliding Roof

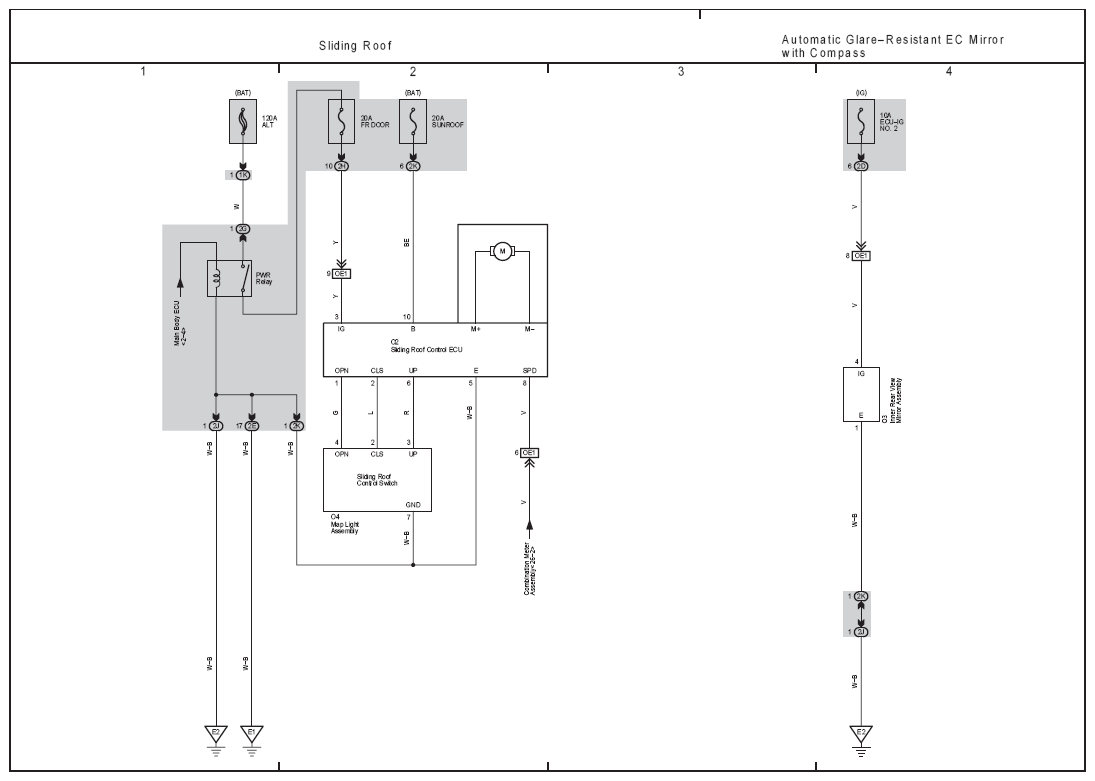

Fig 1: Automatic Glare-Resistant EC Mirror with Compass And Sliding Roof Electrical Wiring Diagram
G08799315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
