Home >> Toyota >> 2012 >> Matrix Base, Automatic Trans >> Repair and Diagnosis (Single Page) >> Electrical >> Motors, Switches, Relays >> OEM Overall Electrical Wiring Diagram >> Overall Electrical Wiring Diagram >> 4WD

Overall Electrical Wiring Diagram: 4WD

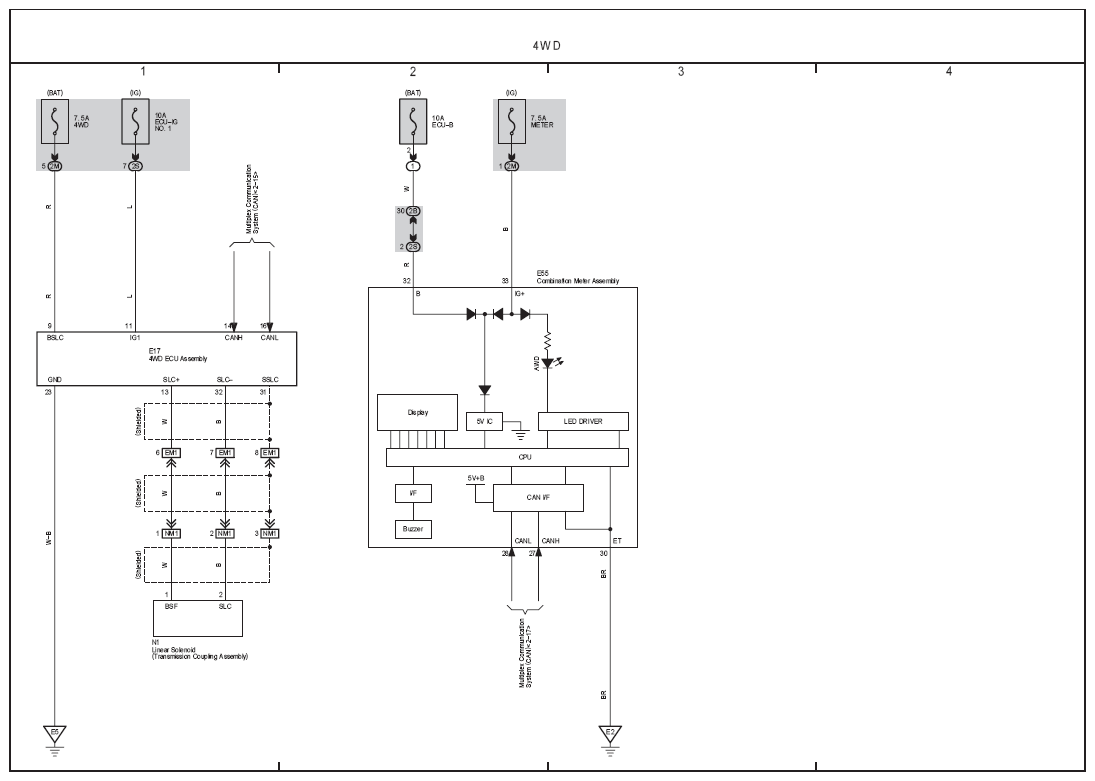

Fig 1: 4WD Electrical Wiring Diagram

G08799311

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
