Fuel Receiver Gauge Malfunction: Wiring Diagram

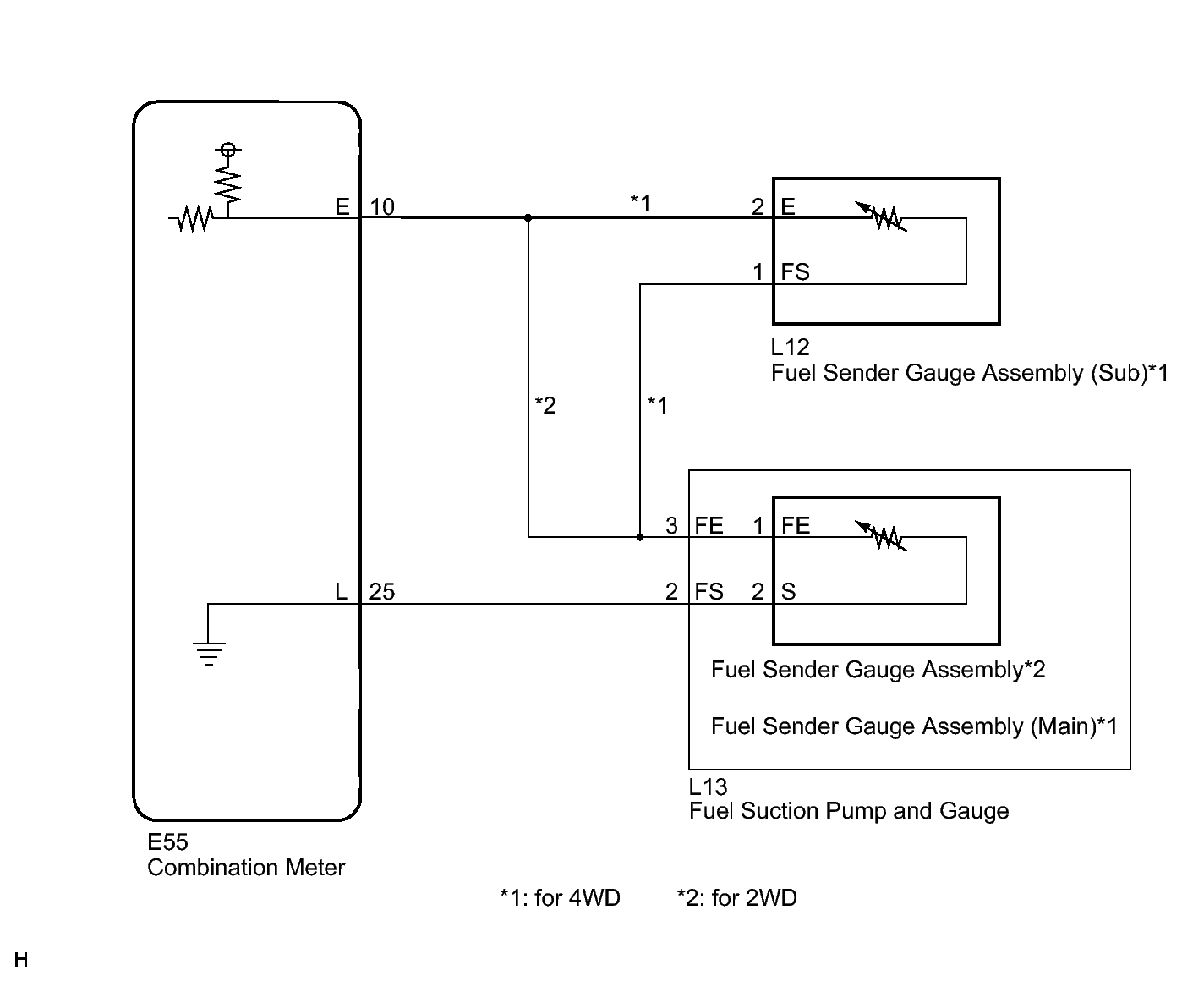

Fig 1: Identifying Combination Meter Circuit Diagram

GTY211490

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
