Engine Coolant Temperature Receiver Gauge Malfunction: Wiring Diagram

  1. for 2AZ-FE

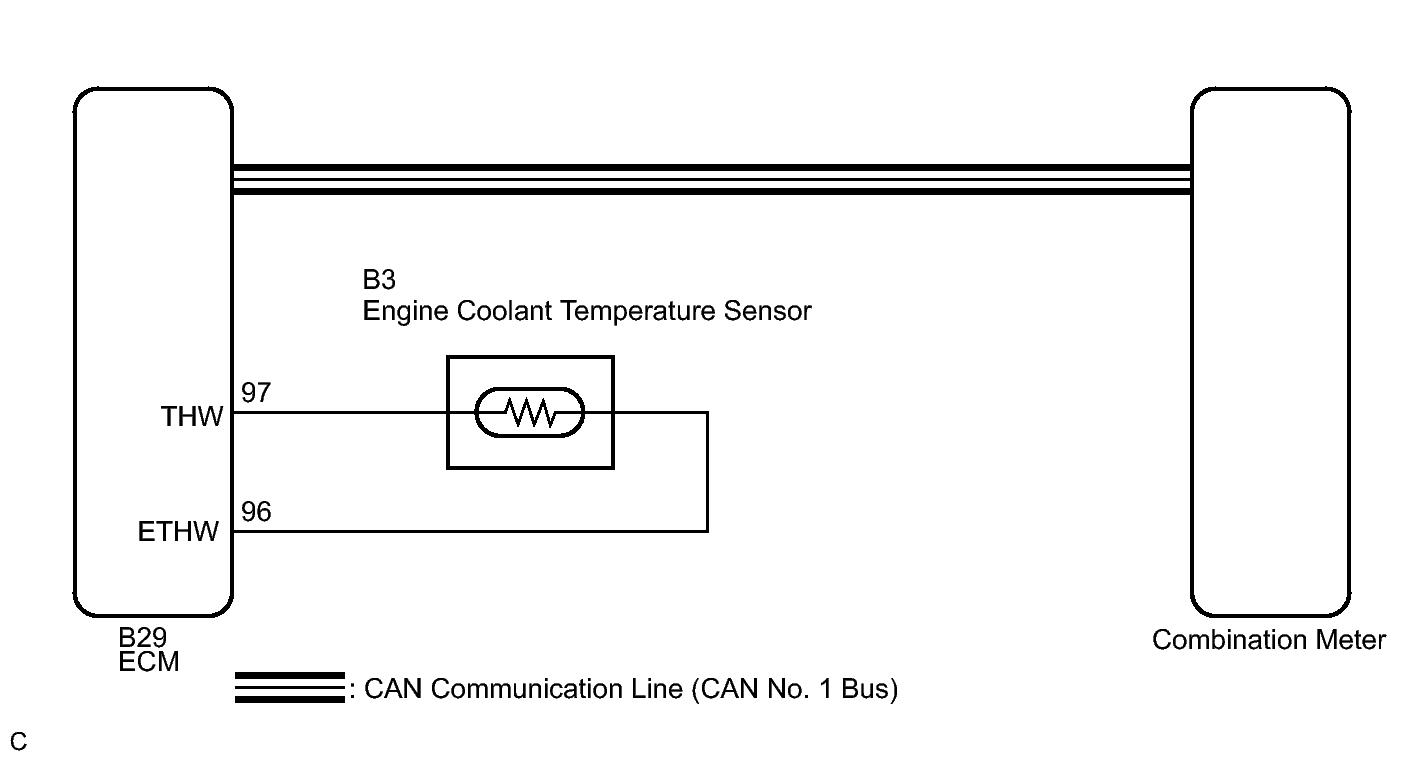

    Fig 1: Identifying Engine Coolant Temperature Receiver Gauge Circuit Diagram (For 2AZ-FE)
    GTY219225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 2ZR-FE
    Fig 2: Identifying Engine Coolant Temperature Receiver Gauge Circuit Diagram (For 2ZR-FE)
    GTY291427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
