Power Outlet (115V), Seat Belt Warning

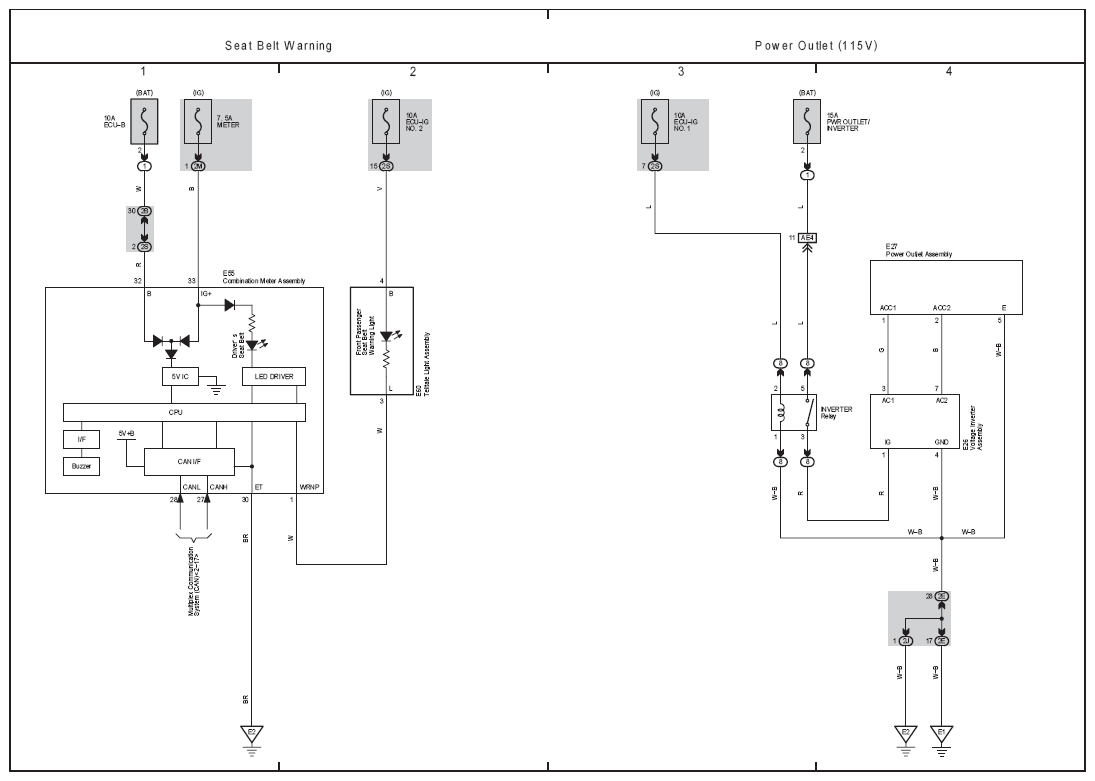

Fig 1: Power Outlet (115V) And Seat Belt Warning Electrical Wiring Diagram

G08799319

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
