Matrix Base, Automatic Trans
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Cigarette Lighter, Rear Window Defogger, Mirror Heater And Power Outlet (12V)
Cigarette Lighter, Rear Window Defogger, Mirror Heater And Power Outlet (12V)

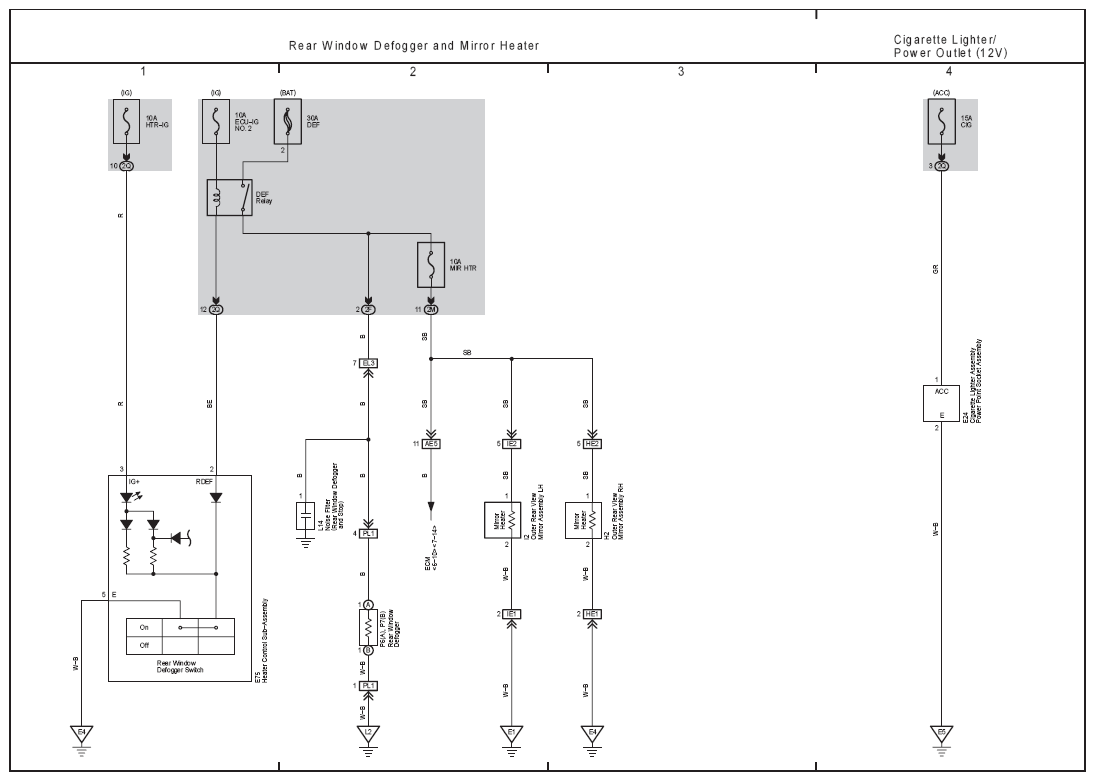

Fig 1: Cigarette Lighter, Rear Window Defogger, Mirror Heater And Power Outlet (12V) Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
