REAR DRIVE SHAFT ASSEMBLY (for 4WD): Components: Illustration

Fig 1: Identifying Rear Drive Shaft Assembly Replacement Components With Torque Specifications (For 4WD) (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

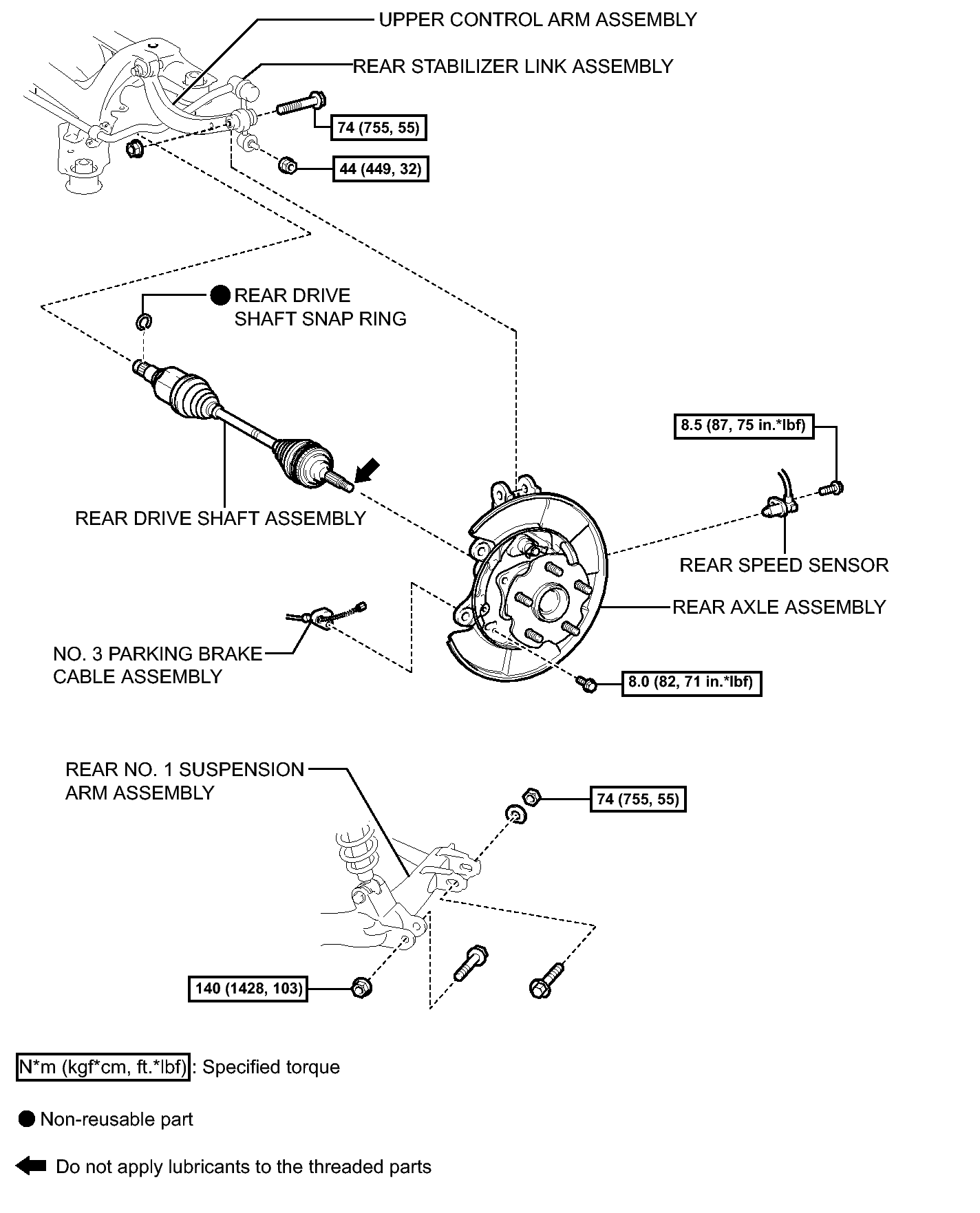

Fig 1: Identifying Rear Drive Shaft Assembly Replacement Components (For 4WD) (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

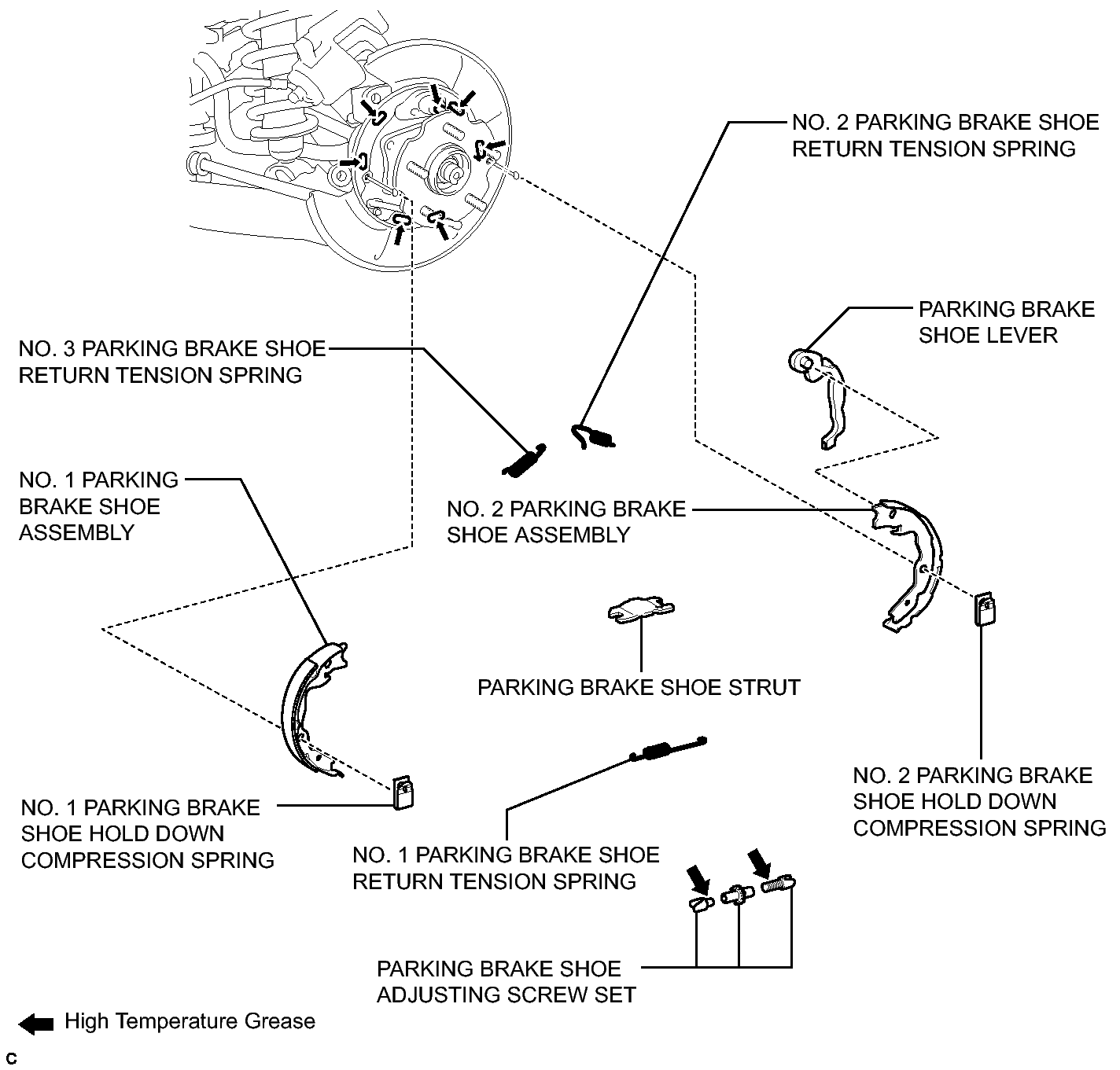

Fig 1: Identifying Rear Drive Shaft Assembly Replacement Components (For 4WD) (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

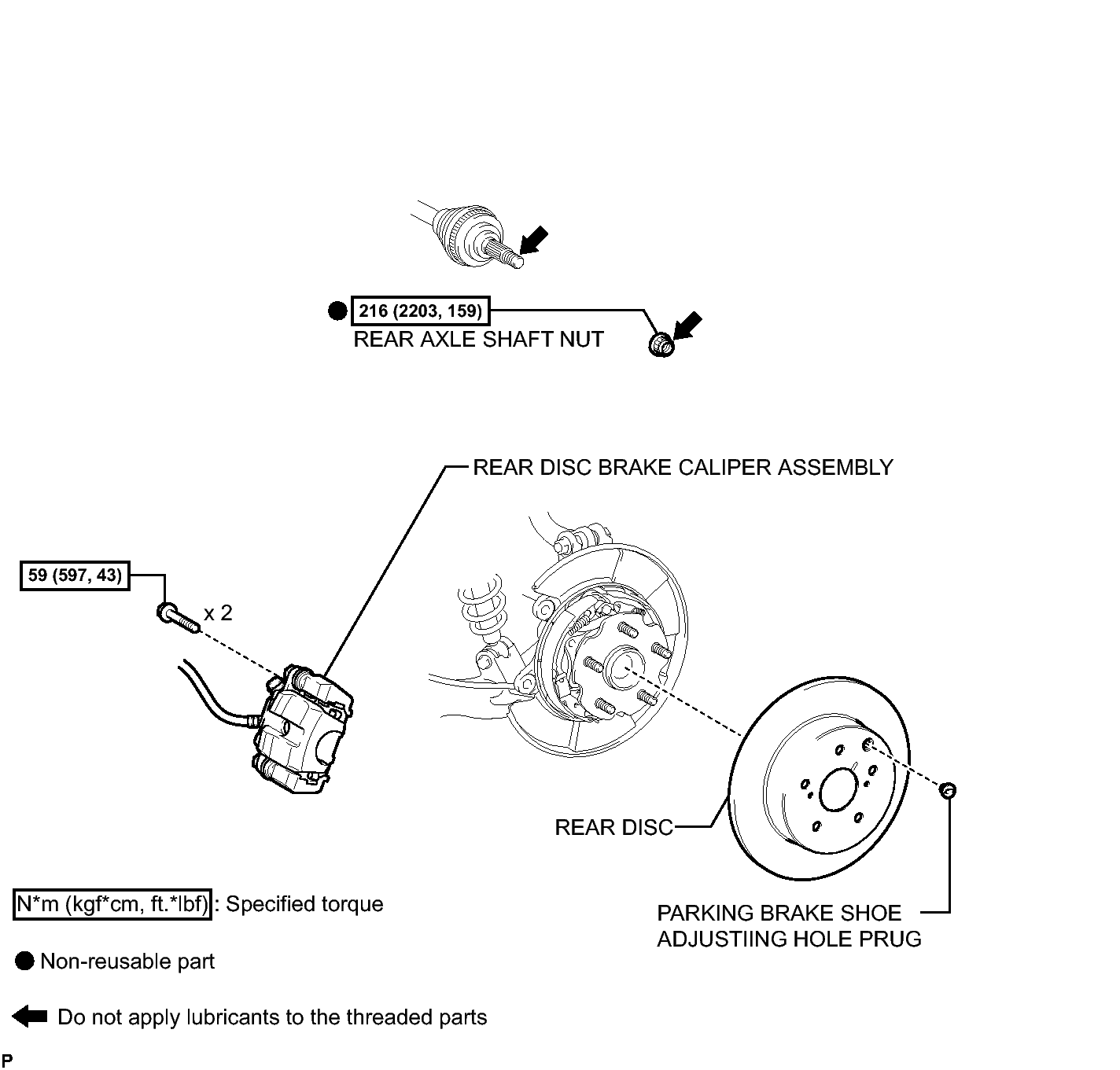

Fig 1: Identifying Rear Drive Shaft Assembly Replacement Components With Torque Specifications (For 4WD) (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

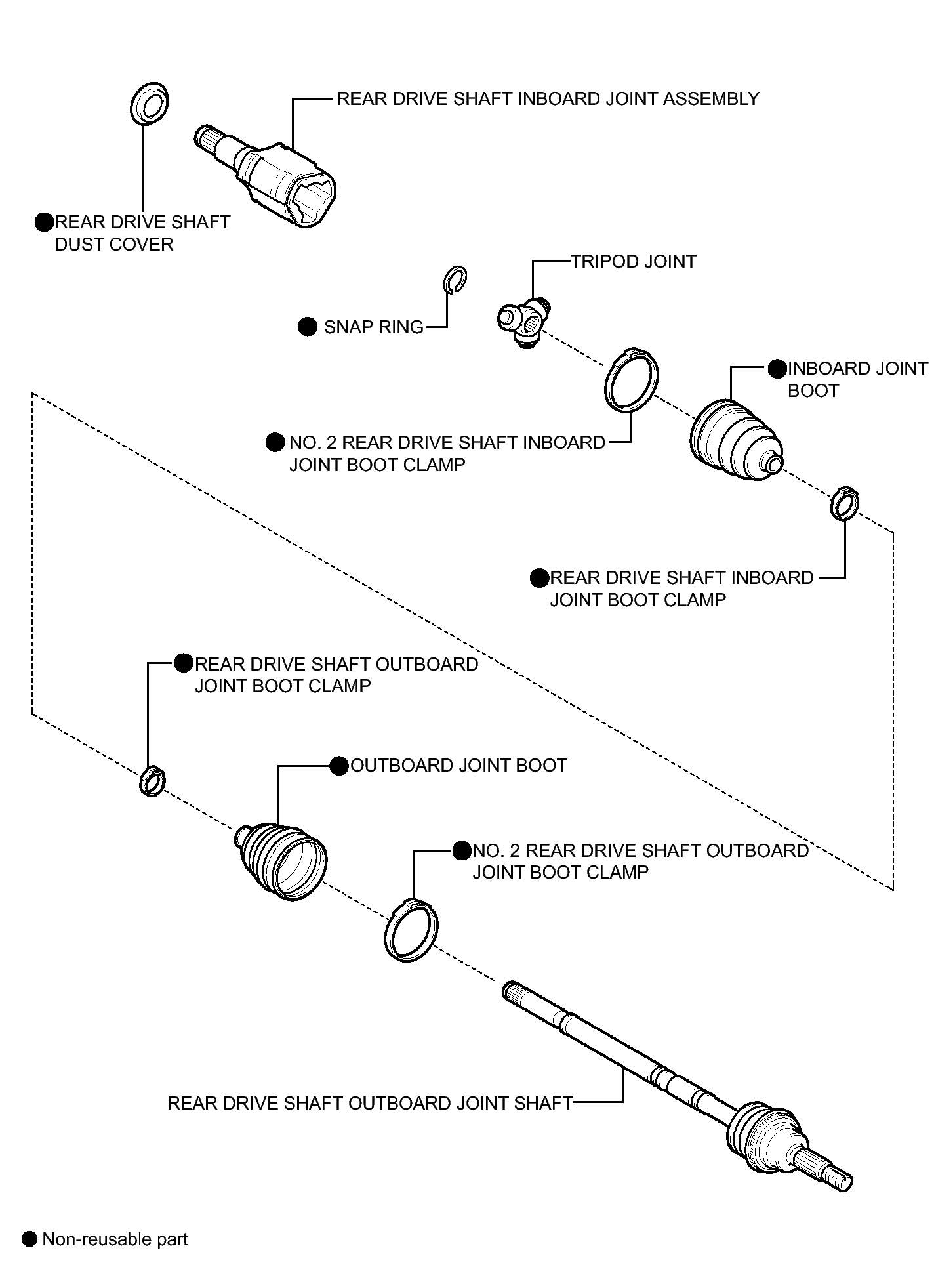

Fig 1: Identifying Rear Drive Shaft Assembly Replacement Components (For 4WD) (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
