FRONT DRIVE SHAFT ASSEMBLY (for 2ZR-FE): Components: Illustration

Fig 1: Identifying Front Drive Shaft Assembly Replacement Components (For 2ZR-FE) (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

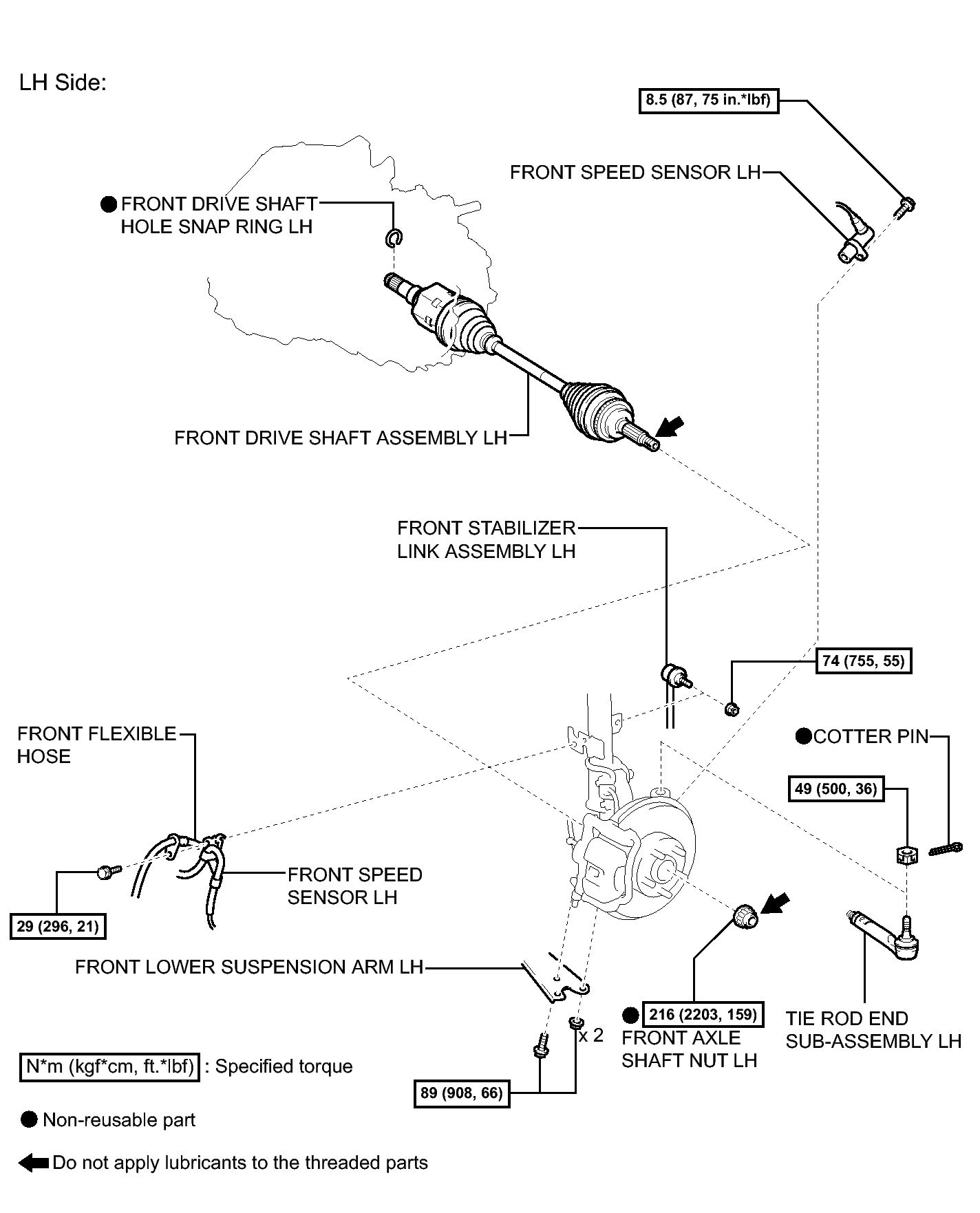

Fig 1: Identifying Front Drive Shaft Assembly Replacement Components With Torque Specifications (LH Side) (For 2ZR-FE) (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

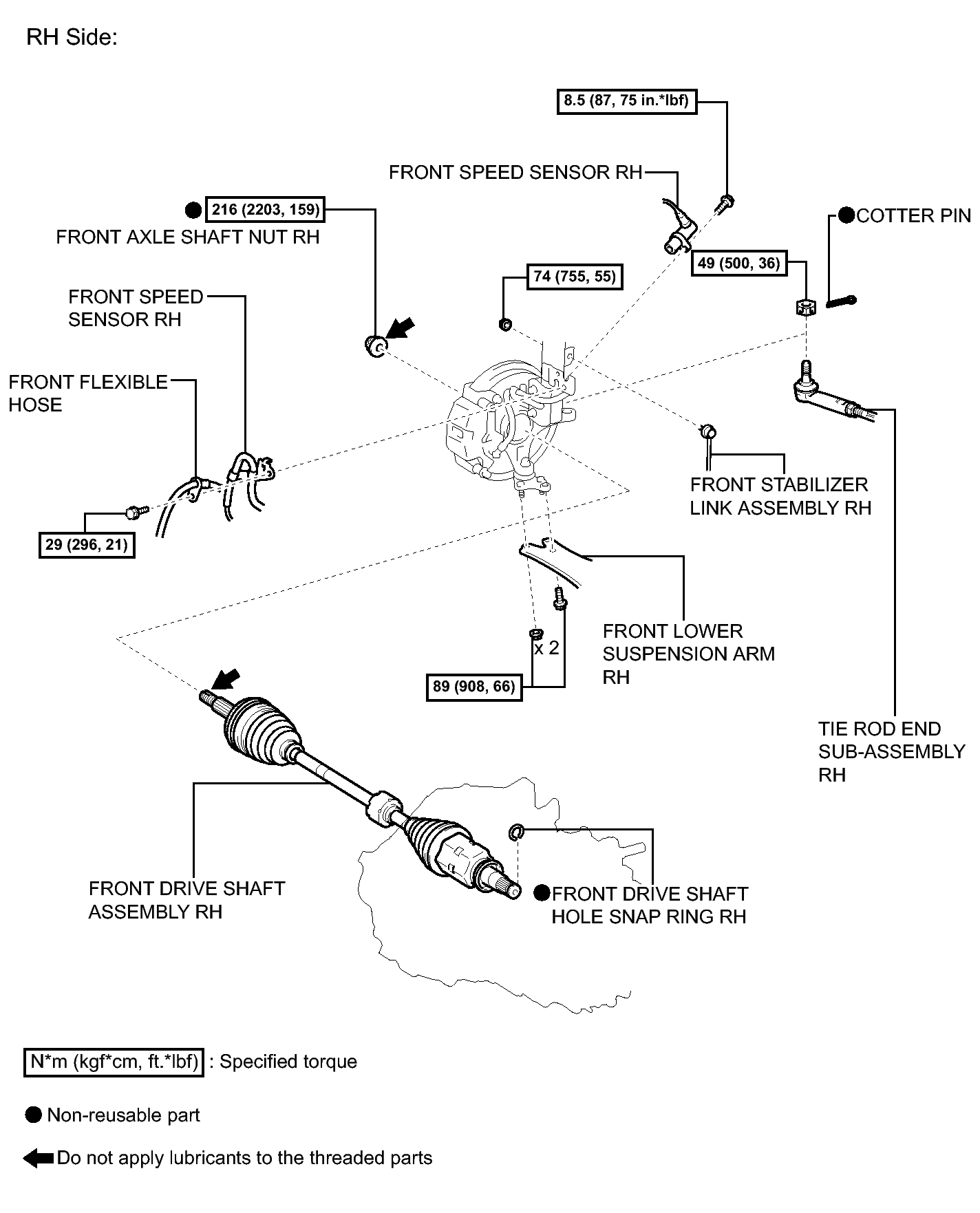

Fig 1: Identifying Front Drive Shaft Assembly Replacement Components With Torque Specifications (RH Side) (For 2ZR-FE) (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

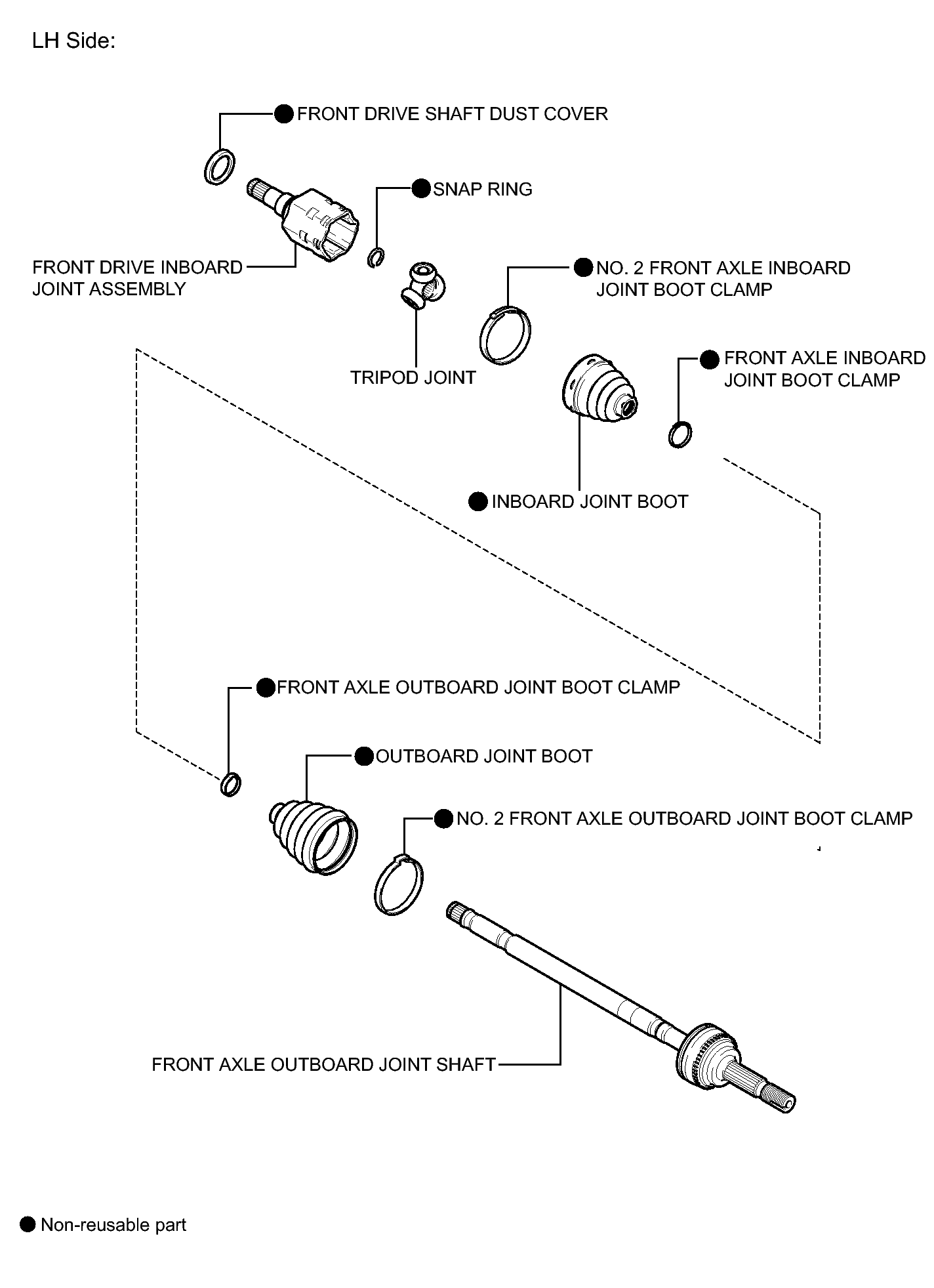

Fig 1: Identifying Front Drive Shaft Assembly Replacement Components (LH Side) (For 2ZR-FE) (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

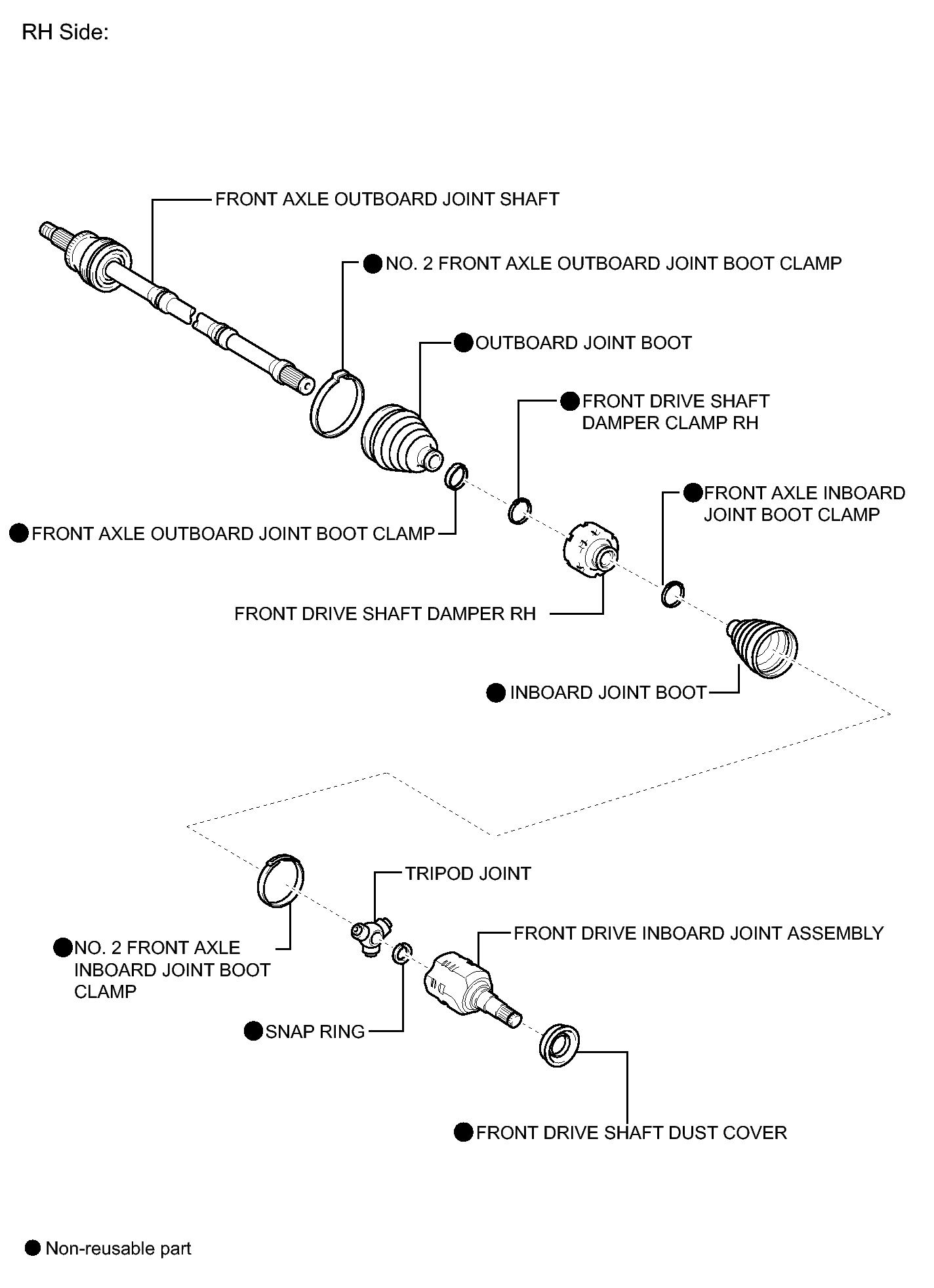

Fig 1: Identifying Front Drive Shaft Assembly Replacement Components (RH Side) (For 2ZR-FE) (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
