FRONT DRIVE SHAFT ASSEMBLY (for 2AZ-FE): Components: Illustration

Fig 1: Identifying Front Drive Shaft Assembly Replacement Components (For 2AZ-FE) (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

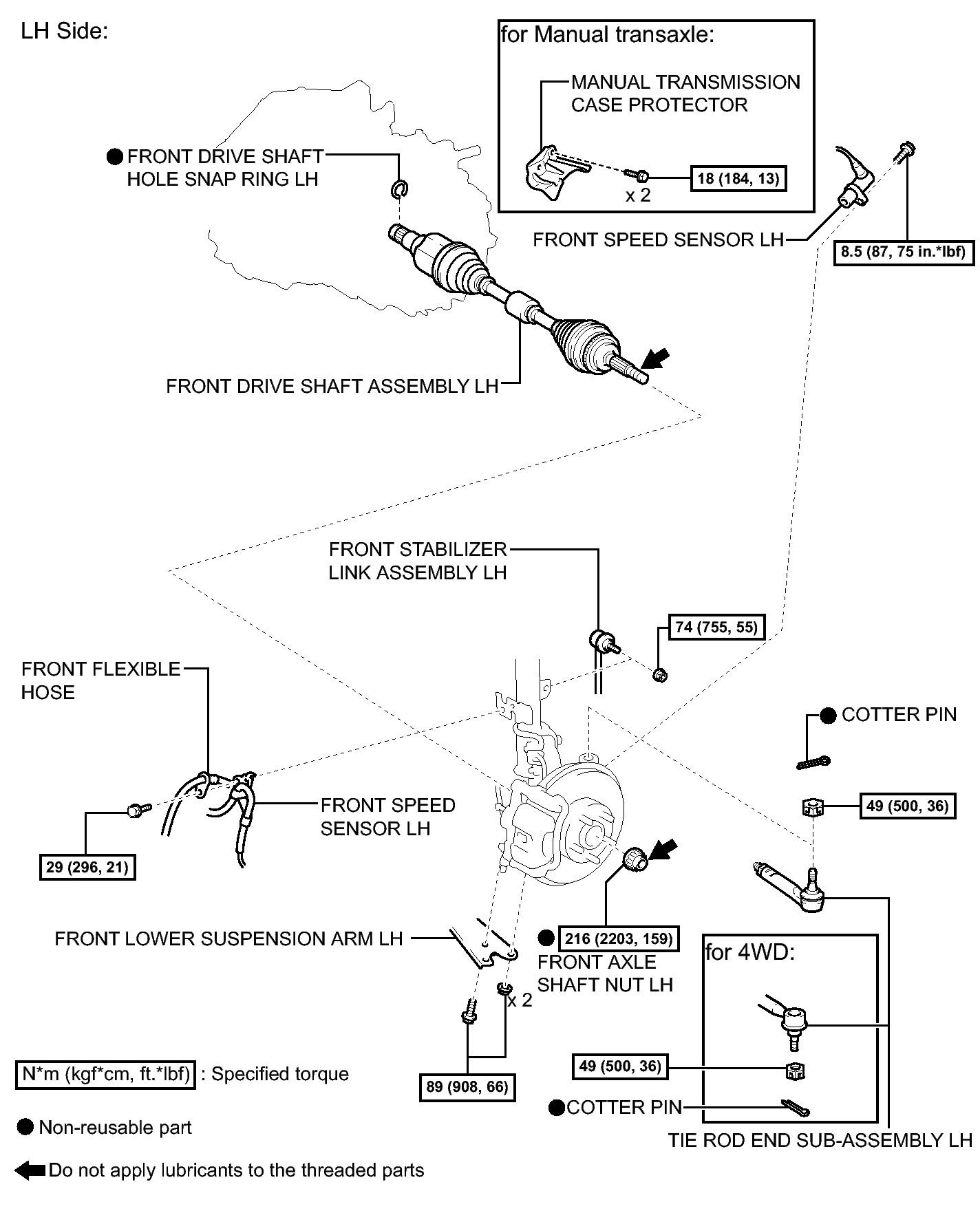

Fig 1: Identifying Front Drive Shaft Assembly Replacement Components With Torque Specifications (LH Side) (For 2AZ-FE) (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

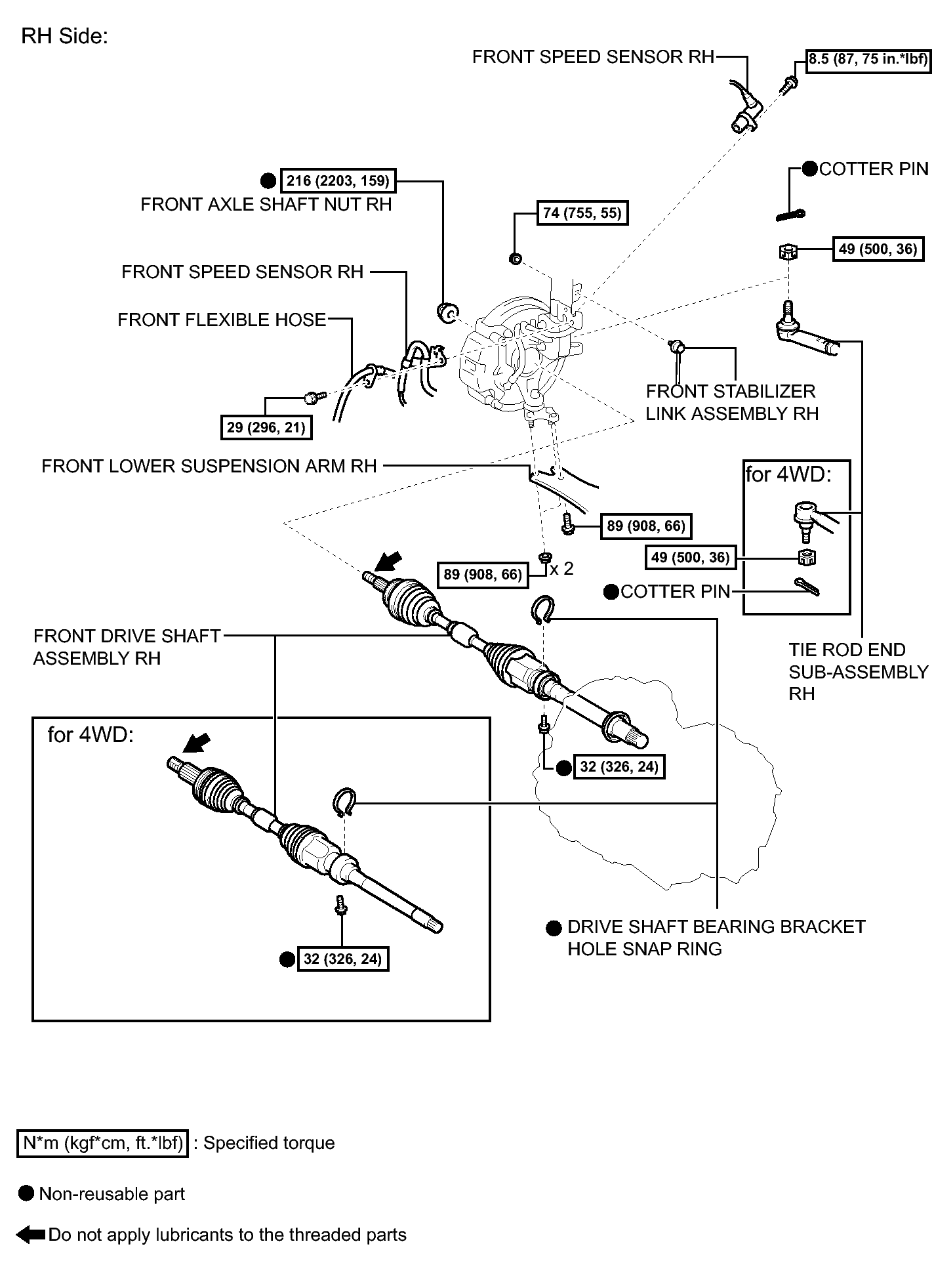

Fig 1: Identifying Front Drive Shaft Assembly Replacement Components With Torque Specifications (RH Side) (For 2AZ-FE) (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

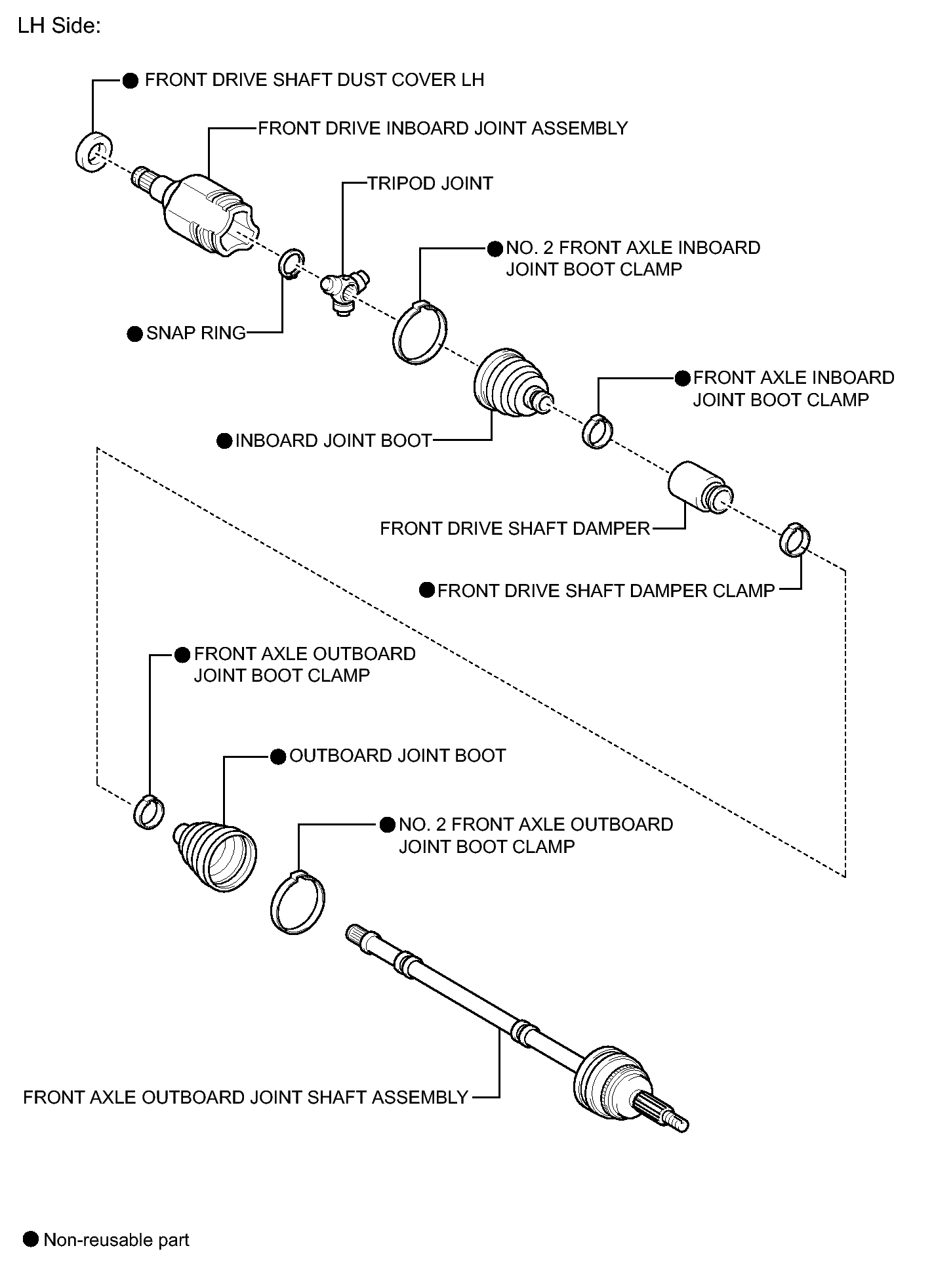

Fig 1: Identifying Front Drive Shaft Assembly Replacement Components (LH Side) (For 2AZ-FE) (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

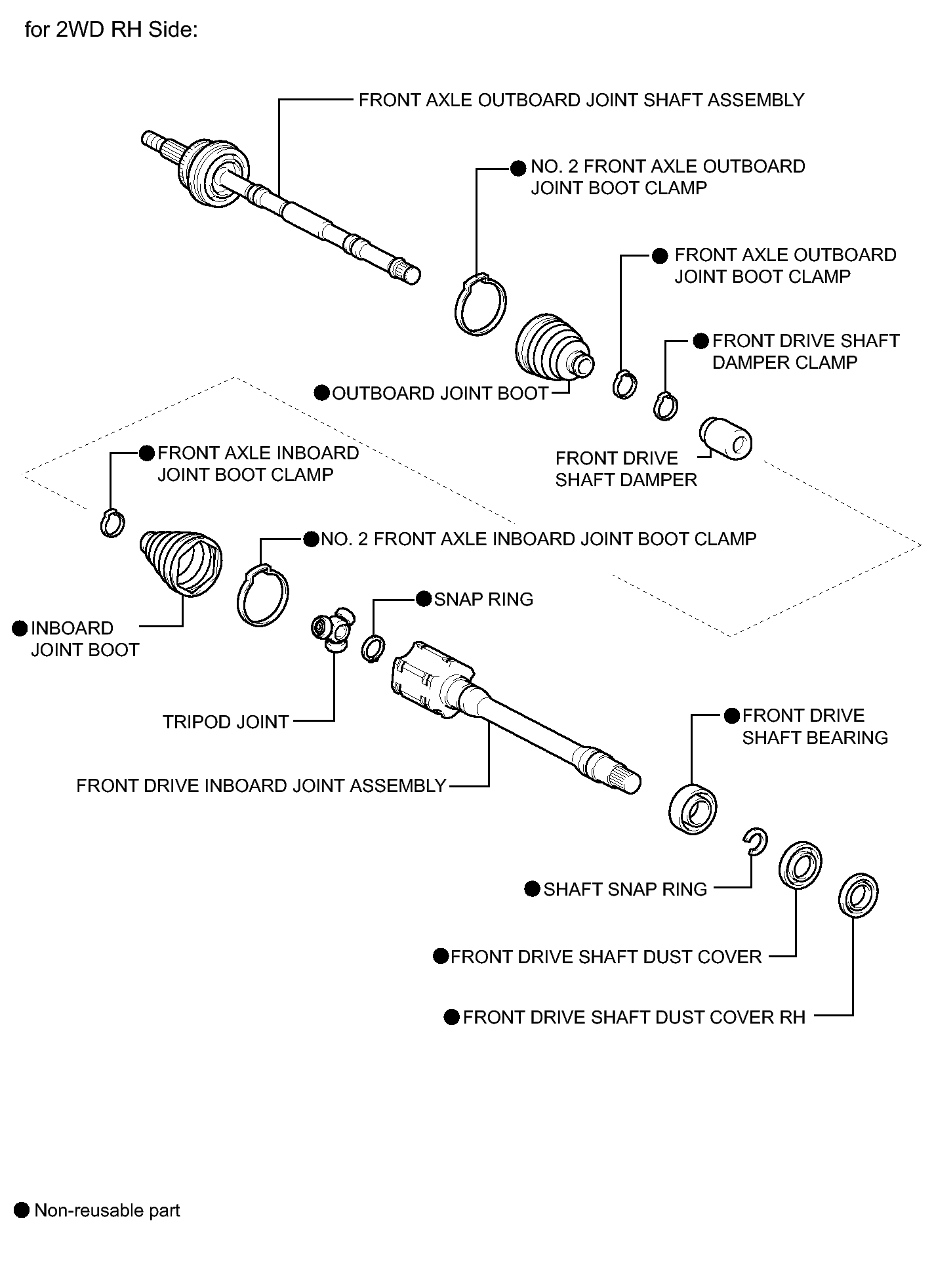

Fig 1: Identifying Front Drive Shaft Assembly Replacement Components (For 2WD RH Side) (For 2AZ-FE) (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

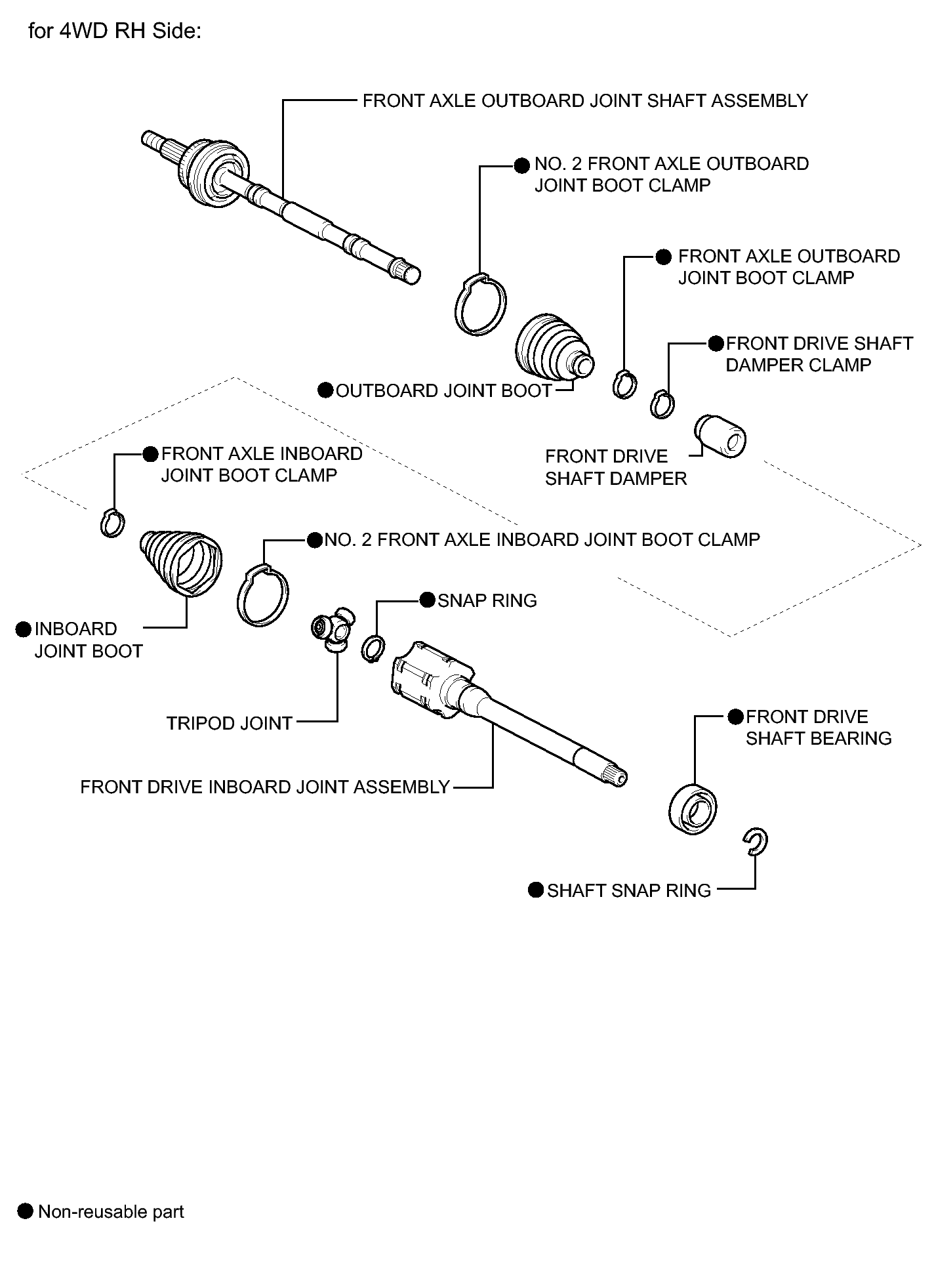

Fig 1: Identifying Front Drive Shaft Assembly Replacement Components (For 4WD RH Side) (For 2AZ-FE) (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
