Roof Drip Side Finish Molding: Components: Illustration

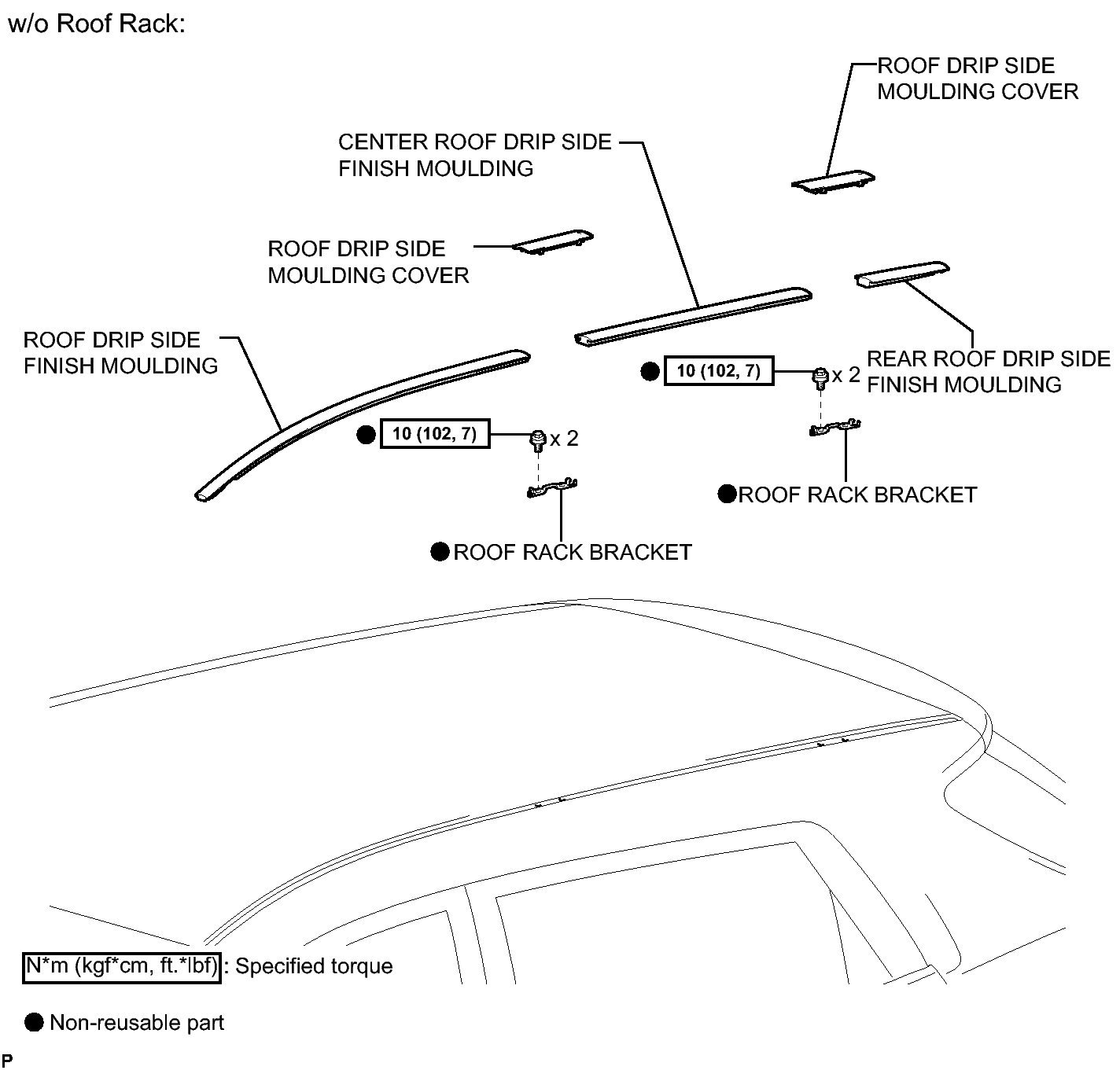

Fig 1: Identifying Roof Drip Side Finish Molding Replacement Components With Torque Specifications (w/o Roof Rack) (1 Of 2)
GTY242190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

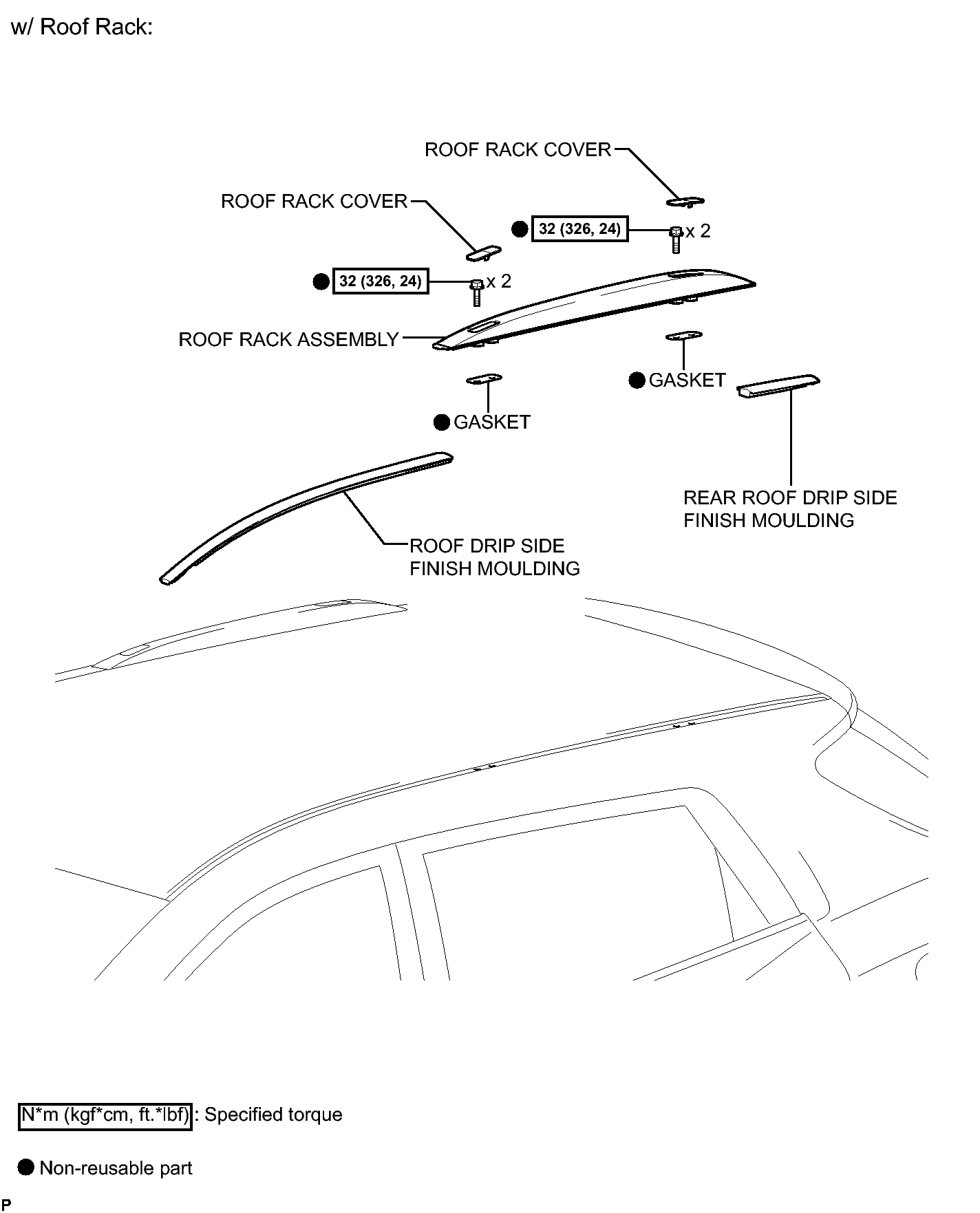

Fig 1: Identifying Roof Drip Side Finish Molding Replacement Components With Torque Specifications (w/ Roof Rack) (2 Of 2)
GTY242178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
