Rear Door Belt Molding: Components: Illustration

Fig 1: Identifying Rear Door Belt Molding Replacement Components (1 Of 2)
GTY233411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

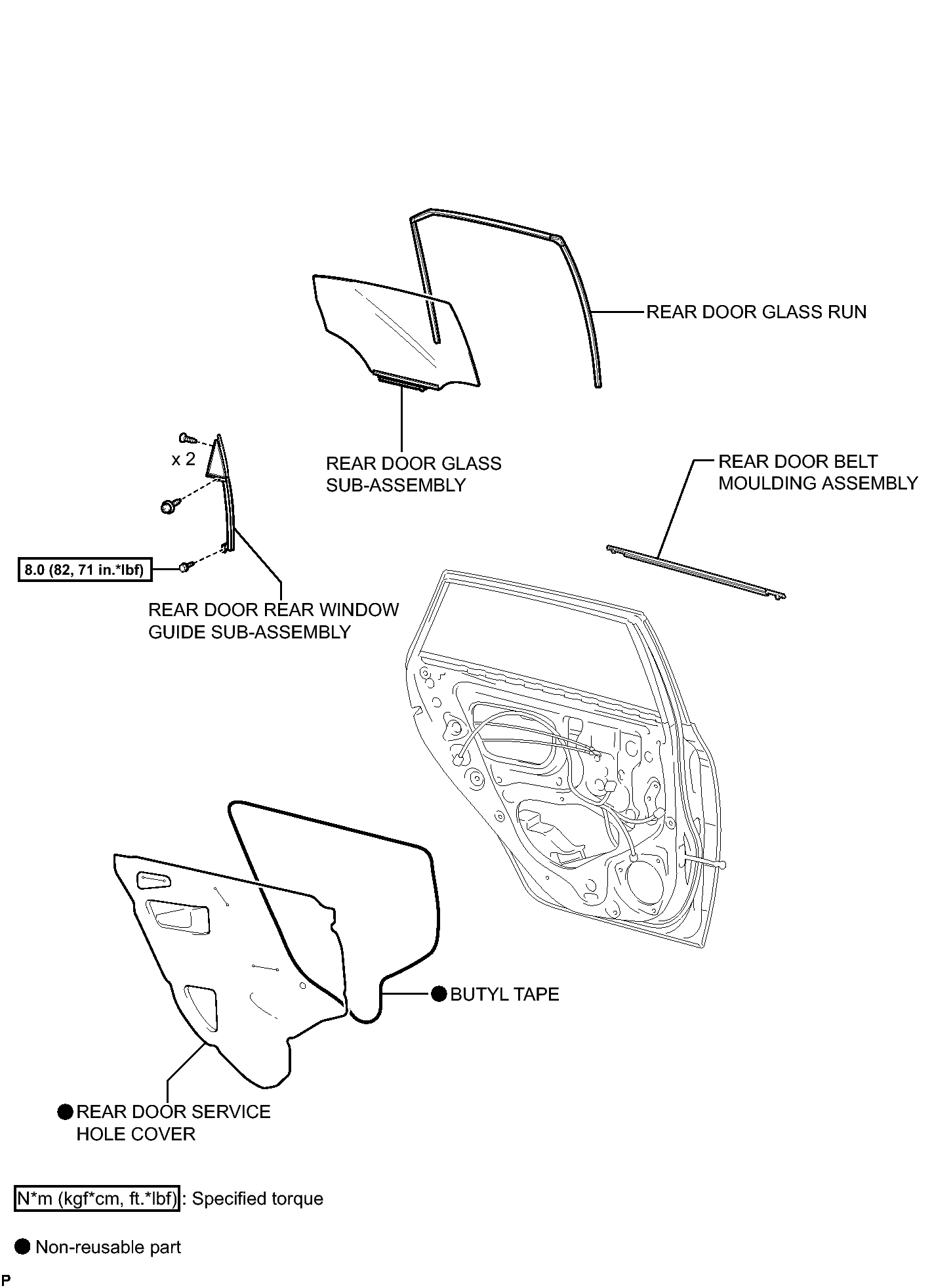

Fig 1: Identifying Rear Door Belt Molding Replacement Components With Torque Specifications (2 Of 2)
GTY231157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
