Front Passenger Side Seat Belt Warning Light Malfunction: Wiring Diagram

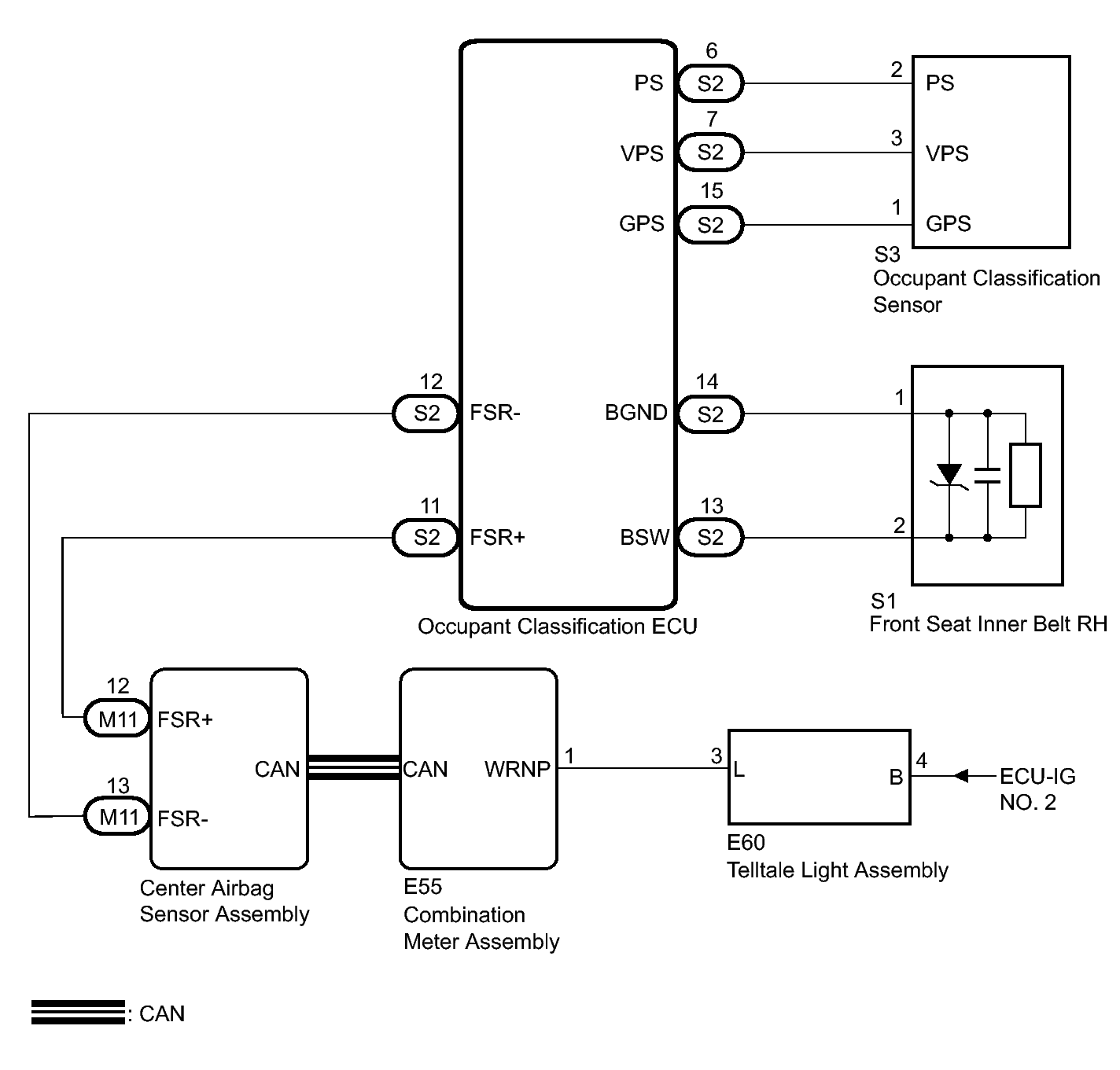

Fig 1: Identifying Front Passenger Side Seat Belt Warning Light Circuit Diagram

GTY241510

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
