FRONT SEAT ASSEMBLY (w/o Seatback Board): Components: Illustration

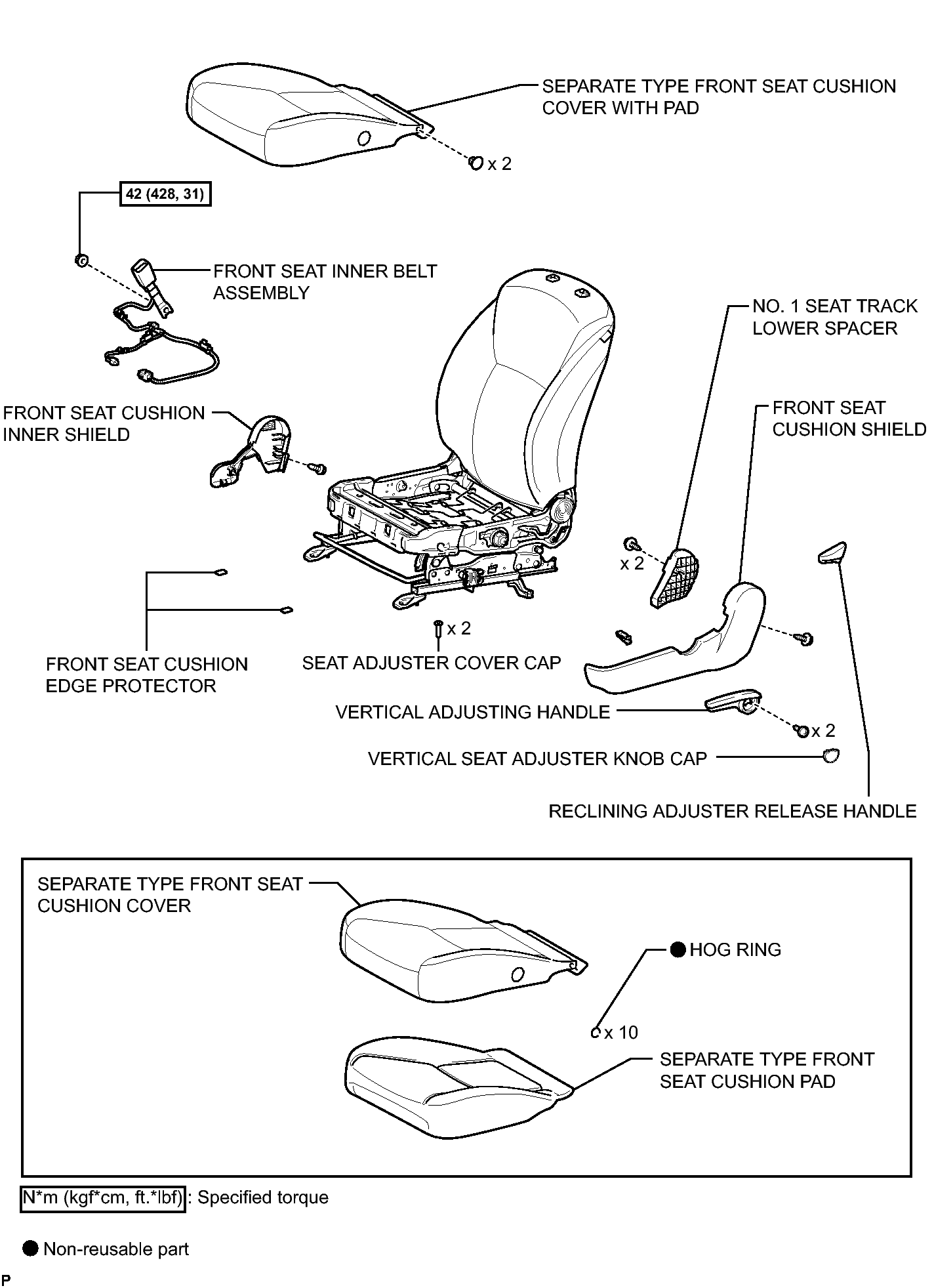

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specification (w/o Seatback Board) (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

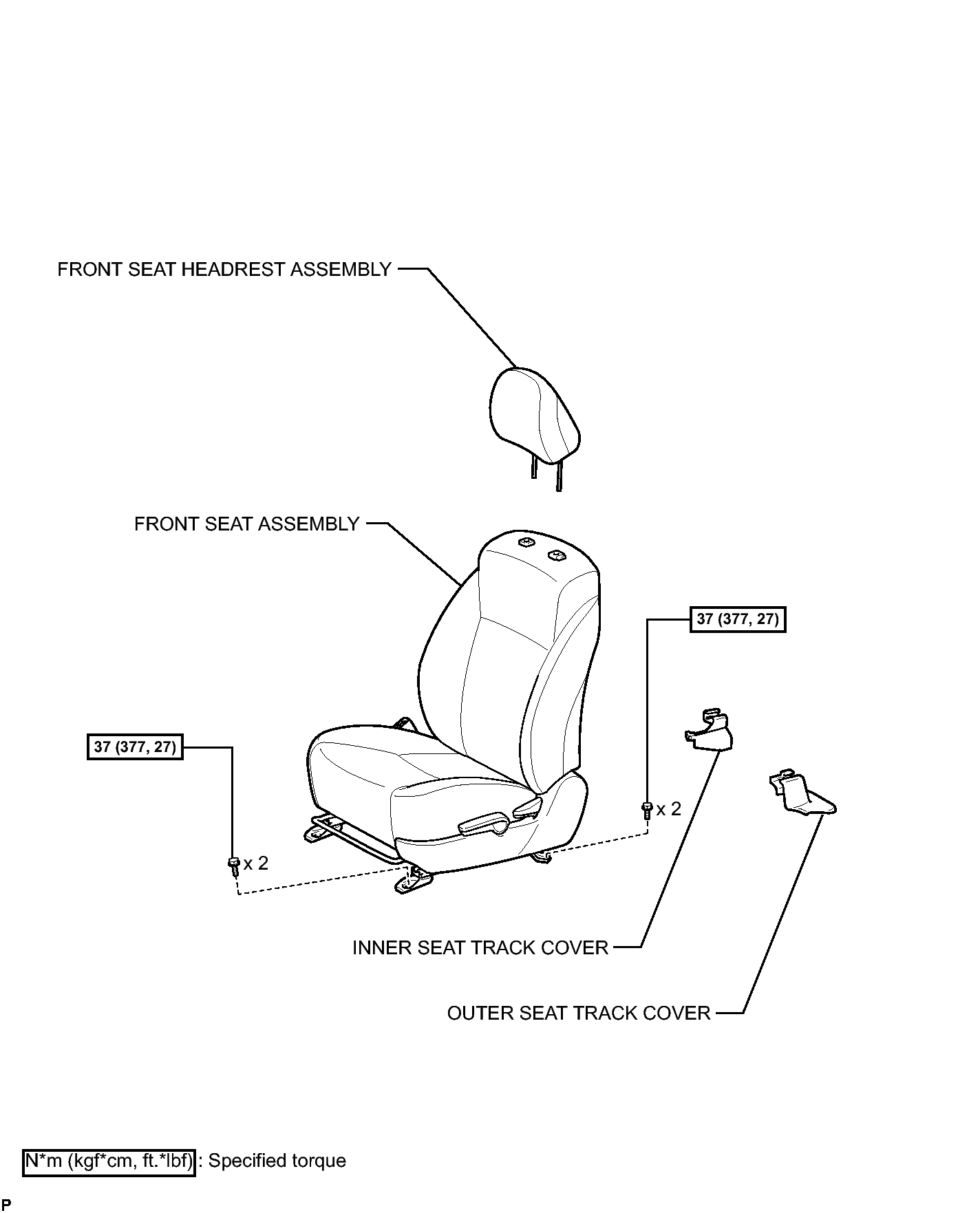

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specifications (w/o Seatback Board) (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

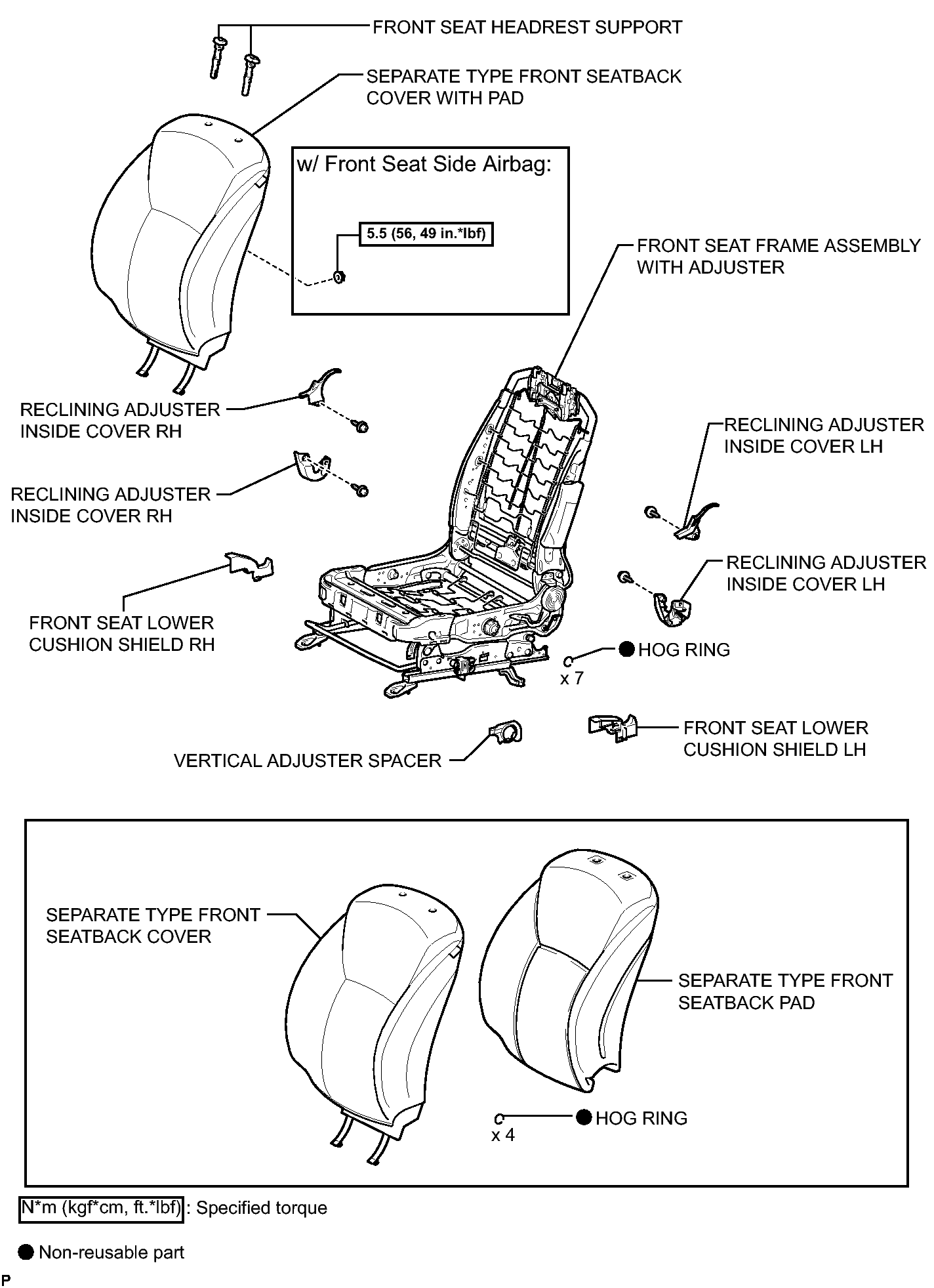

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specifications (w/o Seatback Board) (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

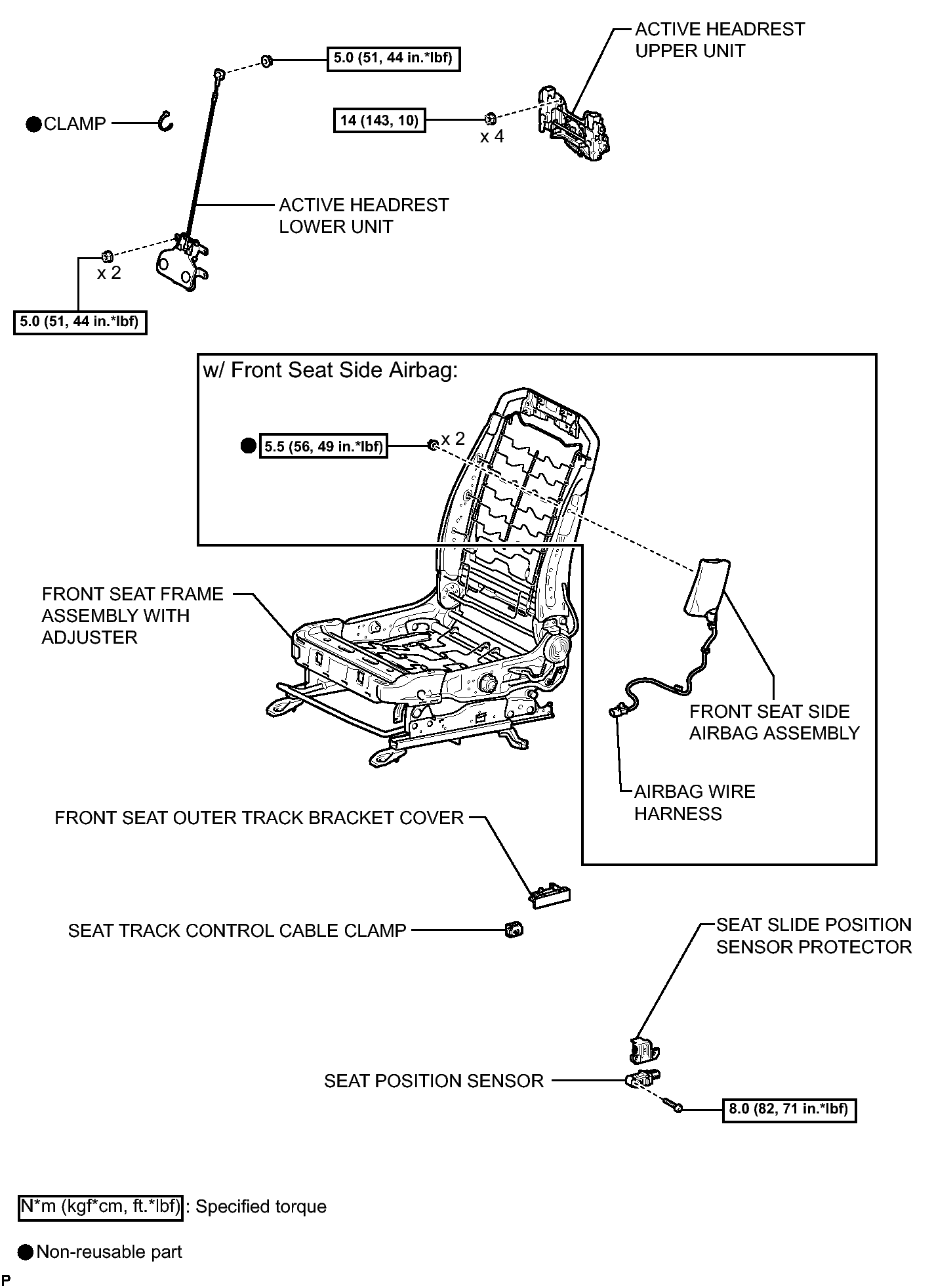

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specifications (w/o Seatback Board) (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

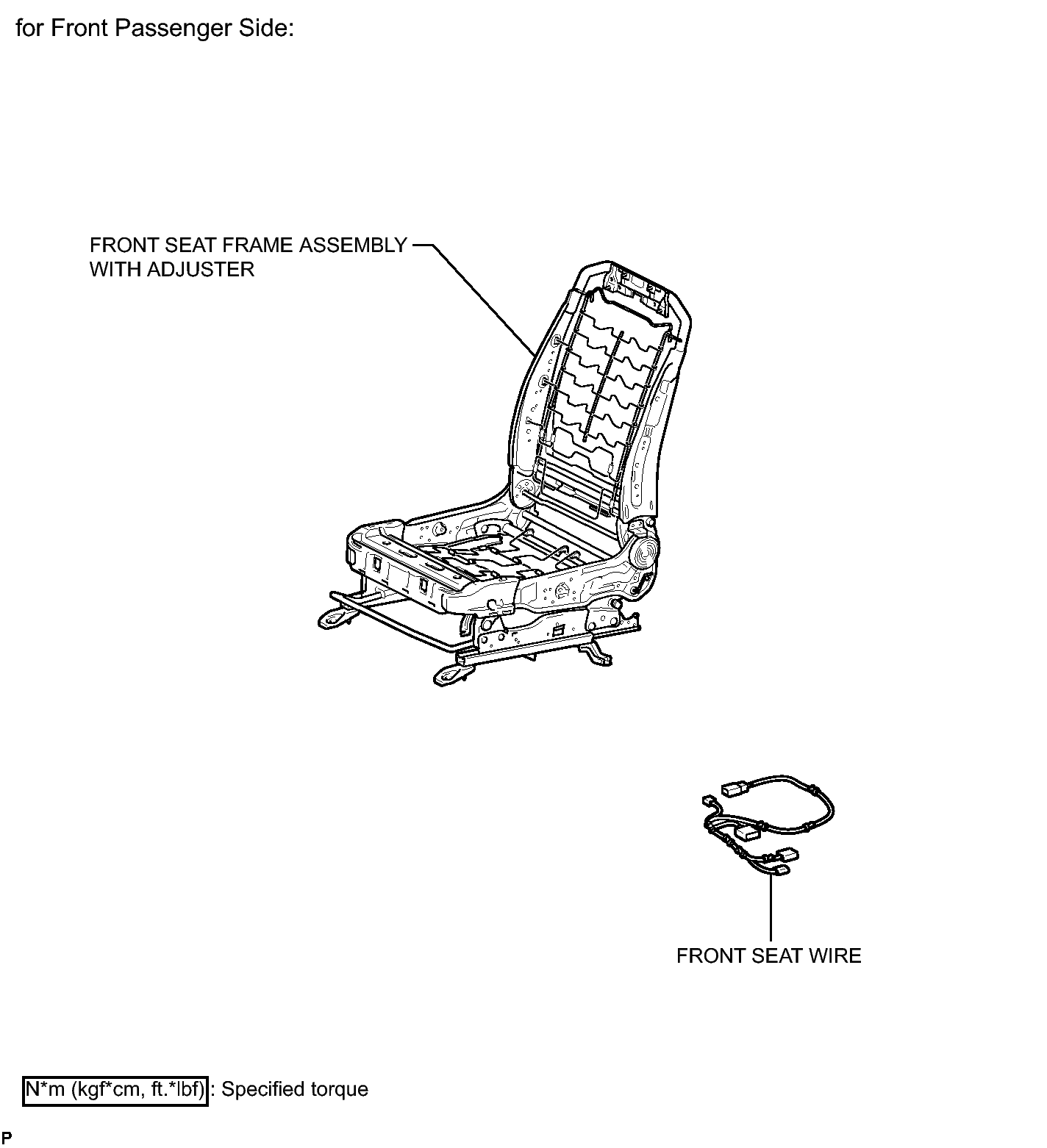

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specifications (Front Passenger Side) (w/o Seatback Board) (5 Of 5)
