Parts Location: Illustration

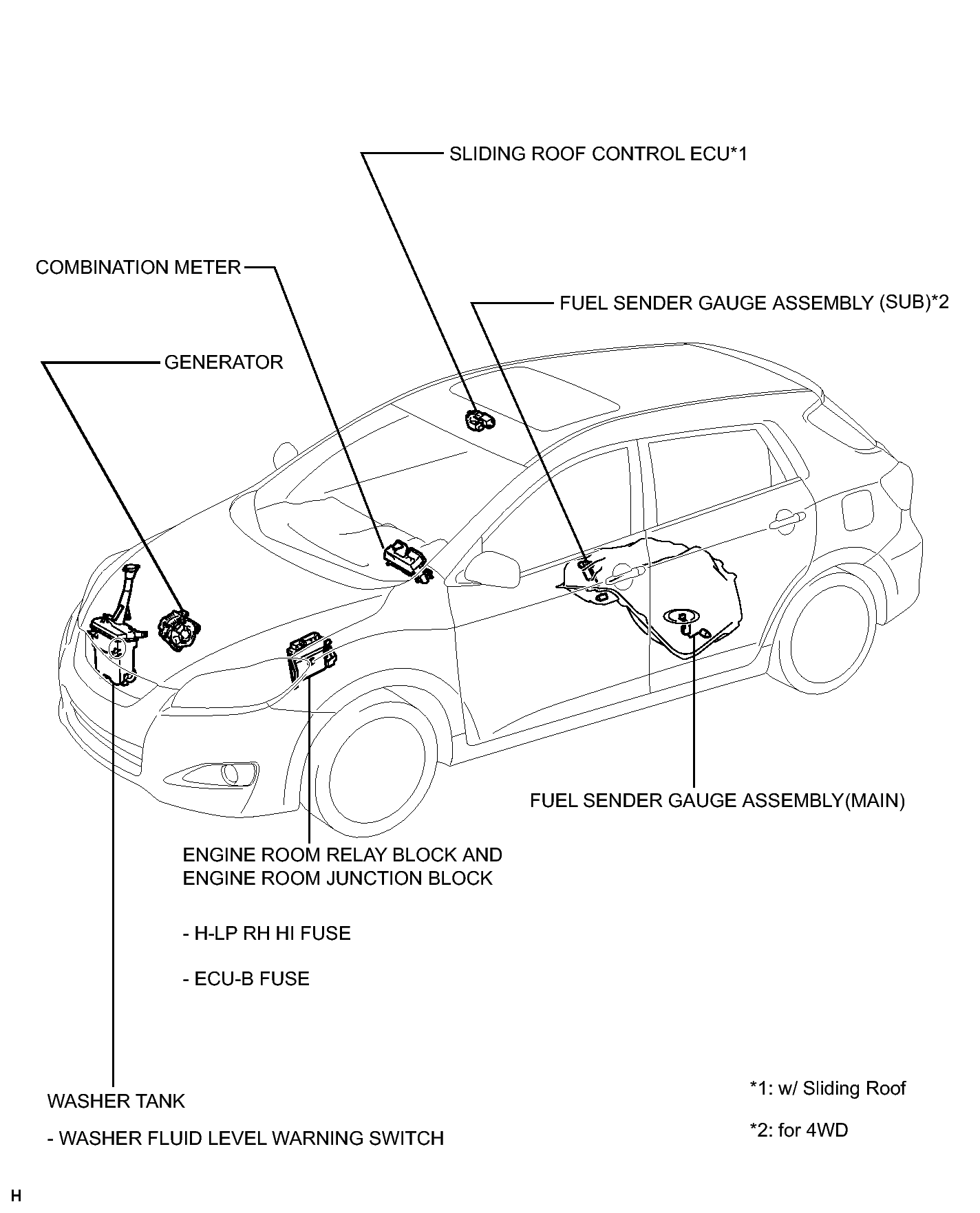

Fig 1: Identifying Meter & Gauge System Components Location (1 Of 3)
GTY319366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

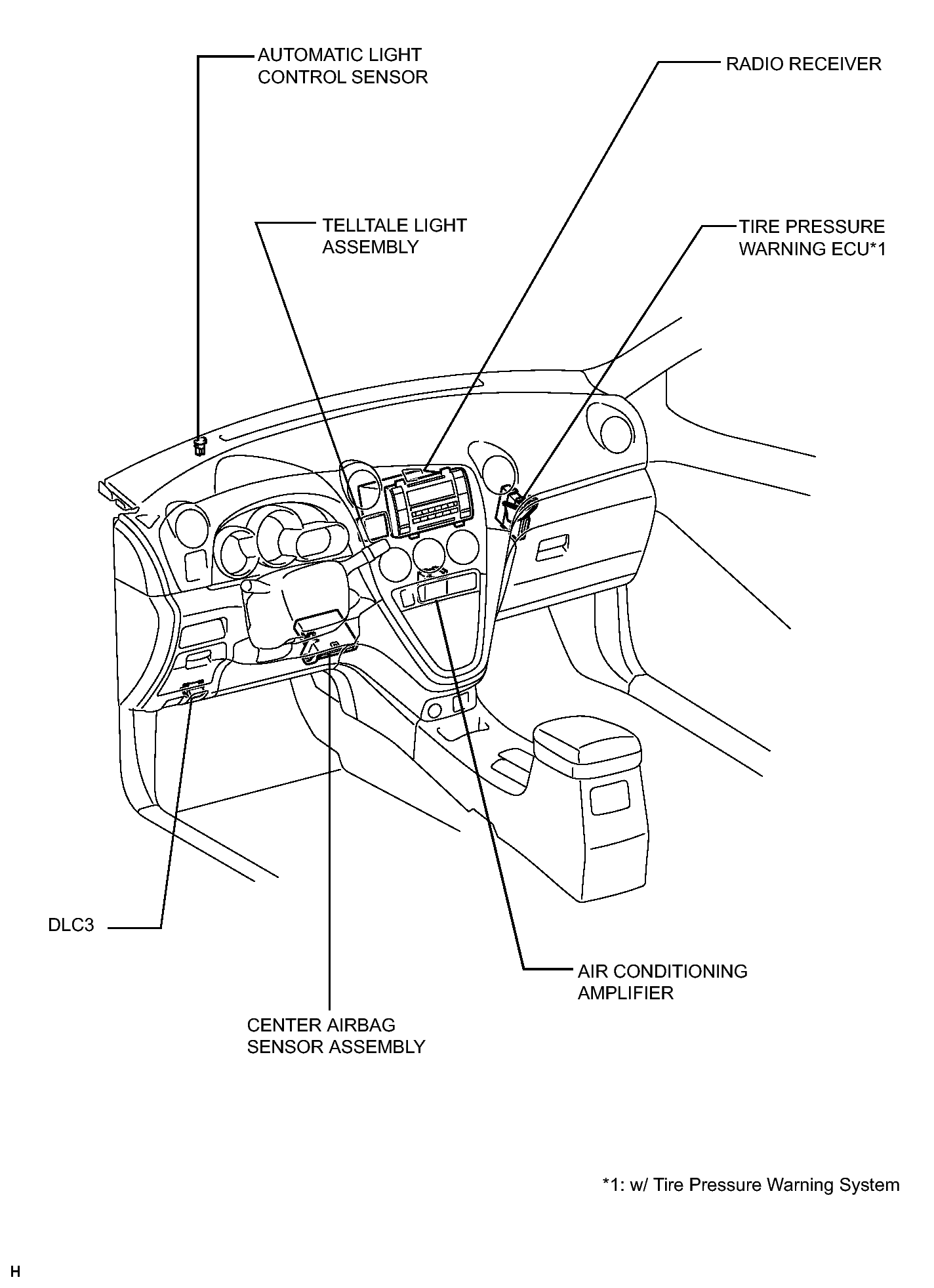

Fig 1: Identifying Meter & Gauge System Components Location (2 Of 3)
GTY228733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

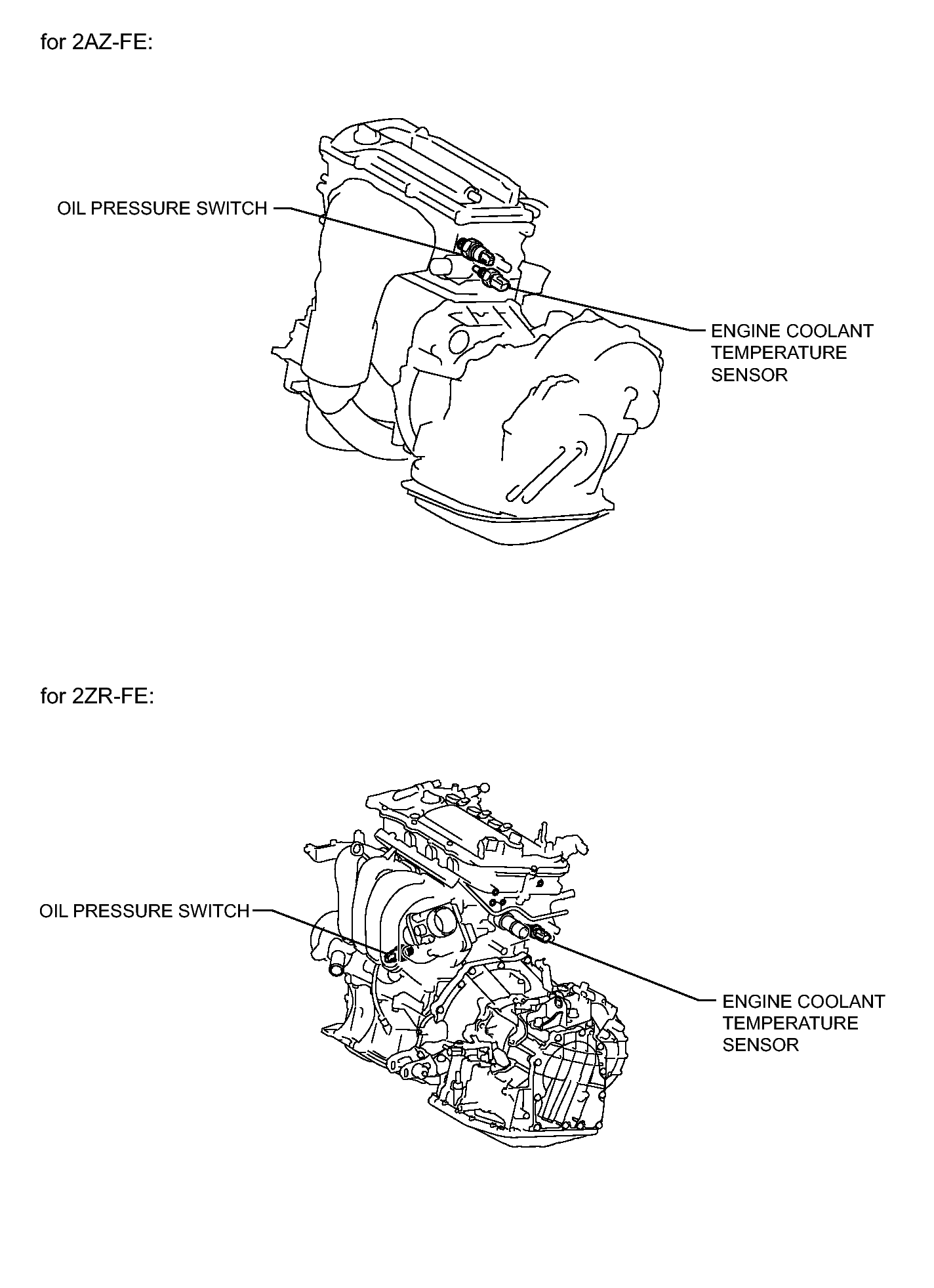

Fig 1: Identifying Meter & Gauge System Components Location (3 Of 3)
GTY247084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
