DTC C2176/76: Receiver Error: Wiring Diagram

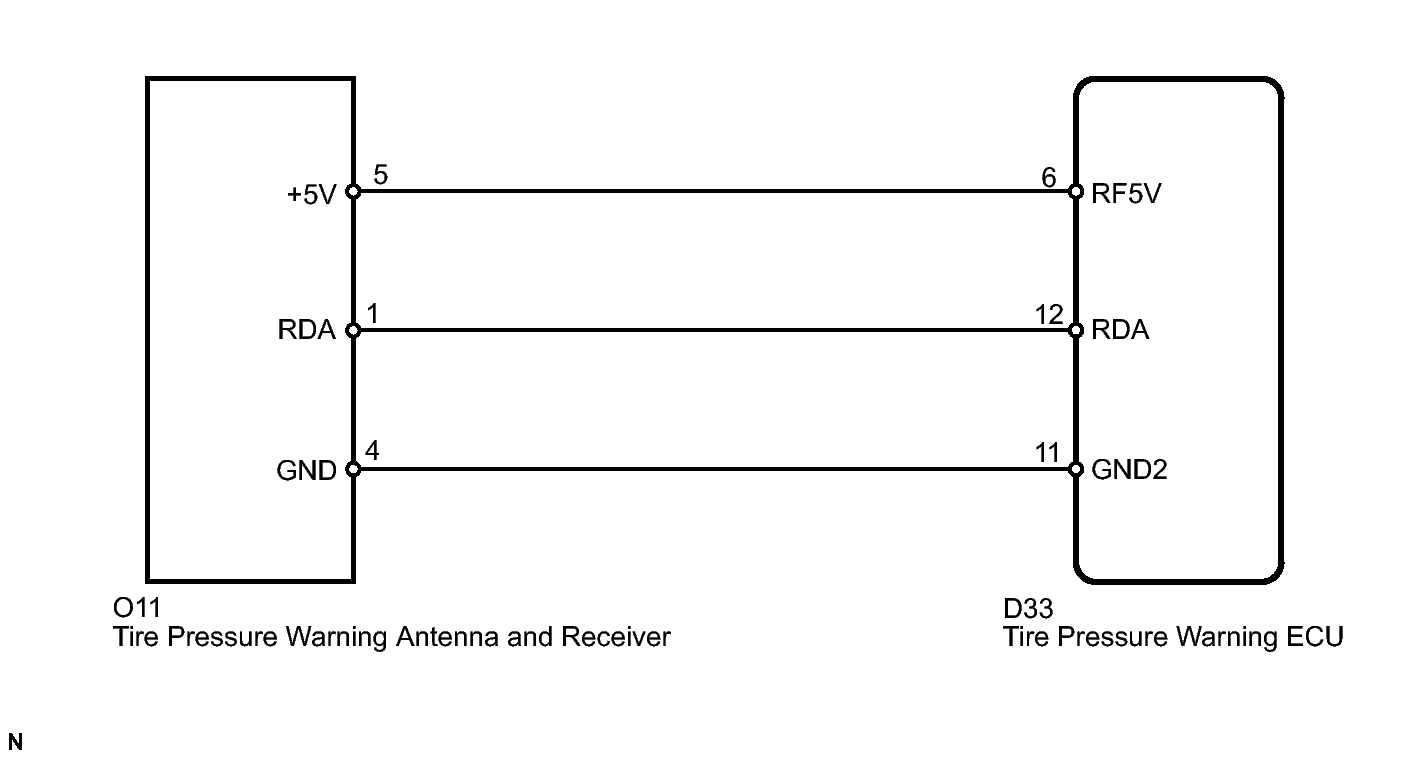

Fig 1: Tire Pressure Warning Antenna & Receiver Circuit Wiring Diagram
GTY167406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
