DTC C2176/76: Receiver Error: Procedure

1. Disconnect the D33 ECU connector.

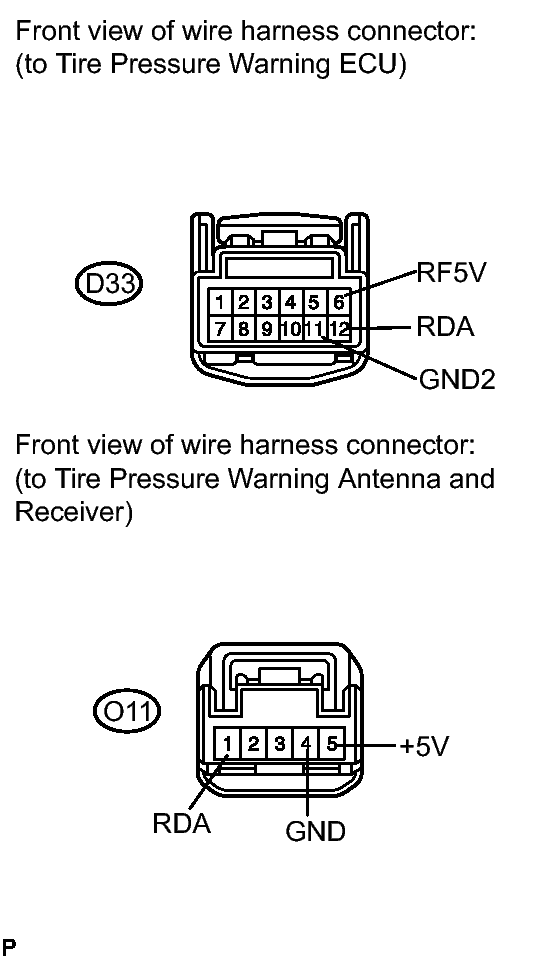

   Fig 1: Checking Harness And Connector (ECU - Receiver)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the O11 receiver connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   D33-6 (RF5V) - O11-5 (+5V)	Always	Below 1 Ω
   D33-12 (RDA) - O11-1 (RDA)
   D33-11 (GND2) - O11-4 (GND)
   D33-6 (RF5V) or O11-5 (+5V) - Body ground		10 kΩ or higher
   D33-11 (GND2) or O11-4 (GND) - Body ground
   D33-12 (RDA) or O11-1 (RDA) - Body ground

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the D33 ECU connector.
   Fig 2: Checking Voltage Of Tire Pressure Warning ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the ignition switch on (IG).
3. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Switch Condition	Specified Condition
   D33-6 (RF5V) - D33-11 (GND2)	Ignition switch on (IG)	4.5 to 5.5 V

NG → See step   3

OK → See step   4
