Tire Pressure Warning Reset Switch Circuit: Procedure

1. Perform the tire pressure warning reset switch test in TEST MODE PROCEDURE. Refer to TEST MODE PROCEDURE .

   OK

   Reset switch ON

   Tire pressure warning light turns on.

   Reset switch OFF

   Tire pressure warning light blinks at 0.125 second.

NG → See step   2

OK → See step   6

1. Remove the tire pressure warning reset switch. Refer to REMOVAL .
   Fig 1: Measuring Resistance Of Tire Pressure Warning Reset Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   D32-1 - D32-2	ON	Below 1 Ω
   	OFF	10 kΩ or higher

NG → See step   4

OK: Go to next step

1. Disconnect the D32 reset switch connector.

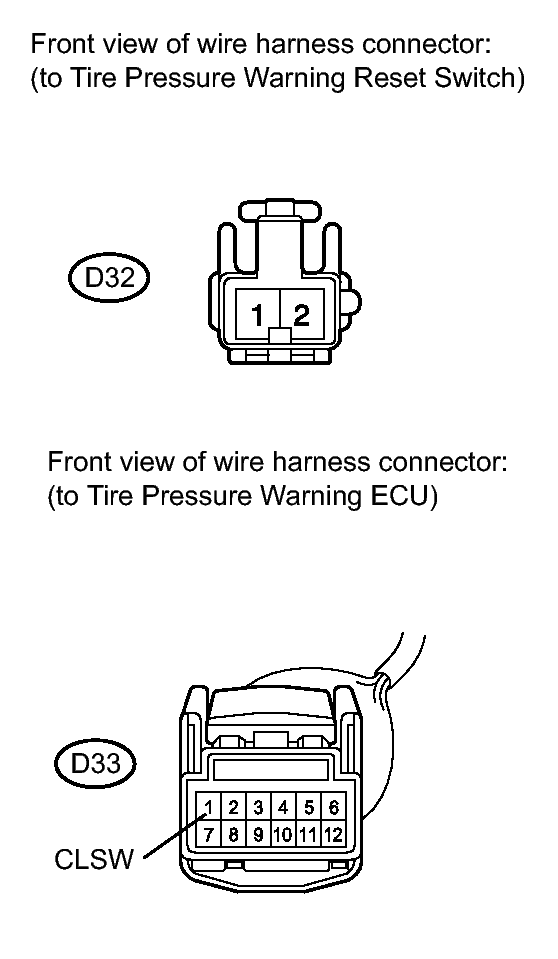

   Fig 2: Checking Harness And Connector (Reset Switch - ECU And Body Ground)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the D33 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   D33-1 (CLSW) - D32-1	Always	Below 1 Ω
   D33-1 (CLSW) - Body ground	Always	10 kΩ or higher
   D32-2 - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   5
