Rear Strut Rod: Components: Illustration

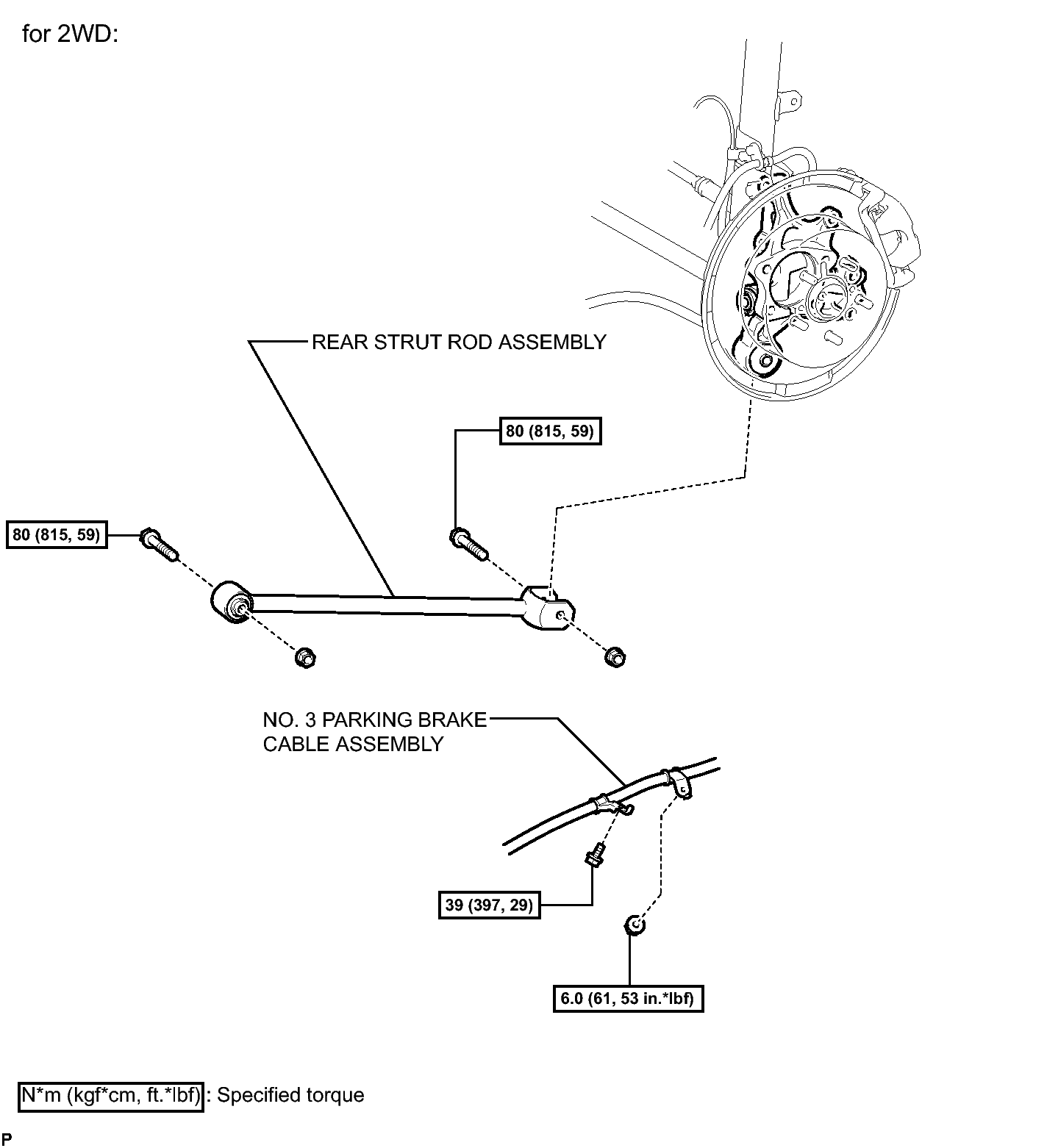

Fig 1: Identifying Rear Strut Rod Replacement Components With Torque Specifications (1 Of 2)
GTY204274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

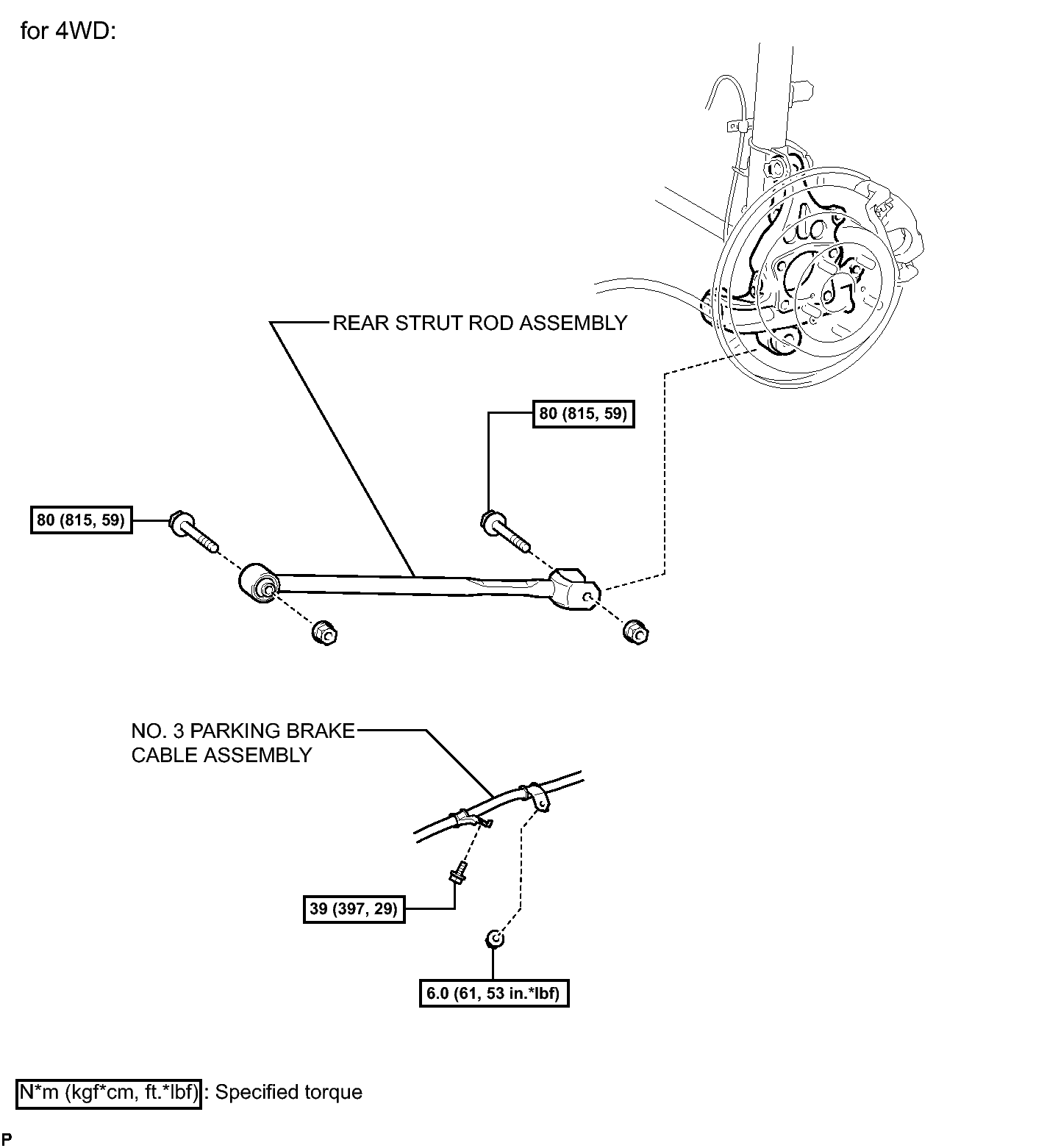

Fig 1: Identifying Rear Strut Rod Replacement Components With Torque Specifications (2 Of 2)
GTY203964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
