REAR SUSPENSION MEMBER (for 2WD): Components: Illustration

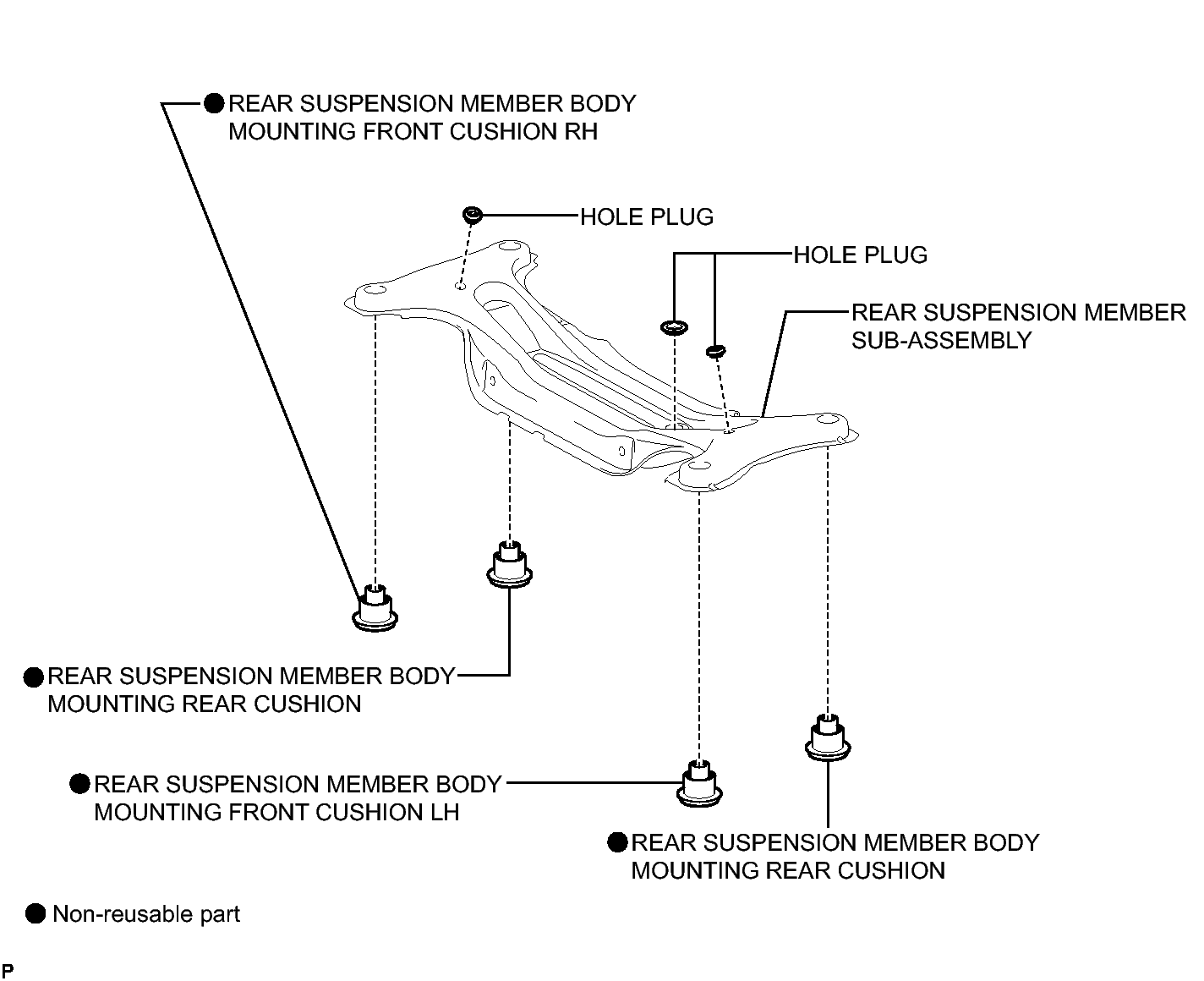

Fig 1: Identifying Rear Suspension Member (For 2WD) Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Suspension Member (For 2WD) Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

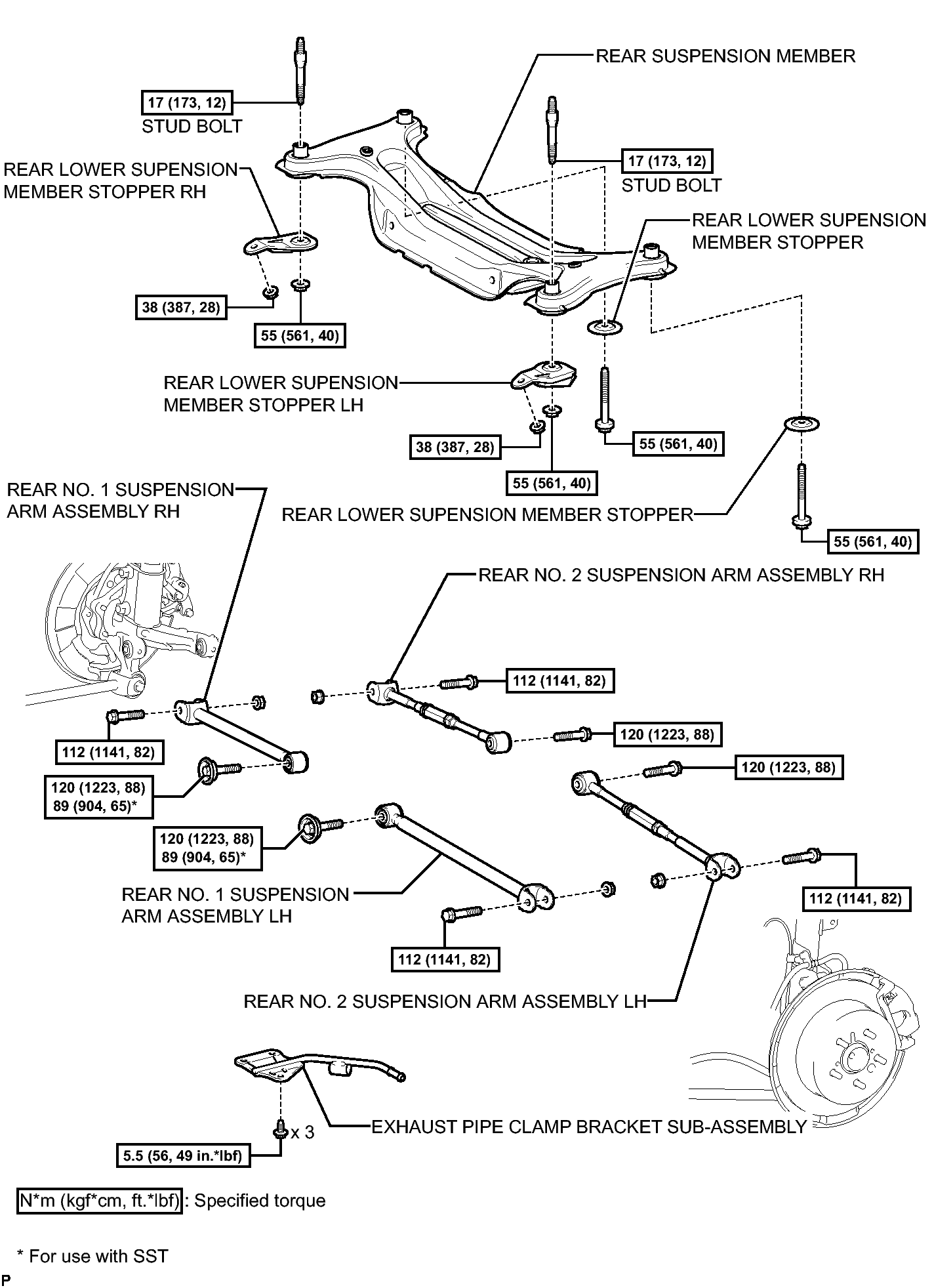

Fig 1: Identifying Rear Suspension Member (For 2WD) Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Suspension Member (For 2WD) Replacement Components With Torque Specifications (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Suspension Member (For 2WD) Replacement Components (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
