REAR STABILIZER BAR (for 4WD): Components: Illustration

Fig 1: Identifying Rear Stabilizer Bar (4WD) Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Stabilizer Bar (For 4WD) Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

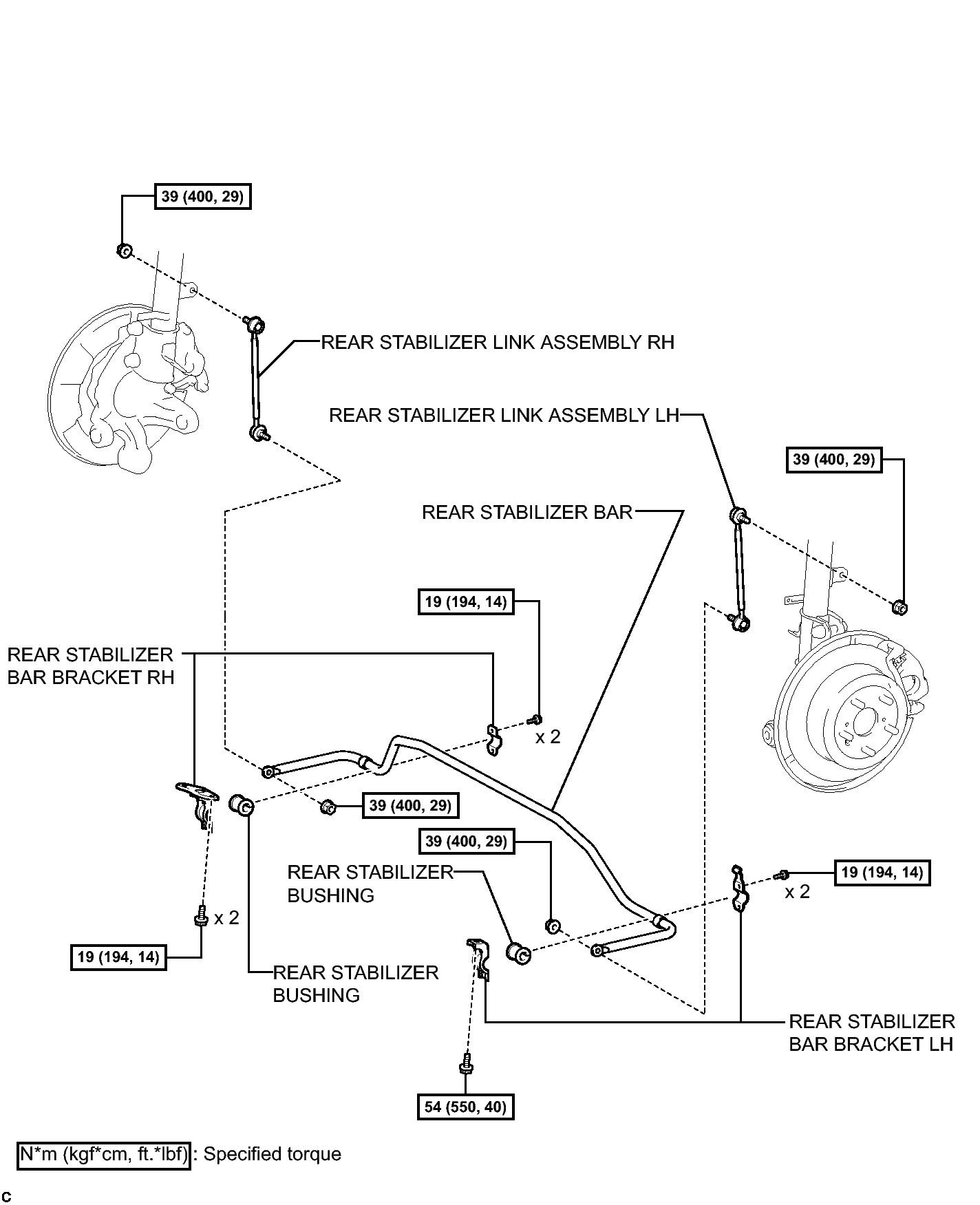

Fig 1: Identifying Rear Stabilizer Bar (For 4WD) Replacement Components With Torque Specifications (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Stabilizer Bar (For 4WD) Replacement Components With Torque Specifications (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
