REAR STABILIZER BAR (for 2WD): Components: Illustration

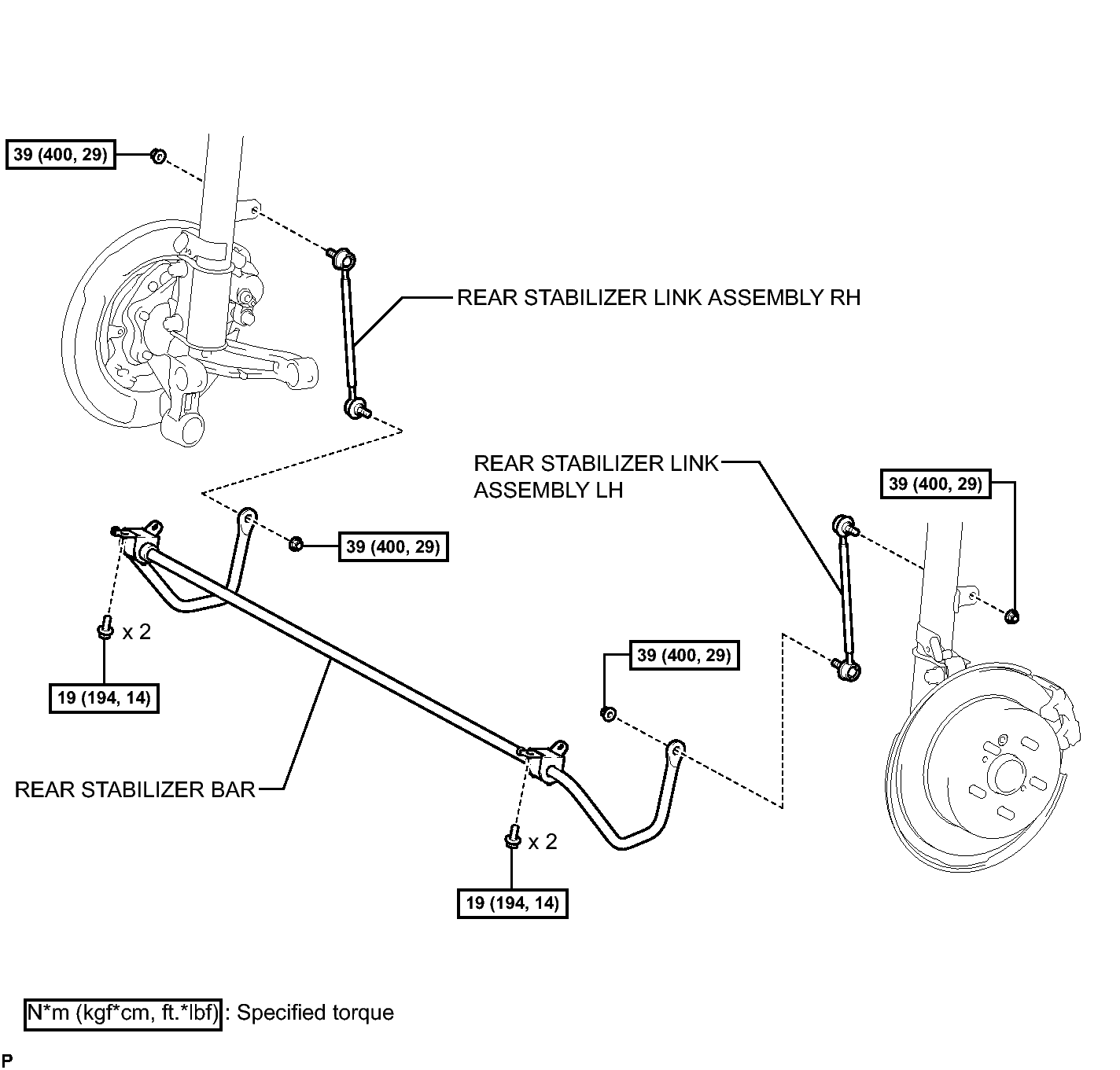

Fig 1: Identifying Rear Stabilizer Bar (2WD) Replacement Components With Torque Specifications (1 Of 2)
GTY204326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

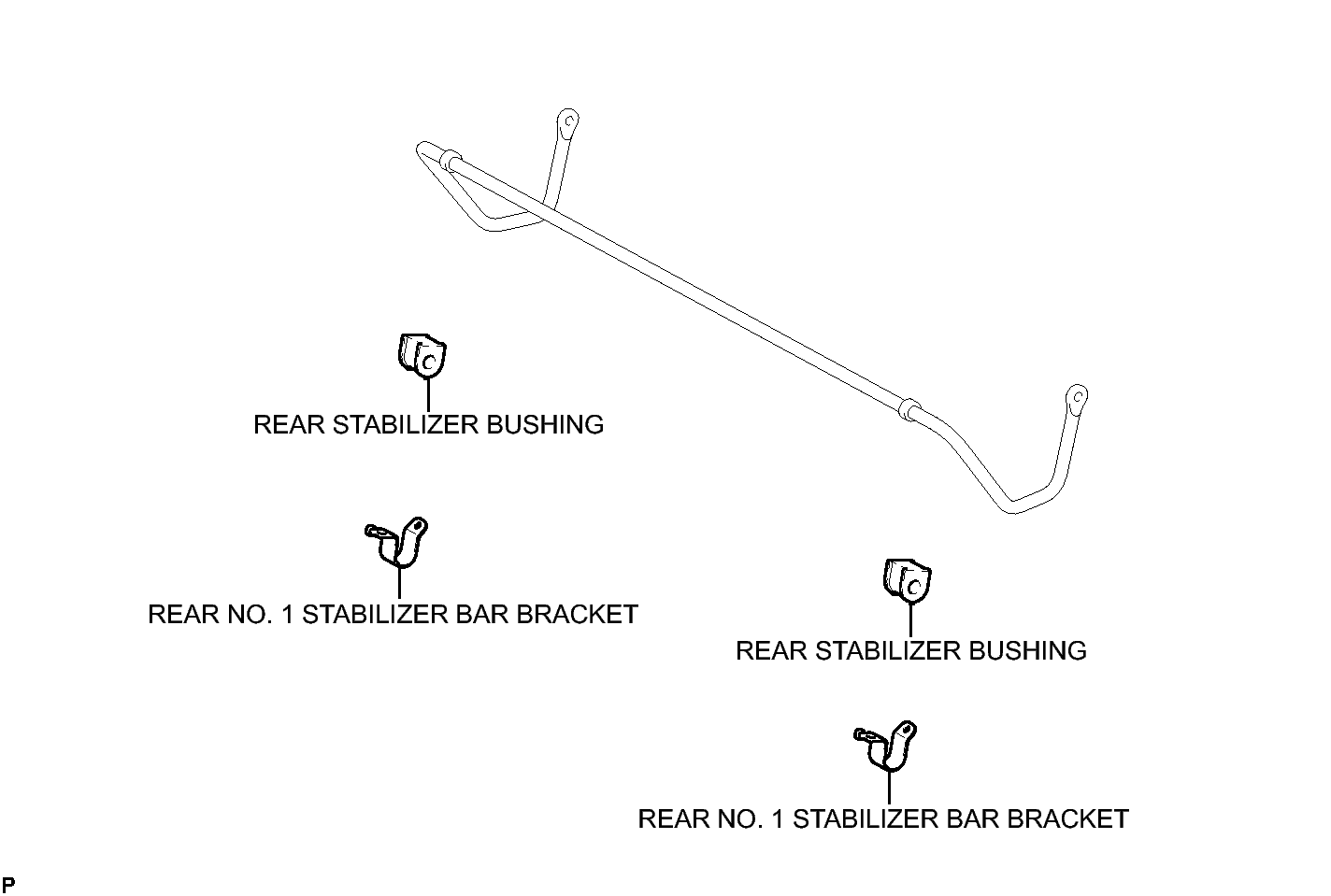

Fig 1: Identifying Rear Stabilizer Bar (2WD) Replacement Components (2 Of 2)
GTY204325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
