REAR LOWER ARM (for 2WD): Installation: Installation

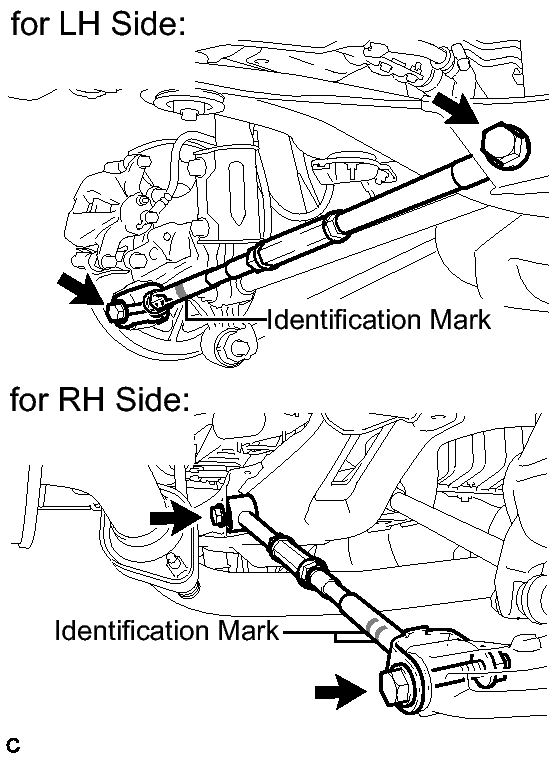

Fig 1: Identifying Rear No. 1 Suspension Arm Assembly Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Temporarily install the rear No. 1 suspension arm assembly to the rear suspension member with the bolt.
   NOTE:

   Ensure that the identification mark faces the rear side of the vehicle.

2. Temporarily install the rear No. 1 suspension arm assembly to the rear axle carrier sub-assembly with the bolt and the nut.
   NOTE:

   Since a stopper nut is used, temporarily tighten the bolt.

Fig 2: Identifying Rear No. 2 Suspension Arm Assembly And Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Temporarily install the rear No. 2 suspension arm assembly to the rear suspension member with the bolt.
   NOTE:

   Ensure that the identification mark faces the rear side of the vehicle.

2. Temporarily install the rear No. 2 suspension arm assembly to the rear axle carrier sub-assembly with the bolt and the nut.
   NOTE:

   Since a stopper nut is used, temporarily tighten the bolt.

1. Jack up the rear axle carrier, placing a wooden block underneath to avoid damage. Apply load to the suspension so that the installed bolt of the rear No. 1 suspension arm (inner side) is horizontally aligned with the center of the rear axle hub.
   Fig 3: Identifying Wooden Block

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   WARNING:

   Do not jack up the rear axle carrier sub-assembly too high as the vehicle may fall.

   NOTE:

   Do not bend the brake dust cover.

   HINT:

   • If the rear drive shaft assembly cannot be positioned horizontally as shown in the illustration even when the rear axle carrier sub-assembly is jacked up, apply additional load to the vehicle such as by having a person sit in the rear seat.
   • Use the same procedures for the RH side and LH side.

1. Using SST and a socket wrench (19 mm), fully tighten the bolt.

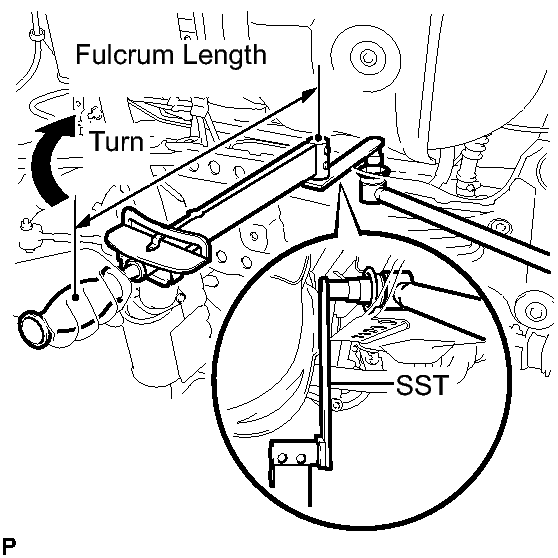

   Fig 4: Tightening Rear No. 1 Suspension Arm Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   without SST

   Torque: 120 N*m (1223 kgf*cm, 88 ft.*lbf)

   with SST

   Torque: 89 N*m (904 kgf*cm, 65 ft.*lbf)

   • SST: 09961-00950
   NOTE:

   • Use a torque wrench with a fulcrum length of 425 mm (16.73 in.).
   • This torque value is effective when SST is parallel to the torque wrench.
   • The final torque must be applied under standard vehicle height conditions.
2. Fully tighten the bolt
   Fig 5: Identifying Stopper Nut & Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 112 N*m (1141 kgf*cm, 82 ft.*lbf)

   NOTE:

   • Since a stopper nut is used, fully tighten the bolt.
   • The final torque must be applied under standard vehicle height conditions.

Fig 6: Identifying Rear No. 2 Suspension Arm Assembly And Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Fully tighten the bolts.

   Bolt (A)

   Torque: 120 N*m (1223 kgf*cm, 88 ft.*lbf)

   Bolt (B)

   Torque: 112 N*m (1141 kgf*cm, 82 ft.*lbf)

   NOTE:

   • Since a stopper nut is used, fully tighten the bolt.
   • The final torque must be applied under standard vehicle height conditions.

1. Install the rear stabilizer link assembly LH to the rear stabilizer bar with the nut.
   Fig 7: Tightening Rear Stabilizer Link Assembly LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

   HINT:

   If the ball joint turns together with the nut, use a hexagon wrench (5 mm) to hold the stud bolt.

HINT:

Perform the same procedure as the LH side.

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

HINT:

Refer to ADJUSTMENT
