Front Lower Suspension Arm: Components: Illustration

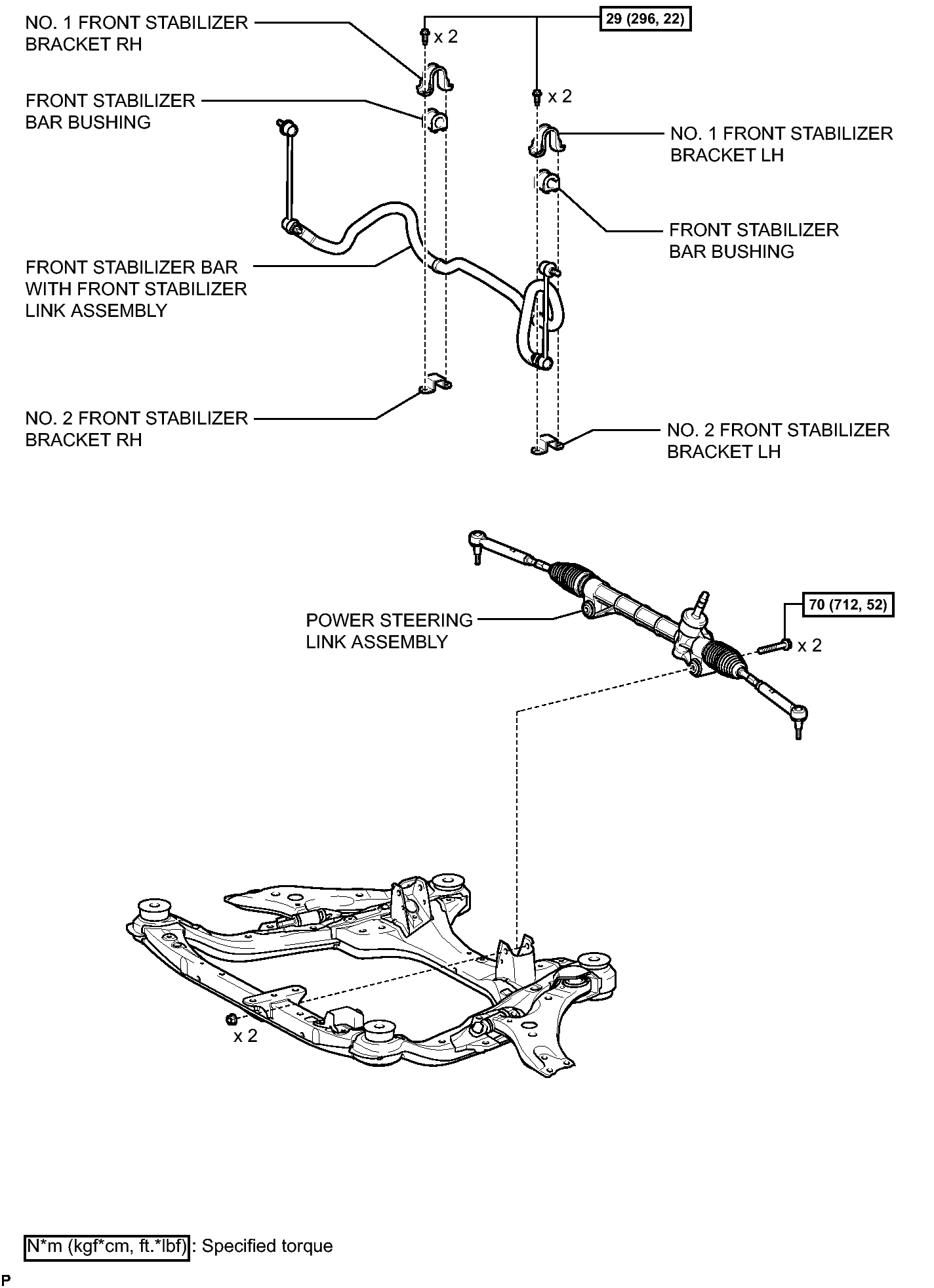

Fig 1: Identifying Front Lower Suspension Arm Replacement Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

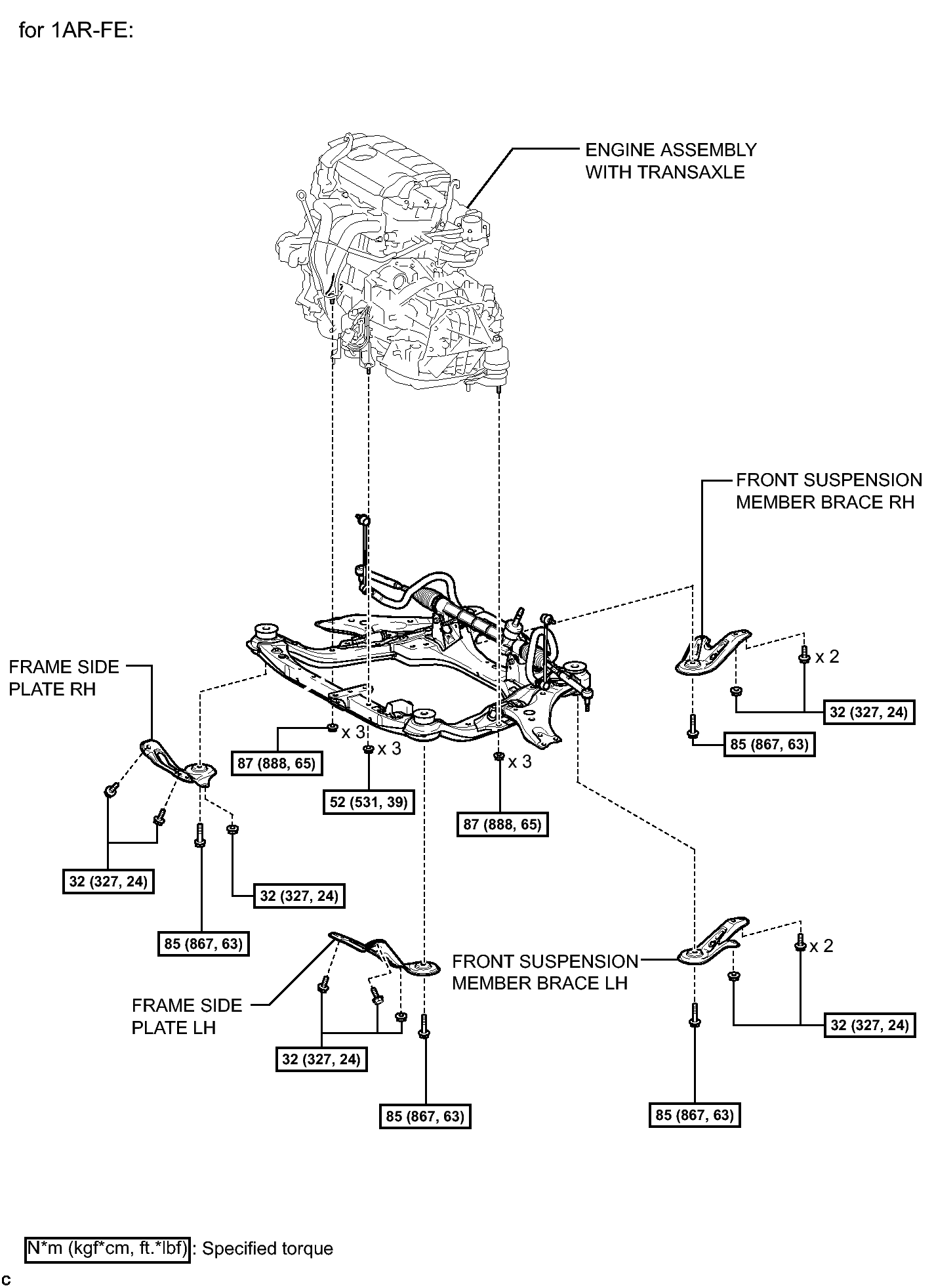

Fig 1: Identifying Front Lower Suspension Arm Replacement Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

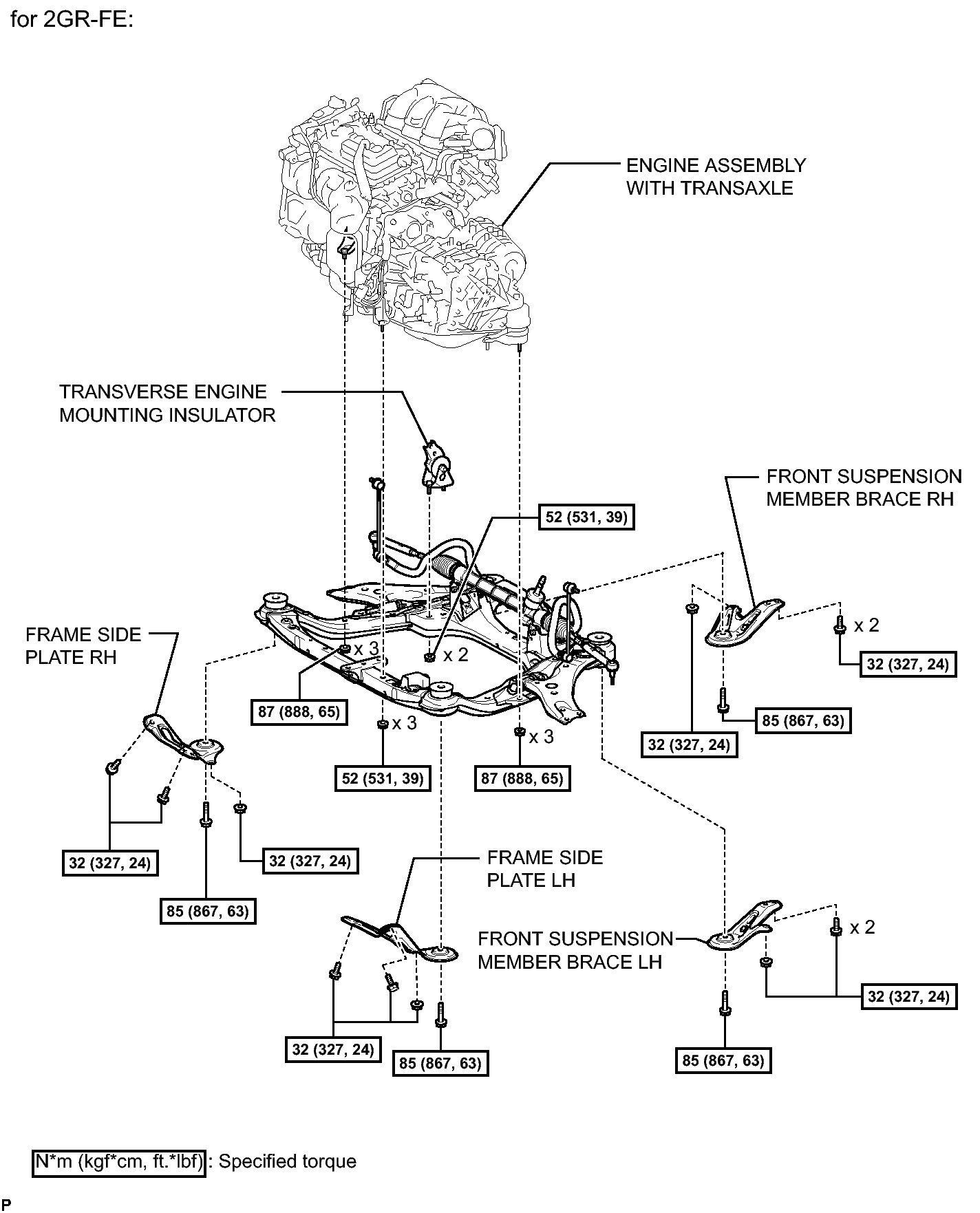

Fig 1: Identifying Front Lower Suspension Arm Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

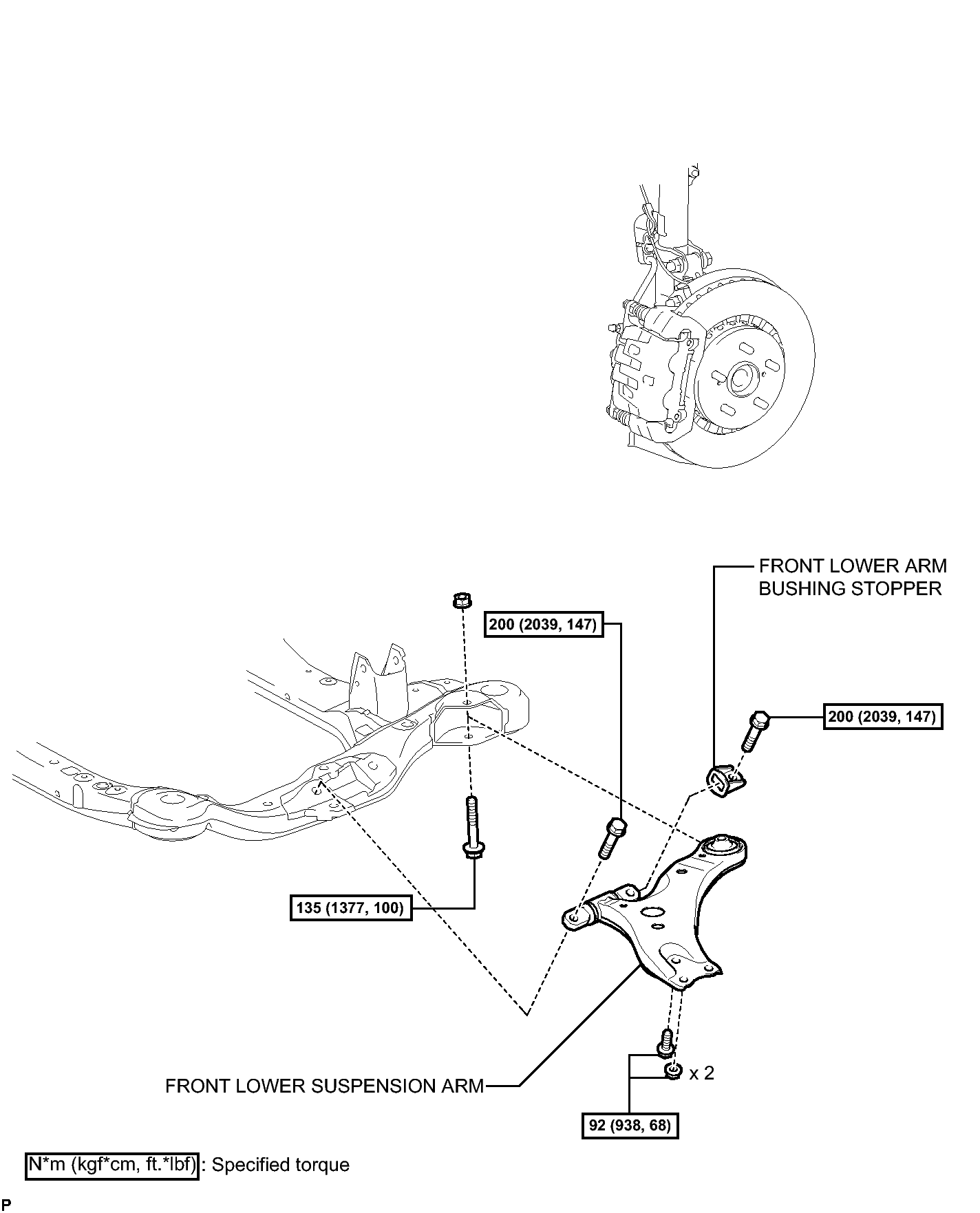

Fig 1: Identifying Front Lower Suspension Arm Replacement Components With Torque Specifications (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Front Lower Suspension Arm Replacement Components With Torque Specifications (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Front Lower Suspension Arm Replacement Components With Torque Specifications (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
